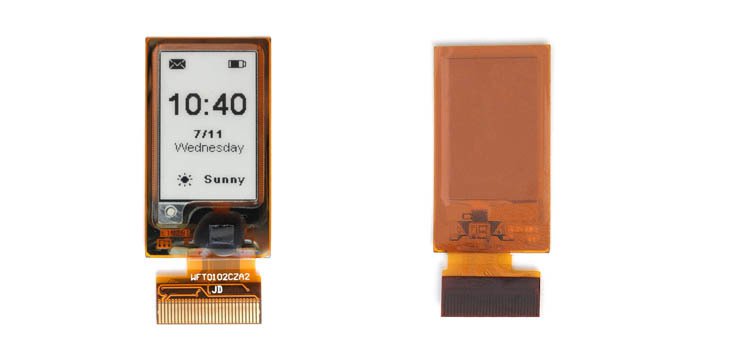

  • GDEW0102I4FC-1.jpg
  • GDEW0102I4FC-2.jpg
  • GDEW0102I4FC-FPC.jpg

1.02 inch Mini flexible e-paper display ACF Thermal Compression Bonding, GDEW0102I4FC

Categroy:

Flexible E-Paper

Keywords:

paper

This is a mini flexible e-paper display, 1.02 inch, with 128x80 resolution, UC8175, SPI interface, and the e-paper screen supports partial refresh.

messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 1.02 inch Mini flexible e-paper display ACF Thermal Compression Bonding, GDEW0102I4FC

    This is a mini flexible e-paper display, 1.02 inch, with 128x80 resolution, UC8175, SPI interface, and the e-paper screen supports partial refresh.

    FEXIBLE 1.02 INCH E-PAPER

    Partial Refresh, UC8175, 128x80 Resolution, Paper-Like Displaying, Low Power, Flexible





    INTRODUCTION

    This is a 1.02 inch mini flexible e-paper display use the flexible substrate as base plate, with 128x80 resolution, SPI interface, the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0102I4FC is perfect for low power devices powered by solar or batteries.

    Usually, the e-paper display is mostly plugged into the FPC, but this 1.02 inch epd screen GDEW0102I4FC is a ACF Thermal Compression bonding method, and the gold finger of the FPC is facing down when the display side is facing up. We can offer the adapter board for test.

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array








    FEATURE

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  It supports small bending because its flexible feature

    ●  It supports partial refresh, the refresh rate is 0.3s/frame

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor







    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32





    Keywords:
    • flexible e paper
  •

    PARAMETERS

    PART NUMBER

    GDEW0102I4FC

    TYPE

    Dot Matrix

    SIZE

    1.02 inch

    IC

    UC8175

    RESOLUTION

    128x80

    OUTLINE SIZE(mm)

    32.57x18.6x0.3

    ACTIVE SIZE(mm)

    21.76x14

    PIXEL PITCH(mm)

    0.175x0.17

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    30 Pin

    MAX GRAYSCALE

    2

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    3

    PARTIAL REFRESH TIME(s)

    0.3







    DRAWING













  •
