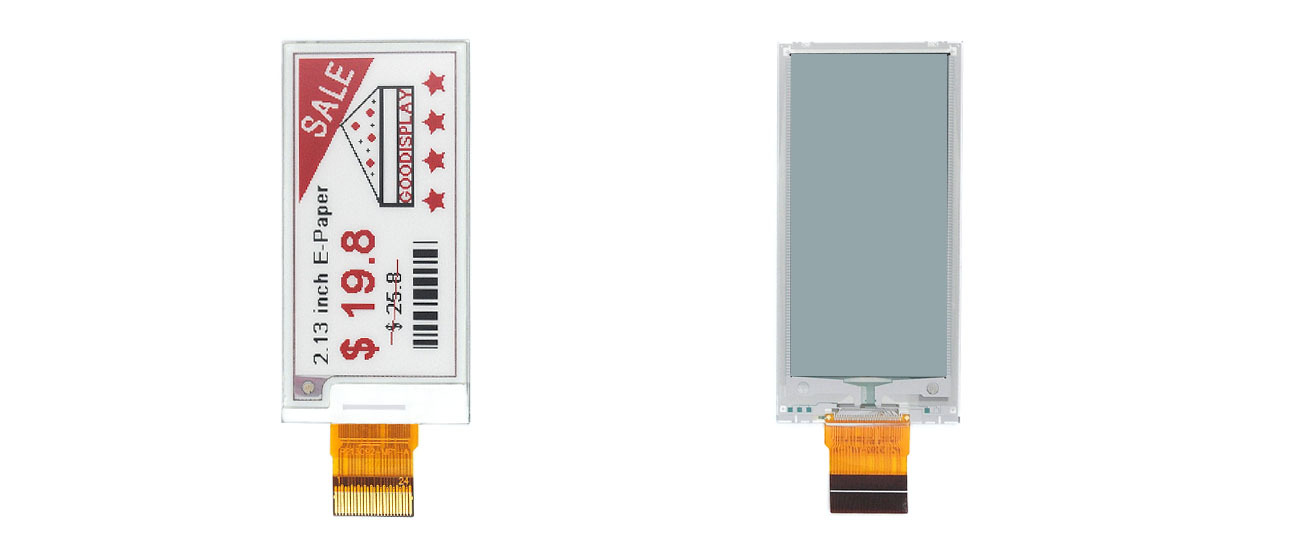

2.13 inch E Ink screen 212x104 UC8521D color epaper display, GDEQ0213Z19

Categroy:

Color E-Paper

Keywords:

paper

This is a color e ink screen, 2.13 inch, with 212x104 resolution, UC8251D, SPI interface.

messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.13 inch E Ink screen 212x104 UC8521D color epaper display, GDEQ0213Z19

    This is a color e ink screen, 2.13 inch, with 212x104 resolution, UC8251D, SPI interface.

    COLOR 2.13 INCH E-PAPER

    Red, UC8251D, 212x104 Resolution, Paper-Like Displaying, Low Power





    INTRODUCTION

    This is a 2.13 inch color E Ink display with 212x104 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink screen GDEQ0213Z19 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software







    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful








    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.



    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  •

    PARAMETERS

    PART NUMBER

    GDEQ0213Z19

    TYPE

    Dot Matrix

    SIZE

    2.13 inch

    IC

    UC8251D

    RESOLUTION

    212X104

    OUTLINE SIZE(mm)

    59.2x29.2x0.801

    ACTIVE SIZE(mm)

    23.712x48.548

    PIXEL PITCH(mm)

    0.228x0.229

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    16

    POWER CONSUMPTION OF THE REFRESH(mW)

    9.24

    STANDBY POWER CONSUMPTION (mW)

    0.0033

    FRONT LIGHT

    Optional

    2.13 Inch E-paper Display Related Products List >>





    DRAWING
