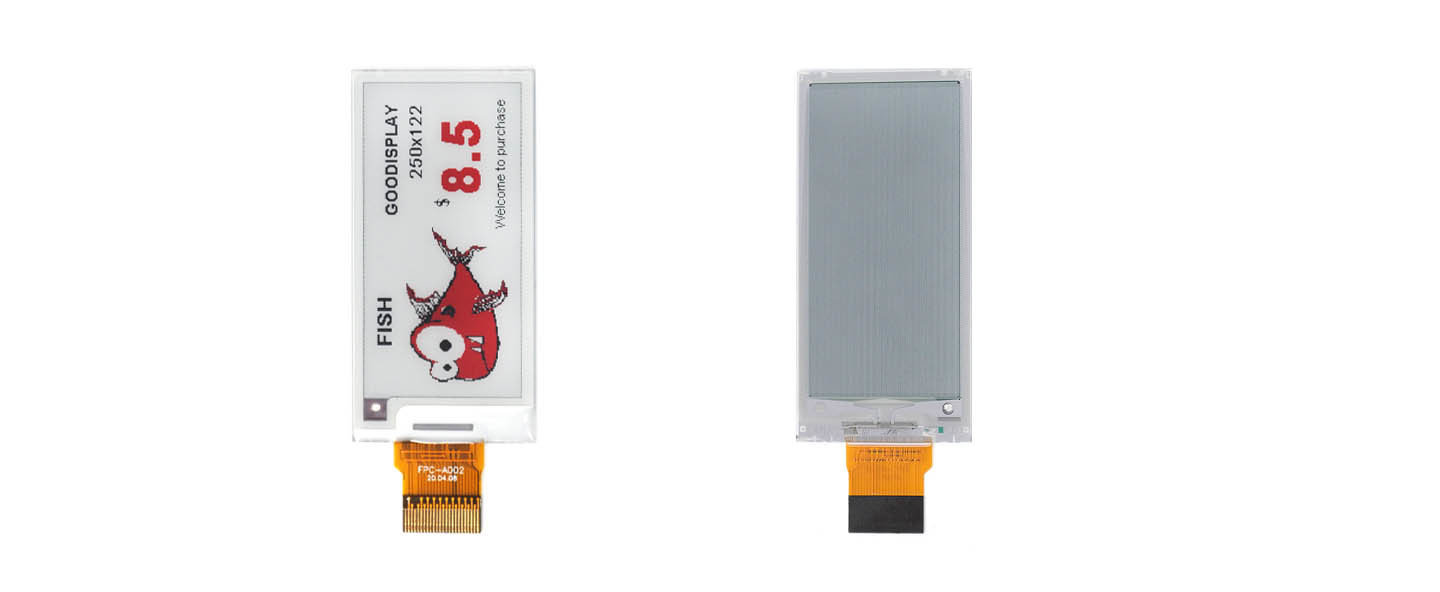

2.13 inch color E Ink 250x122 HD e-paper display module, GDEY0213Z98

Categroy:

Color E-Paper

Keywords:

paper

This is a color eink, 2.13 inch with 250x122 resolution, SSD1680, SPI interface.

messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.13 inch color E Ink 250x122 HD e-paper display module, GDEY0213Z98

    This is a color eink, 2.13 inch with 250x122 resolution, SSD1680, SPI interface.

    COLOR 2.13 INCH E-PAPER

    Red, SSD1680, 250x122 Resolution, Paper-Like Displaying, Low Power





    INTRODUCTION

    This is a 2.13 inch color E Ink display with 250x122 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink screen GDEY0213Z98 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This E Ink display module DOES NOT support partial updates

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software





    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful








    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  •

    PARAMETERS

    PART NUMBER

    GDEY0213Z98

    TYPE

    Dot Matrix

    SIZE

    2.13 inch

    IC

    SSD1680

    RESOLUTION

    250x122

    OUTLINE SIZE(mm)

    59.2x29.2x1.0

    ACTIVE SIZE(mm)

    48.55x23.7046

    PIXEL PITCH(mm)

    0.1943x0.1942

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    14

    POWER CONSUMPTION OF THE REFRESH(mW)

    5.4

    STANDBY POWER CONSUMPTION (mW)

    0.003

    FRONT LIGHT

    Optional

    2.13 Inch E-paper Display Related Products List >>





    DRAWING





  •
