10.2inch large e-paper 960x640 resolution SPI display, GDEQ102T90

Categroy:

Large E-Paper

Keywords:

paper

This is a large e-paper display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black and white content.

messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 10.2inch large e-paper 960x640 resolution SPI display, GDEQ102T90

    This is a large e-paper display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black and white content.

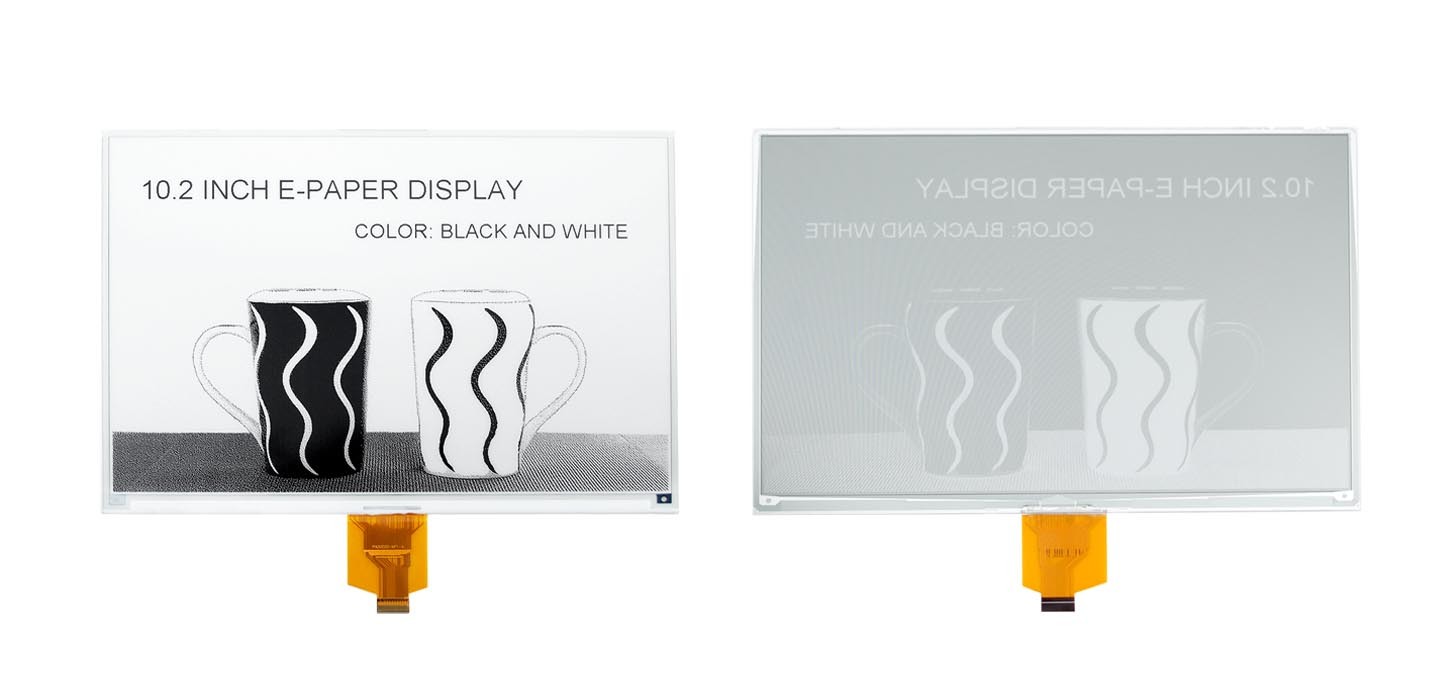

    10.2 INCH E-PAPER

    Large, SSD1677, 960x640 Resolution, Paper-Like Displaying, Low Power







    INTRODUCTION

    This is a large e-paper display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e paper display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This epaper display GDEQ102T90 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software






    FEATURE

    ●  Versatile. Use in portrait or landscape format.

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor.

    ●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays







    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.



    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32





    Keywords:
    • 9.7 inch e-paper display resolution 1200x825 big size parallel panel
  •

    PARAMETERS

    PART NUMBER

    GDEQ102T90

    TYPE

    Dot Matrix

    SIZE

    10.2 inch

    IC

    SSD1677

    RESOLUTION

    960x640

    OUTLINE SIZE(mm)

    224x197x0.912

    ACTIVE SIZE(mm)

    215.52x143.68

    PIXEL PITCH(mm)

    0.2245x0.2245

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    COLOR

    Black, White

    INTERFACE

    SPI

    FULL REFRESH(s)

    4

    POWER CONSUMPTION OF THE REFRESH(mW)

    49.5

    STANDBY POWER CONSUMPTION (mW)

    0.0066









    DRAWING



  •
