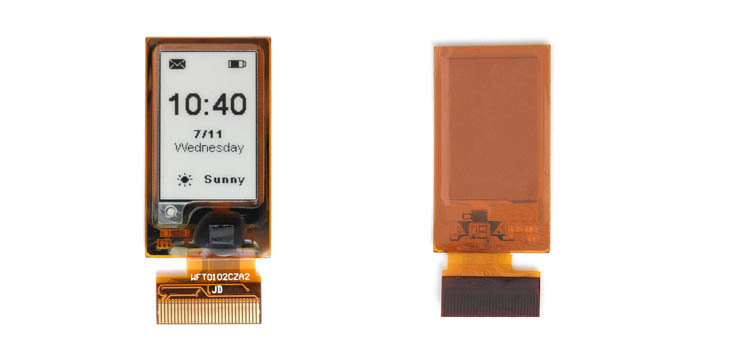

1.02 inch E Ink display small mini flexible E Ink screen module, GDEW0102I3F

Categroy:

Small E-Paper

Flexible E-Paper

This is a 1.02 inch E Ink display, with 128x80 resolution, UC8175, SPI interface, and small mini flexible E Ink screen module supports partial refresh.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 1.02 inch E Ink display small mini flexible E Ink screen module, GDEW0102I3F

    This is a 1.02 inch E Ink display, with 128x80 resolution, UC8175, SPI interface, and small mini flexible E Ink screen module supports partial refresh.

    FLEXIBLE 1.02 INCH E-PAPER

    Partial Refresh, UC8175, 128x80 Resolution, Paper-Like Displaying, Low Power, Flexible, Support small bending







    INTRODUCTION

    This is a 1.02 inch flexible E Ink display use the flexible substrate as base plate, with 128x80 resolution, SPI interface, the e-ink display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these E Ink modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink screen GDEW0102I3F is perfect for low power devices powered by solar or batteries.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software






    FEATURE

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  It supports small bending because its flexible feature

    ●  It supports partial refresh, the refresh rate is 0.3s/frame

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor







    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.



    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32





    Keywords:
    • 1.02 inch flexible e-paper display small mini e-ink screen module
  •

    PARAMETERS

    PART NUMBER

    GDEW0102I3F

    TYPE

    Dot Matrix

    SIZE

    1.02 inch

    IC

    UC8175

    RESOLUTION

    128x80

    OUTLINE SIZE(mm)

    32.57x18.6x0.3

    ACTIVE SIZE(mm)

    21.76x14

    PIXEL PITCH(mm)

    0.175x0.17

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    30 Pin

    MAX GRAYSCALE

    2

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    3

    PARTIAL REFRESH TIME(s)

    0.3

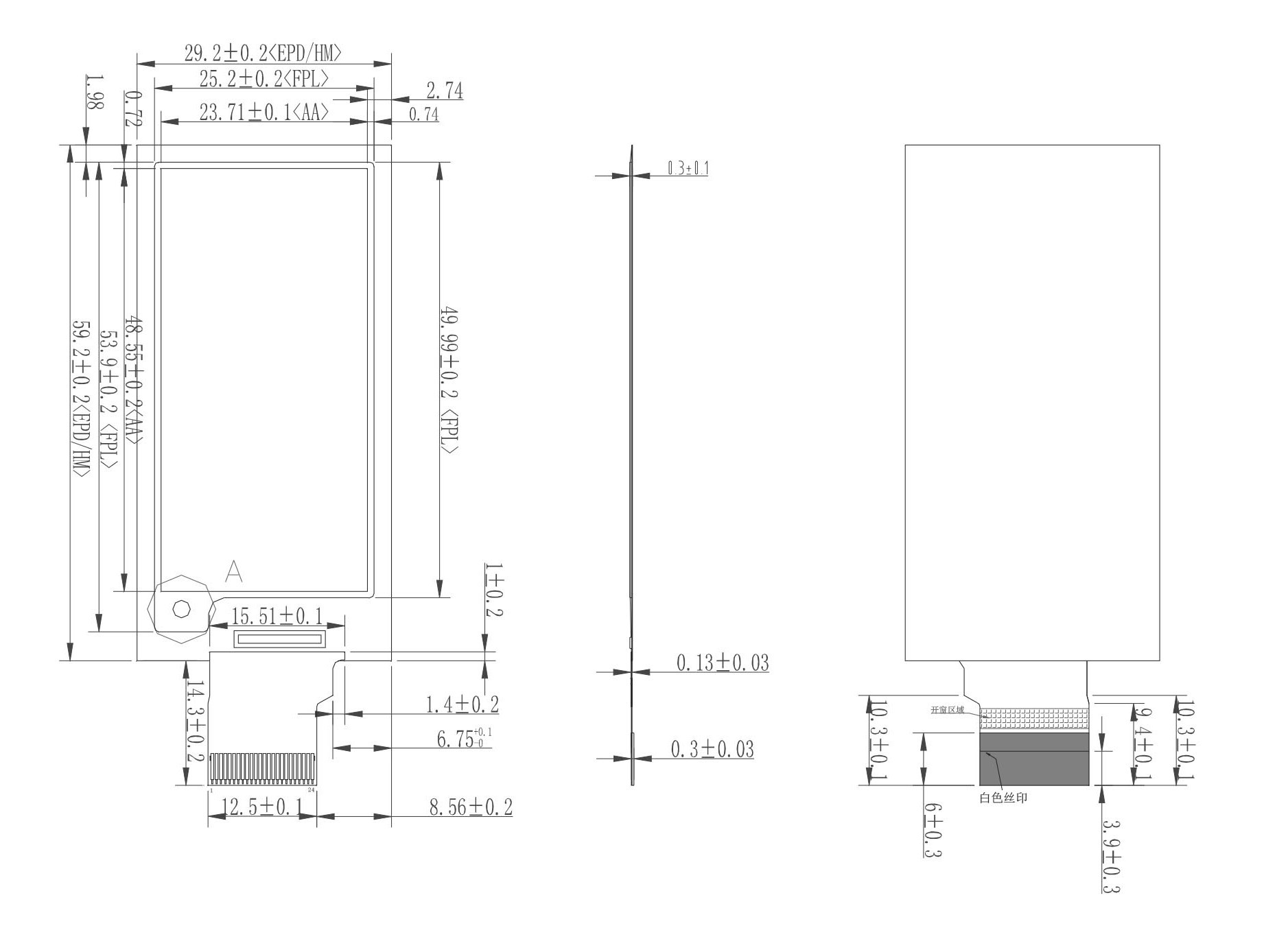

    DRAWING









  •
