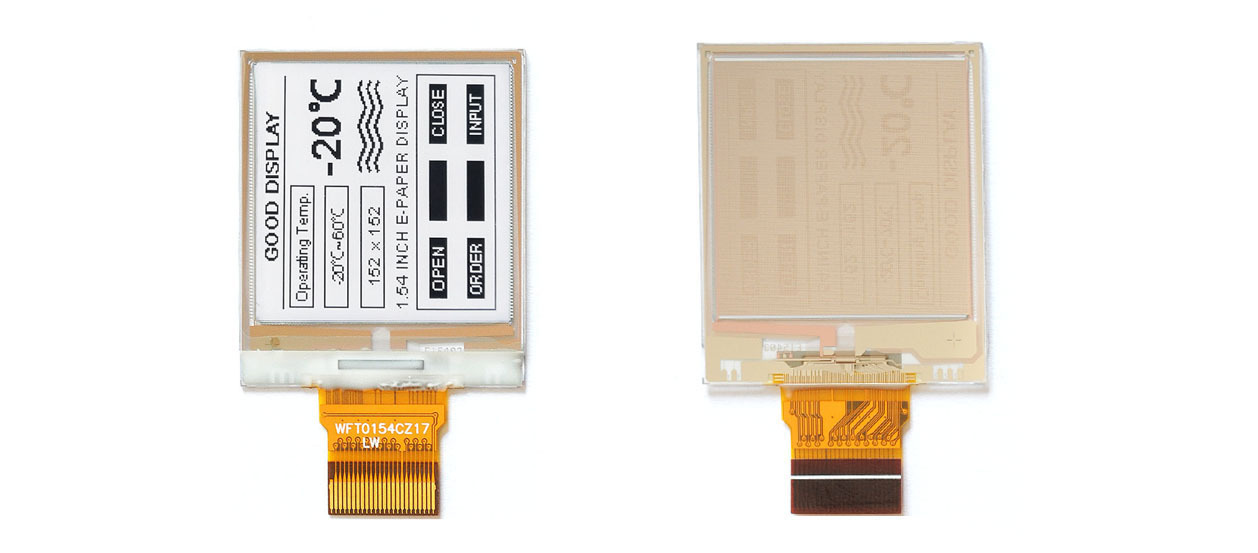

1.54 inch DES e-paper display wide working temperature, GDEW0154M10

Categroy:

Monochrome DES

This is a e-paper display, 1.54 inch, with 152x152 resolution, UC8151D, SPI interface, this e-paper has high contrast ratio.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 1.54 inch DES e-paper display wide working temperature, GDEW0154M10

    This is a e-paper display, 1.54 inch, with 152x152 resolution, UC8151D, SPI interface, this e-paper has high contrast ratio.

    DES 1.54 INCH E-PAPER

     DES Technology, UC8151D, 152x152 Resolution, Paper-Like Displaying, Low Power, High Contrast







    INTRODUCTION

    This is a DES (what is DES?) 1.54 inch e-paper display with 152x152 resolution, SPI interface, and the DES e-paper display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries.

    We could provide Front light and Touch screen for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software






    FEATURE

    ●  Black and white monochrome is easy to read.

    ●  Versatile. Use in portrait or landscape format.

    ●  Contrast Ratio is higher than normal e-paper display.

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor.

    ●  Wide operating temperature range: -10℃~60℃







    FULL REFRESH TIME AT DIFFERENT TEMPTERAURE

    TEMPERATURE

    DRIVING TIME(s)

    -10℃~0℃

    30.58

    0℃~10℃

    9.86

    10℃~20℃

    4.74

    20℃~30℃

    2.8

    30℃~60℃

    2.9







    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.



    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



    Keywords:
    • 1.54 inch DES e-paper display wide working temperature 152X152 resolution outdoor EPD
  •

    PARAMETERS

    PART NUMBER

    GDEW0154M10

    TECHNOLOGY

    DES

    IC

    UC8151D

    RESOLUTION

    152x152

    OUTLINE SIZE(mm)

    31.8x37.32x1.02

    ACTIVE SIZE(mm)

    27.512x27.512

    PIXEL PITCH(mm)

    0.181x0.181

    OPERATING TEMP.

    -10℃~60℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    3

    POWER CONSUMPTION OF THE REFRESH(mW)

    18

    STANDBY POWER CONSUMPTION (mW)

    0.0165

    FRONT LIGHT, TOUCH SCREEN

    Optional

    1.54 Inch E-paper Display Related Products List >>





    DRAWING









  •








    Contrast video between DES technology epaper and E-ink technology epaper:
