1.54 inch flexible partial refresh E Ink display panel 4 Grayscale, GDEW0154I9FD
Categroy:
Flexible E-Paper
- Description
- Specification
- Video
-
- Commodity name: 1.54 inch flexible partial refresh E Ink display panel 4 Grayscale, GDEW0154I9FD
This is a flexible e ink display, 1.54 inch, with 152x152 resolution, UC8151D, SPI interface, and the e ink panel supports partial refresh and 4 grayscale.

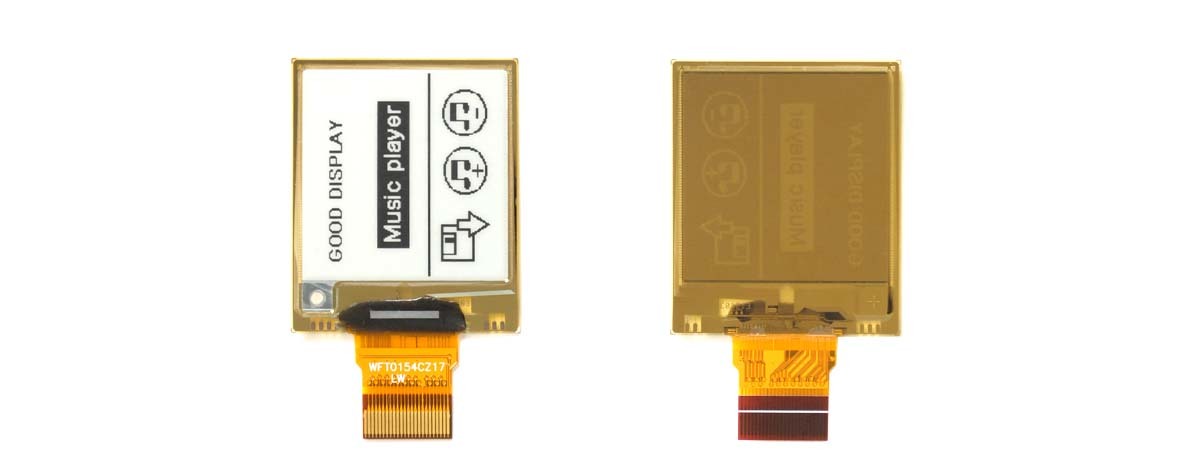

FLEXIBLE 1.54 INCH E-PAPER
Flexible, Partial Update, UC8151D, 152x152 Resolution, Paper-Like Displaying, Low Power, 4 Grayscale
INTRODUCTION
This is a 1.54 inch flexible E Ink display which use the flexible substrate as base plate, with 152x152 resolution, SPI interface, and the e-ink display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these eink display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This eink display GDEW0154I9FD is perfect for low power devices powered by solar or batteries.
Sample code and datasheet are under the Datasheets & Files section.
Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software
FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● Ultra-thin. It is thinner than the normal electronic paper display
● I2C Signal Master Interface to read external temperature sensor.
DEVELOPMENT PLATFORM AVAILABEL
We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.
STM32 Arduino UNO ESP8266
Raspberry Pi ESP32 Keywords:- 1.54 inch small flexible partial refresh eink screen 4 Grayscale epaper display panel
-
PARAMETERS
PART NUMBER
GDEW0154I9FD
TYPE
Dot Matrix
SIZE
1.54 inch
IC
UC8151D
RESOLUTION
152x152
OUTLINE SIZE(mm)
31.8x37.32x0.34
ACTIVE SIZE(mm)
27.51x27.51
PIXEL PITCH(mm)
0.181x0.181
OPERATING TEMP.
0℃~50℃
STORAGE TEMP.
-25℃~70℃
CONNECTOR
24 Pin FPC
MAX GRAYSCALE
4
COLOR
Black, White
INTERFACE
SPI
FULL REFRESH(s)
3
PARTIAL REFRESH TIME(s)
0.3
POWER CONSUMPTION OF THE REFRESH(mW)
26.4
STANDBY POWER CONSUMPTION (mW)
0.0165
1.54 Inch E-paper Display Related Products List >>

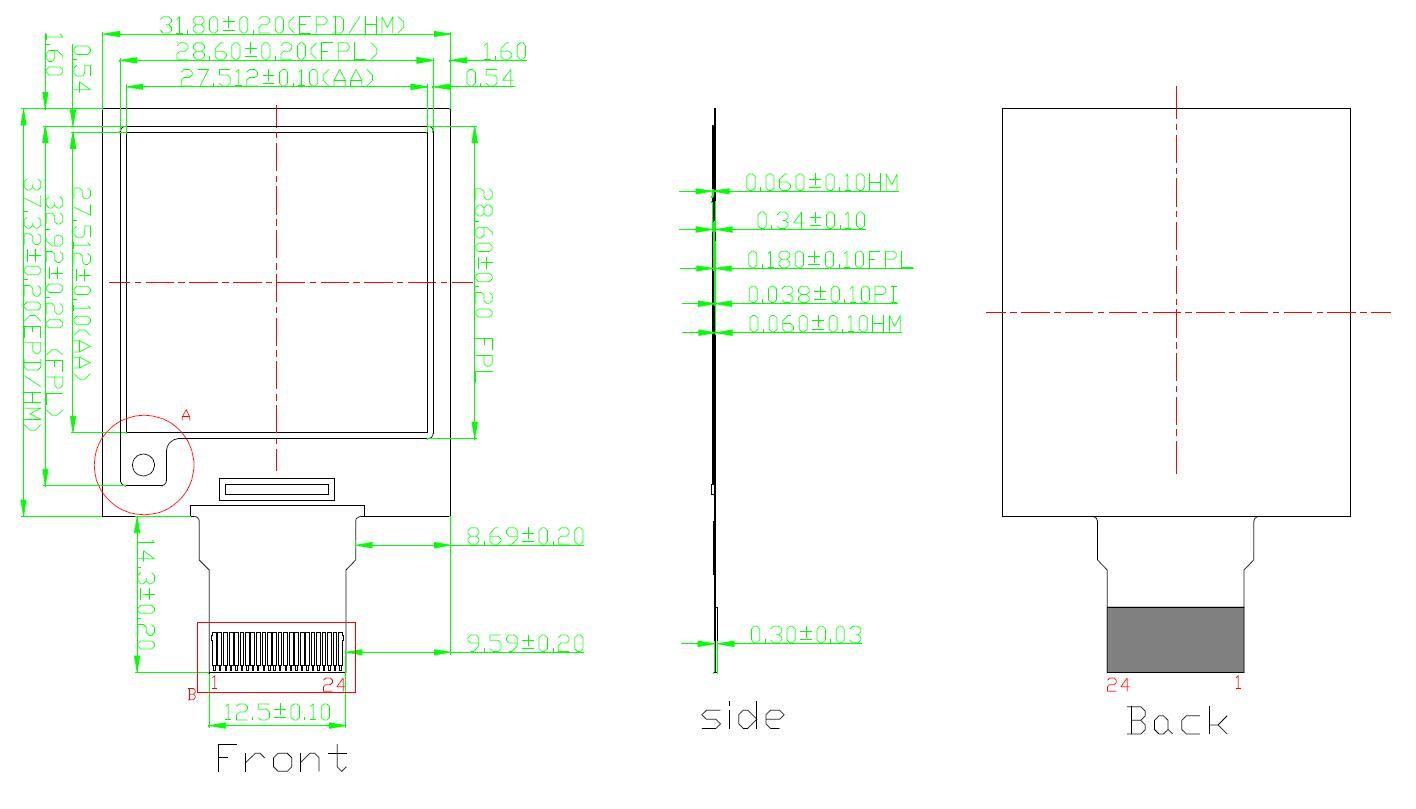

DRAWING
-
