2.13 inch e-paper display UC8151D flexible partial refresh 4 Grayscale, GDEW0213I5FD

Categroy:

Small E-Paper

Flexible E-Paper

This is a flexible e-paper display, 2.13 inch, with 212x104 resolution, UC8151D, SPI interface. This e-paper also supports 4 grayscale and partial refresh.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.13 inch e-paper display UC8151D flexible partial refresh 4 Grayscale, GDEW0213I5FD

    This is a flexible e-paper display, 2.13 inch, with 212x104 resolution, UC8151D, SPI interface. This e-paper also supports 4 grayscale and partial refresh.

    FLEXIBLE 2.13 INCH E-PAPER

    Flexible, Partial Update, UC8151D, 212x104 Resolution, Paper-Like Displaying, Low Power, 4 Grayscale





    INTRODUCTION

    This is a UC8151D 2.13 inch flexible e-paper display use the flexible substrate as base plate, with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0213I5FD is perfect for low power devices powered by solar or batteries.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software






    FEATURE

    ●  Support 4 Grayscale

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  It supports small bending because its flexible feature

    ●  It supports partial refresh, the refresh rate is 0.3s/frame

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor







    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

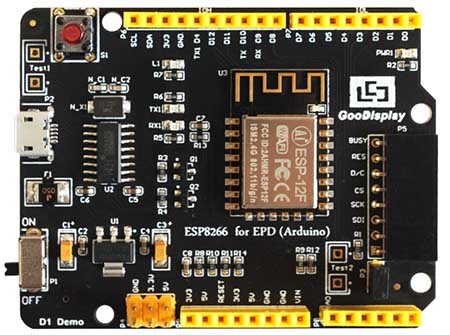

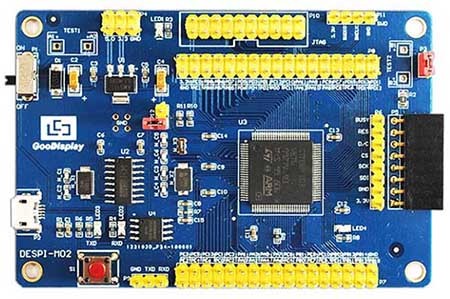

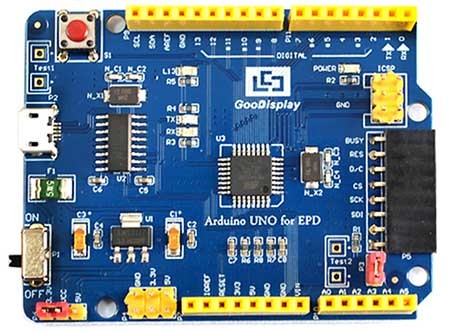

    STM32 Arduino UNO ESP8266

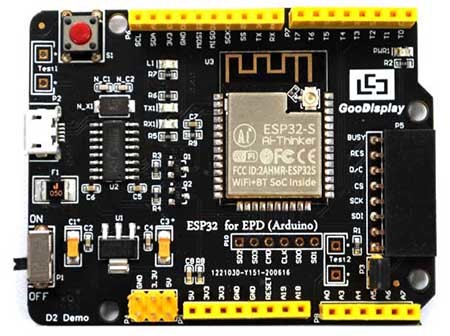

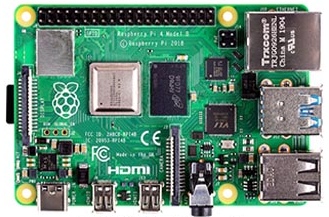

    Raspberry Pi ESP32





    Keywords:
    • 2.13 inch e-paper display flexible partial refresh 4 Grayscale eink epaper
  •

    PARAMETERS

    PART NUMBER

    GDEW0213I5FD

    TYPE

    Dot Matrix

    SIZE

    2.13 inch

    IC

    UC8151D

    RESOLUTION

    212x104

    OUTLINE SIZE(mm)

    59.2x29.2x0.3

    ACTIVE SIZE(mm)

    48.55x23.71

    PIXEL PITCH(mm)

    0.229x0.228

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    4

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    3

    PARTIAL REFRESH TIME(s)

    0.3

    POWER CONSUMPTION OF THE REFRESH(mW)

    26.4

    STANDBY POWER CONSUMPTION (mW)

    0.0165

    2.13 Inch E-paper Display Related Products List >>

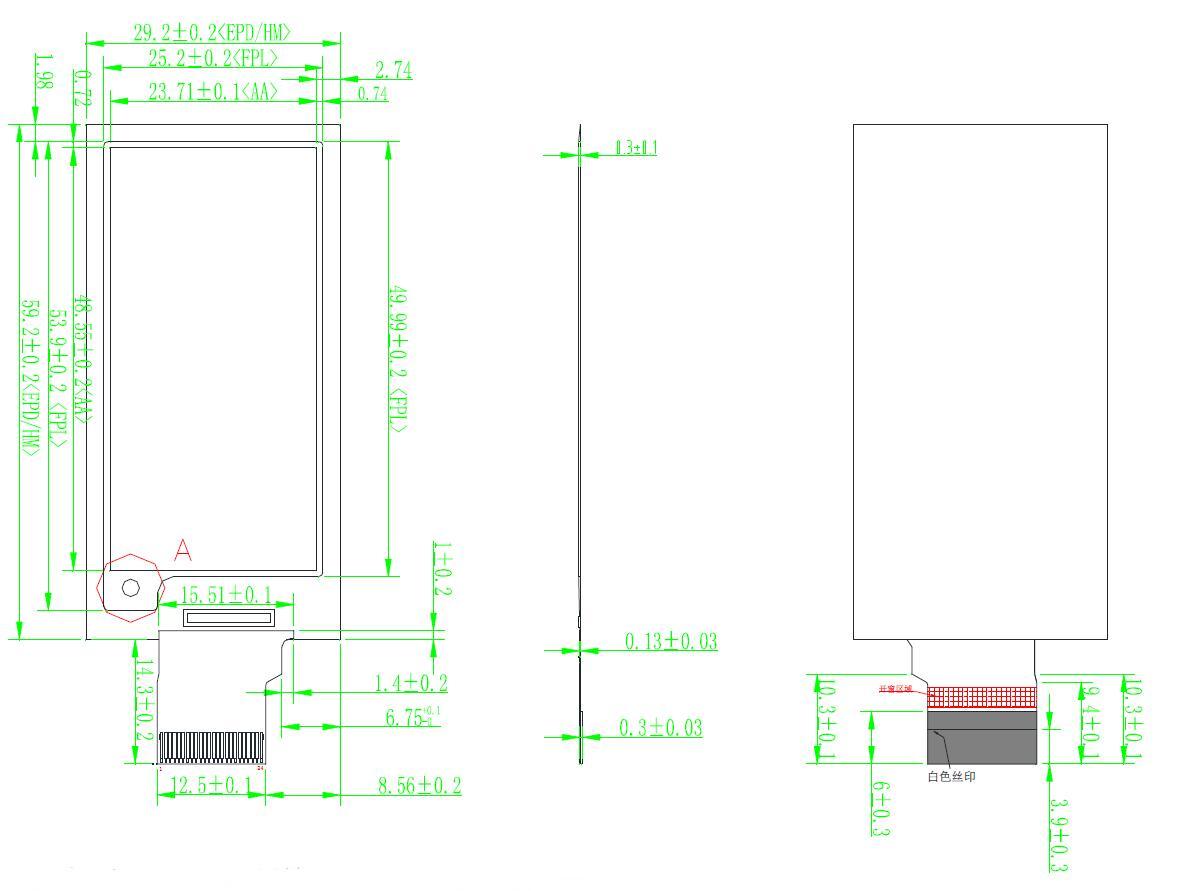

    DRAWING







  •
