4.2 inch three colors e-paper display red electronic paper screen module, GDEH042Z96

Categroy:

Color E-Paper

This is a 4.2 inch e-paper display, three color, with 400x300 resolution, SSD1619, SPI interface.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 4.2 inch three colors e-paper display red electronic paper screen module, GDEH042Z96

    This is a 4.2 inch e-paper display, three color, with 400x300 resolution, SSD1619, SPI interface.

    INTRODUCTION



    This is a 4.2 inch color e-paper display with 400x300 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

    This 4.2 inch e-ink display GDEH042Z96 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

    We could provide front light, touch screen and other accessories for you.

    Sample code and datasheet are under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display.

    * This e-ink display module DOES NOT support partial updates

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software




    FEATURE

    ● Versatile. Use in portrait or landscape format

    ● Bistable. (Will continue to display with no power source)

    ● I2C Signal Master Interface to read external temperature sensor

    ● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEH042Z96

    SIZE

    4.2 inch

    TYPE

    Dot Matrix

    IC

    SSD1619

    RESOLUTION

    400x300

    OUTLINE SIZE(mm)

    91x77x1.25

    ACTIVE SIZE(mm)

    84.8x63.6

    PIXEL PITCH(mm)

    0.212x0.212

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    0℃~40℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    16

    POWER CONSUMPTION OF THE REFRESH(mW)

    26.4

    STANDBY POWER CONSUMPTION (mW)

    0.0165

    Related Product List >>

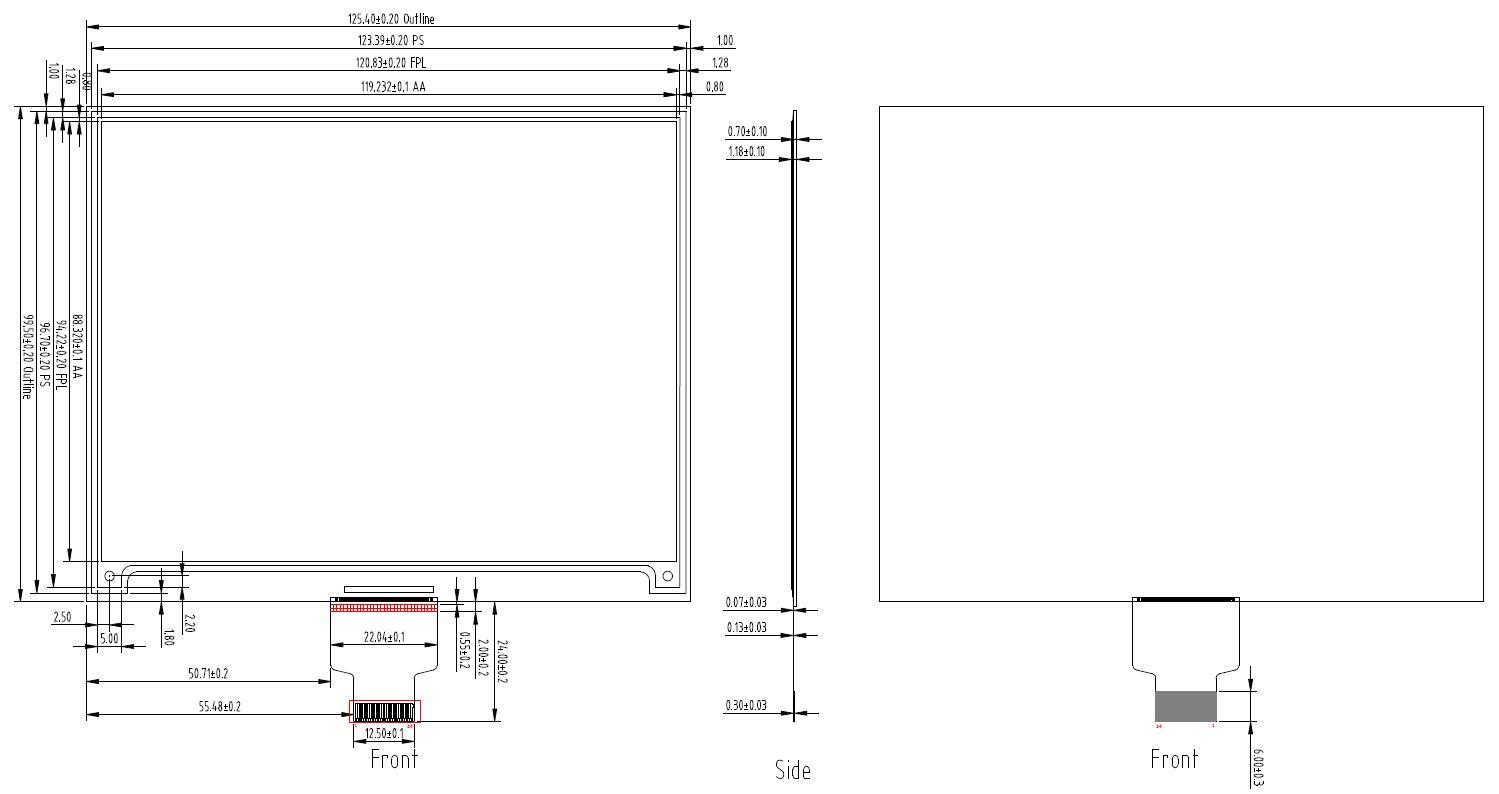

    DRAWING







  •
