2.13 inch Color E-ink Display NFC-Powered E-paper Screen ESL, No Battery, GDN0213R

Categroy:

NFC Tag

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.13 inch Color E-ink Display NFC-Powered E-paper Screen ESL, No Battery, GDN0213R

    INTRODUCTION

    GDN0213R is a 2.13 inch color e-ink display NFC-powered Electronic Shelf Label, adopts novel passive NFC technology, no battery required, no more battery life trouble. Use protective ABS case, beautiful and light weight, supports personalized customization. Refreshed By Smartphone, Comes With Android APP, As Easy As Swiping A Credit Card!

    * Note: This GDN0213R Software can only be applied to Android phones.




    FEATURE

    No Battery Required, No More Battery Life Trouble

    ●  It does not contain a power supply such as a battery, which is suitable for applications where the power supply is restricted

    ●  The displayed content can be customized and controlled by the user at any time through the smart phone, which is convenient and flexible.

    ●  Suitable for equipment labels, shelf labels, information storage, etc.

    ●  With ABS plastic housing with better strength and toughness

    ●  Provides a matching Android APP to help users edit and manage the display content of the ink screen

    ●  Provide complete supporting information manual







    HOW TO USE

    Use A Smart Android Phone With NFC Function, Or An NFC Reader

    1. Download the APP,scan the QR code with a browser

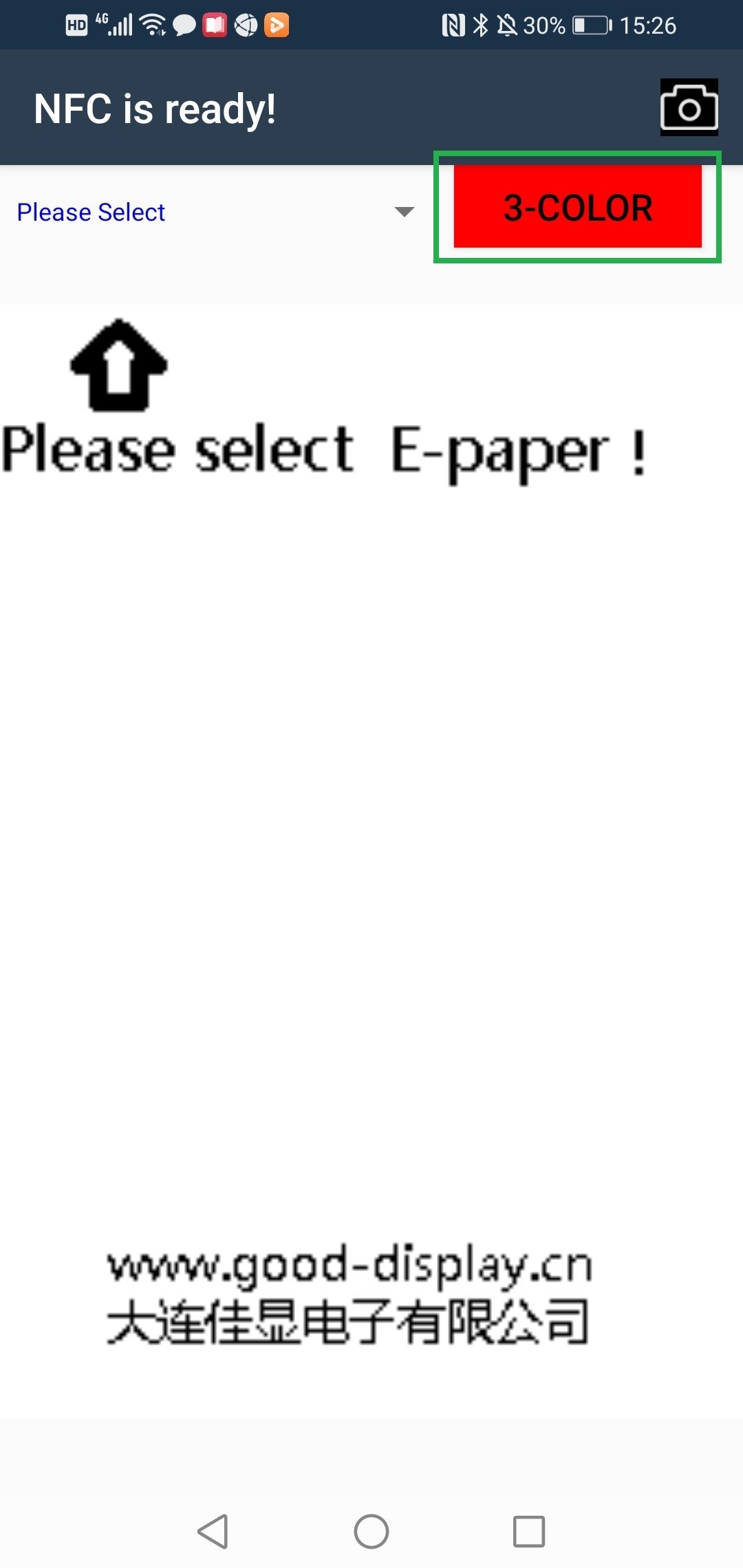

    2. Select mode as 3-COLOR








    3. Select model name GDEH0213Z98

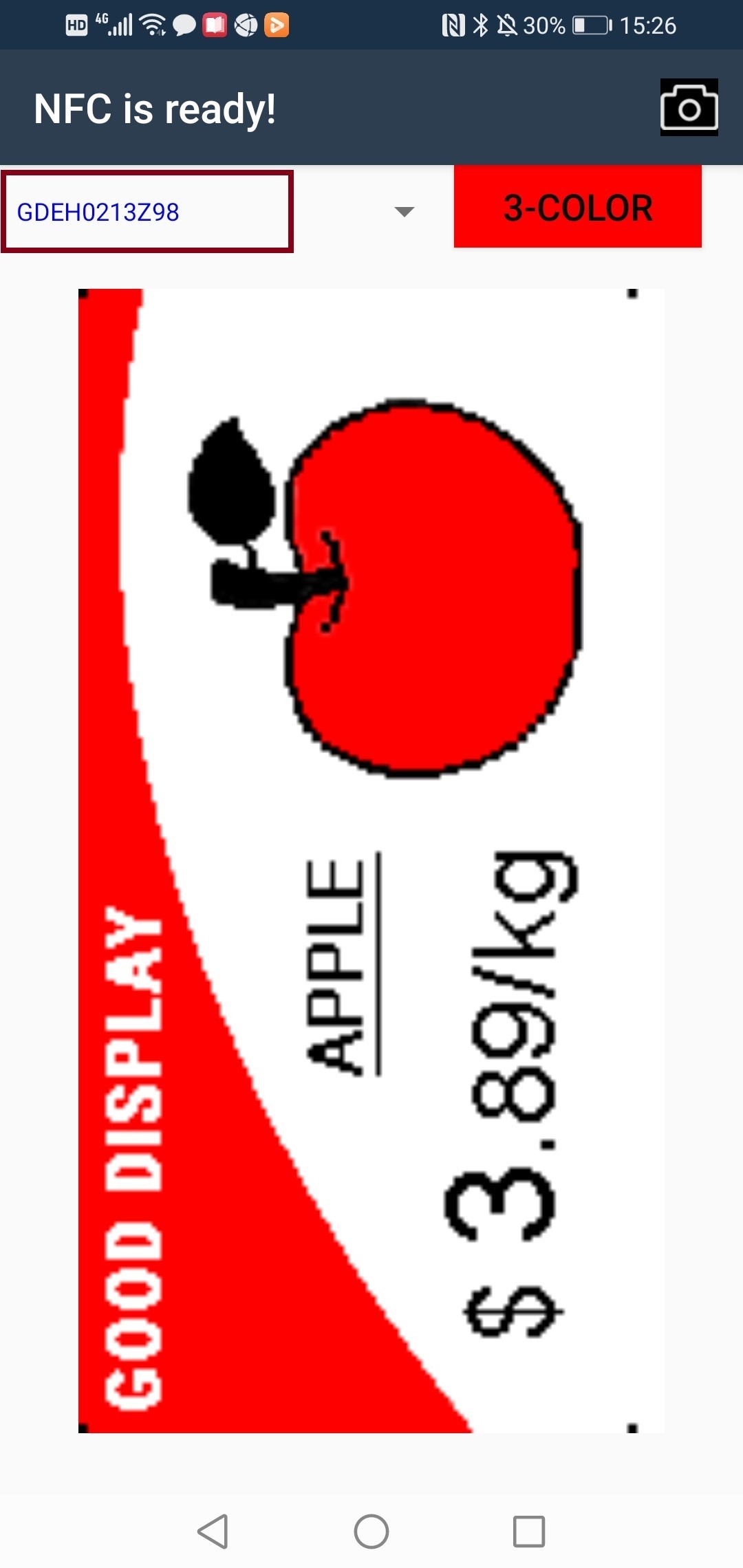

    4. Select the camera LOGO to choose your image









    5. Use the red frame to select and click 'Crop' to prepare your image.  (It is recommended to pre-set the size and format of your image according to the parameters of E-paper display)







    6. After setting done, please place your NFC mobile device against the antenna area at the back of 2.13inch NFC E-label when APP will react to it, starting data-transmission and E-paper image updating.

    *NOTE: Please turn NFC function on and do not make any movement of your mobile device during data-transmission and image updating.





  • PARAMETERS

    PART NUMBER

    GDN0213R

    SIZE OF EPD

    2.13 inch

    POWER SUPPLY

    Wireless

    DISPLAY COLOR

    Black / White/ Red

    DOT PITCH(mm)

    0.1943x0.1942

    RESOLUTION

    250×122

    GREY SCALE

    2

    REFRESH TIME

    14s

    DISPLAY SIZE(mm)

    48.55x23.7046

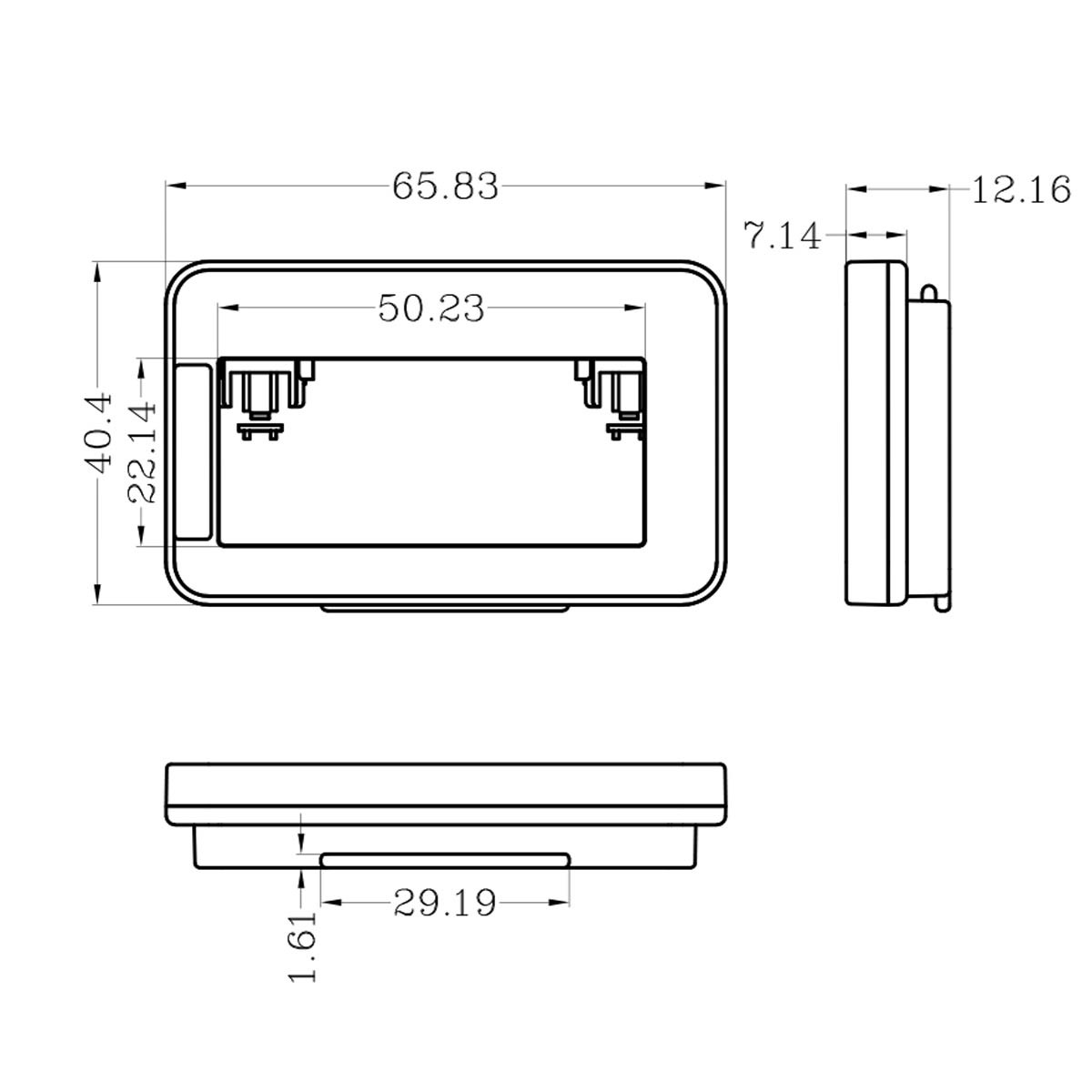

    OUTLINE DIMENSION(mm)

    65.5x40.9x12.1





    DRAWING
