2.9 inch Passive NFC-Powered Color E-paper Display ESL Wireless, No Battery, GDN029R

Categroy:

NFC Tag

GDN029R is a 2.9 inch Color E-paper Display NFC-powered Electronic Shelf Label, adopts novel passive NFC technology, no battery required, no more battery life trouble.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.9 inch Passive NFC-Powered Color E-paper Display ESL Wireless, No Battery, GDN029R

    GDN029R is a 2.9 inch Color E-paper Display NFC-powered Electronic Shelf Label, adopts novel passive NFC technology, no battery required, no more battery life trouble.

    INTRODUCTION

    GDN029R is a 2.9 inch Color E-paper Display NFC-powered Electronic Shelf Label, adopts novel passive NFC technology, no battery required, no more battery life trouble. 2.9 inch e-paper display, black, white and red. Use protective ABS case, beautiful and light weight, supports personalized customization. Refreshed By Smartphone, Comes With Android APP, As Easy As Swiping A Credit Card!

    * Note: This GDN029R Software can only be applied to Android phones.




    FEATURE

    No Battery Required, No More Battery Life Trouble

    ●  It does not contain a power supply such as a battery, which is suitable for applications where the power supply is restricted

    ●  The displayed content can be customized and controlled by the user at any time through the smart phone, which is convenient and flexible.

    ●  Suitable for equipment labels, shelf labels, information storage, etc.

    ●  With ABS plastic housing with better strength and toughness

    ●  Provides a matching Android APP to help users edit and manage the display content of the eink screen

    ●  Provide complete supporting information manual







    HOW TO USE

    Use A Smart Phone With NFC Function, Or An NFC Reader

    1. Download the APP,scan the QR code with a browser

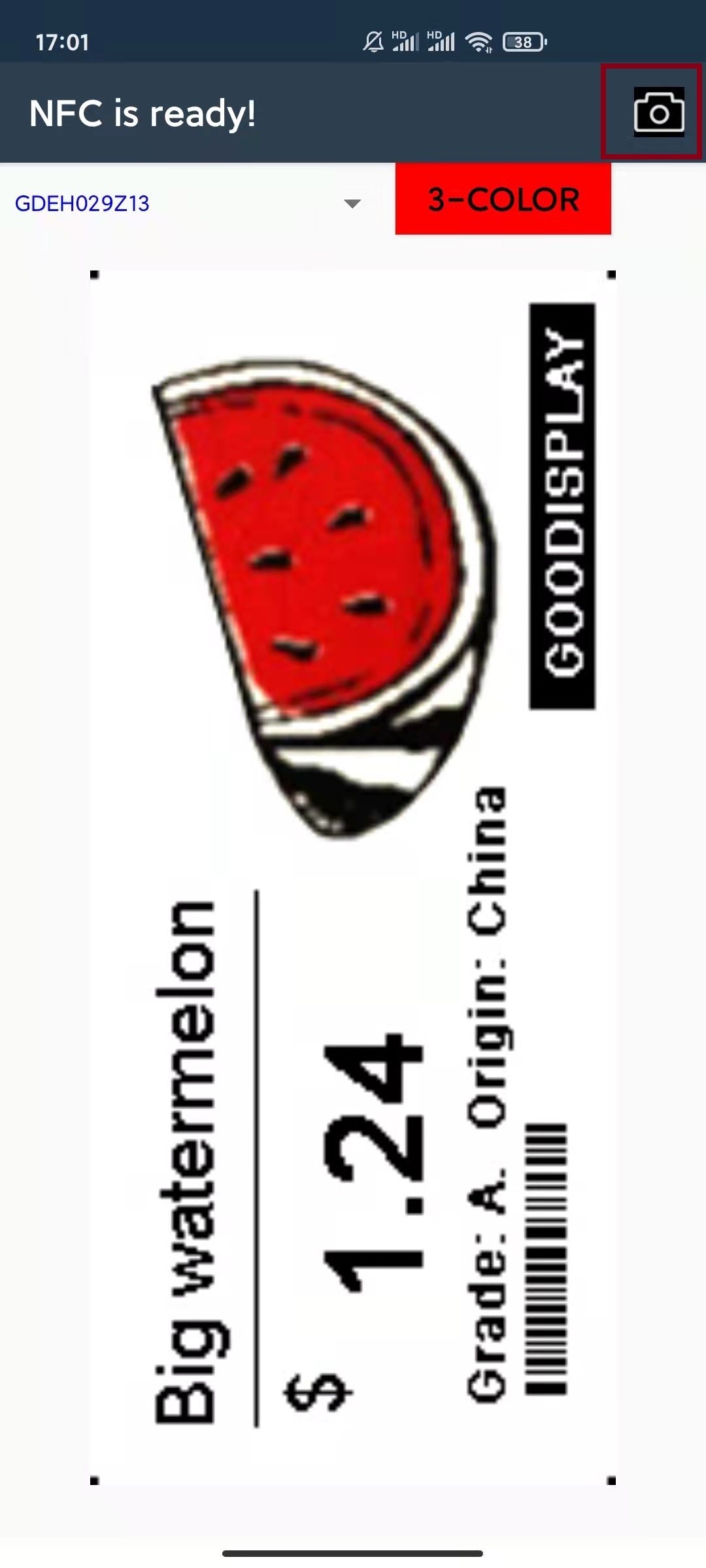

    2. Select mode as 3-COLOR








    3. Select model name as GDEH029Z13









    4. Select the camera LOGO to choose your image.









    5. Use the red frame to select and click 'Crop' to prepare your image.  (It is recommended to pre-set the size and format of your image according to the parameters of E-paper display)







    6. After setting done, please place your NFC mobile device against the antenna area at the back of 2.9 inch NFC E-label when APP will react to it, starting data-transmission and E-paper image updating.

    * Note: Please turn the NFC function on and do not make any movement of your mobile device during data-transmission and image updating.

  • PARAMETERS

    PART NUMBER

    GDN029R

    SIZE OF EPD

    2.9 inch

    POWER SUPPLY

    Wireless

    DISPLAY COLOR

    Black, White, Red

    DOT PITCH(mm)

    0.227x0.226

    RESOLUTION

    296×128

    GREY SCALE

    2

    REFRESH TIME

    12s

    DISPLAY SIZE(mm)

    66.896x29.056

    OUTLINE DIMENSION(mm)

    87.4x47.6x12.24





    DRAWING
