E-ink E paper Display 7.5 inch Electronic Price Label USB Cable No Battery Digital Price tag, IL075U

Categroy:

E-Paper Label

IL075U uses 7.5 inch e-ink e paper display (GDEY075T7) as the display panel instead of traditional paper labels and doorplate.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: E-ink E paper Display 7.5 inch Electronic Price Label USB Cable No Battery Digital Price tag, IL075U

    IL075U uses 7.5 inch e-ink e paper display (GDEY075T7) as the display panel instead of traditional paper labels and doorplate.



    INTRODUCTION

    IL075U uses 7.5 inch e-ink e paper display (GDEY075T7) as the display panel instead of traditional paper labels and doorplate. This e-ink has a high-tech appearance design and a low-power and energy-saving display solution. It doesn't need battery. The 7.5 inch e paper label adopts a variety of wired transmission methods and is a complete software-hardware integrated system. You can use computer software to change the content of the label through the USB cable, which provides users with more convenience.





    FEATURE

    ●  Bistable

    ●  No Battery

    ●  High contrast

    ●  Wide viewing angle

    ●  No light pollution

    ●  USB wired transmission

    ●  The picture is not lost when the power is off

    ●  Energy saving and environmental protection







    HOW TO USE

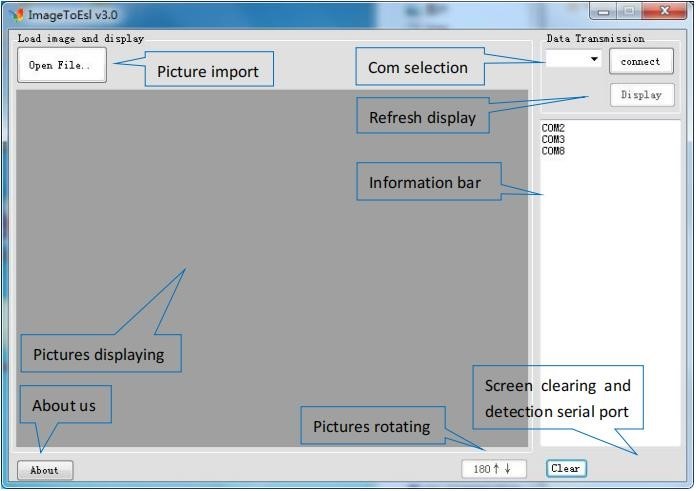

    1. Software Preview






    2. Settings of Serial Ports
    Users need to first connect the DEMO board to the USB port of the PC to select the related serial port and then open the software to to select the related port. When entered the interface, there will be present available serial ports in the left top column for users to select from and you can press “Clear” to update them.

    Then click “connect” to finish the connection when “connect is success” appears in the information column.








    3. Uploading and Saving Images
    1) Image Uploading:Click “Open File” to select one finished image to upload and then the parameters such as size, resolution, RGB and etc. of it will appear in the interface.
    2) Image Saving:Click “Save As”to save the image uploaded.

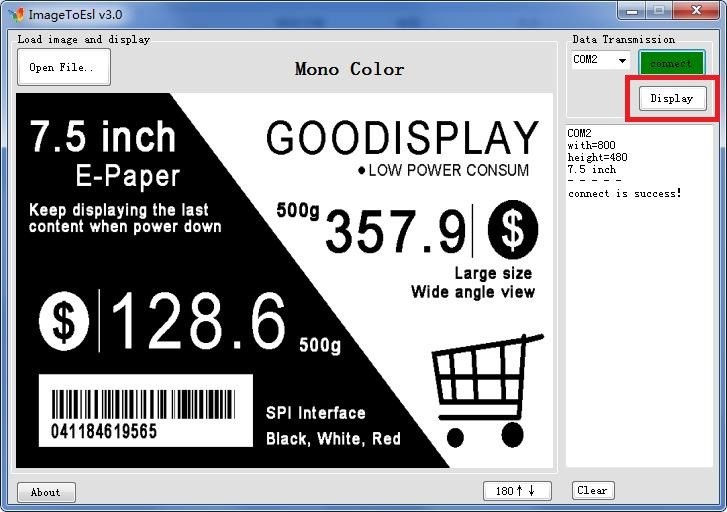

    4. Data Transmission
    Click “Display” to transmit the data, which normally in the left information box will appear “Successful handshake”to inform you the connection has been done successfully and the present volume of data transmitted is also visible.








    Keywords:
    • e-ink e paper display
    • e paper label
    • 7.5 inch e-ink display
  • PARAMETERS

    PART NUMBER

    IL075U (single screen)

    OUTLINE SIZE

    196x138mm

    RESOLUTION

    800x480

    POWER SUPPLY

    Micro USB

    VIEWING ANGLE

    Near 180°

    APPEARANCE

    Standard unit available with white frame

    OPERATING TEMP.

    0℃~50℃

    REFRESH TIME

    4s/frame

    SCREEN COLOR

    Black and white
