- Commodity name: Arduino Development Kits
INTRODUCTION

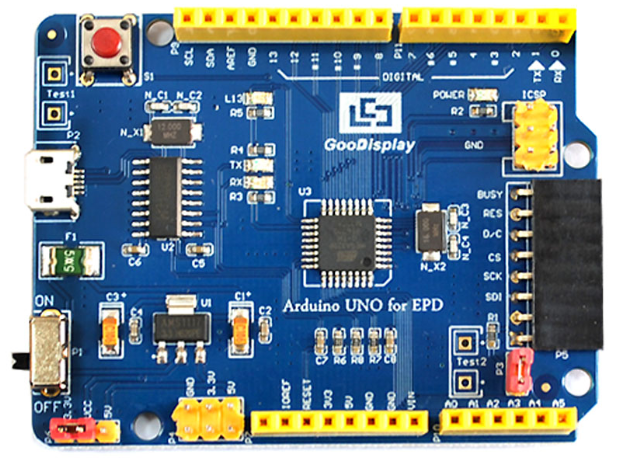

Arduino is an open source hardware development platform from Italy. Arduino Uno is its most basic development board. Its processor core is ATmega328, and it has 14 digital input / output ports (of which 6 can be used as PWM output) , 6 analog inputs. With peripheral devices (sensors, control switches, LED screens, etc.), anyone with a slight electronic circuit foundation can quickly build a practical electronic circuit with various interesting functions based on this platform.
Arduino Development Kits List

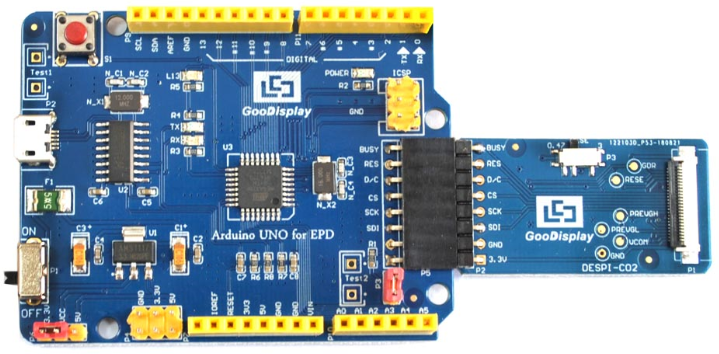

DEArduino-02
+
=
Arduino
Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

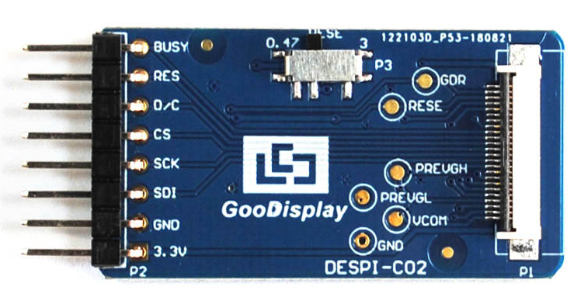

Description Language Update Date Size DEArduino-02 Spec. English 2020-04-02 1.1M DESPI-C02 Spec. English 2018-07-12 733KB DEArduino UNO for EPD-SCH English 2018-11-28 463KB DESPI-C02-SCH English 2018-11-28 457KB DEArduino-03
+
=

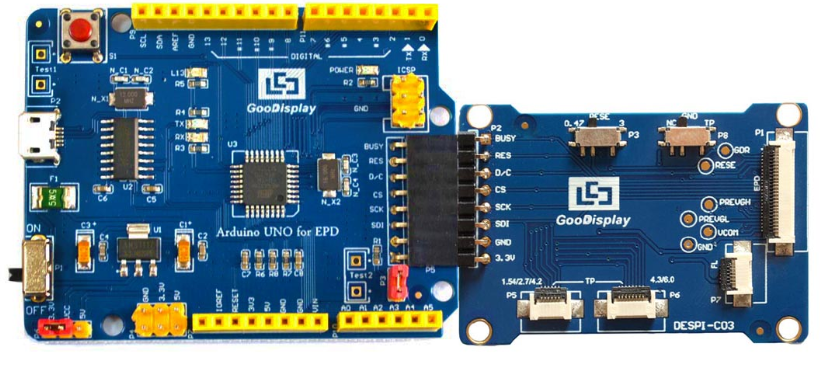

Arduino
Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).
The difference with DEArduino-02 : Raspberry Pi can be connected, and Touch Screen and Frontlight can be connected.

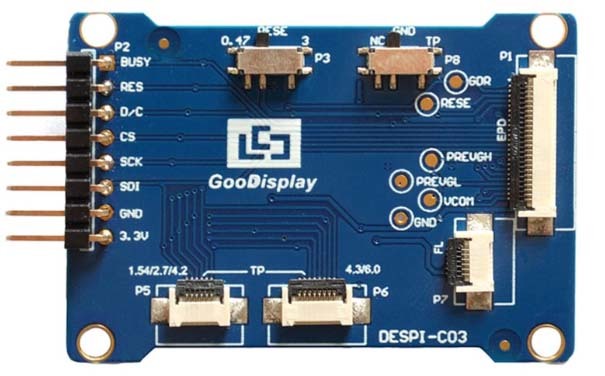

Description Language Update Date Size DEArduino-03 Spec. English 2020-04-02 1.1M DESPI-C03 Spec. English 2018-07-12 835KB DEArduino UNO for EPD-SCH English 2018-11-28 463KB DESPI-C03-SCH English 2018-07-12 329KB Raspberry Pi User Manual English 2020-04-02 1.3M DEArduino-102
+
=

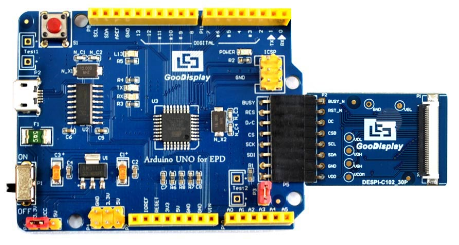

Arduino
Supporting 1.02 inch e-paper display.
Description Language Update Date Size DEArduino-102-30P Spec. English 2018-07-12 965KB DESPI-C102(30P) Spec. English 2018-07-12 703KB DEArduino UNO for EPD-SCH English 2018-11-28 463KB DESPI-C102-SCH English 2018-07-12 363KB Keywords:- e paper display Arduino
- e-paper arduino driver board
-
PARAMETERS
PARAMETER
SPECIFICATIONS
PLATFORM Arduino FUNCTION
Drive E-paper Display
OUTSIDE DIMENSION (mm)
70x54
POWER INTERFACE
USB Interface
MAIN FUNCTION
1. Learn how to drive E-Paper Display based on Arduino.
2. Test and evaluate the E-Paper Display.
3. Secondary development based on DEARDUINO.
ADDITIONAL FUNCTION
USB to serial port, indicator, light, keys, current detection and so on.
OPERATING TEMP.
-20℃~70℃
EXAMPLE CODE
Available
STRUCTURE
-
