    • Commodity name: ESP32 Development Kits

    INTRODUCTION

    ESP32 is a serial port WiFi+BT module. Compared with ESP8266, it adds Bluetooth function, and its processor speed is faster and power consumption is lower. Its internal integrated MCU can realize serial communication between single-chip computers; this module is easy to learn, small in size, and convenient for embedded development. ESP32 is specially designed for mobile devices, wearable electronic products and IoT applications, and achieves ultra-low power consumption through a number of proprietary technologies.

    The power saving mode of ESP32 is suitable for various low-power application scenarios. We can understand the ESP32 module as a single-chip microcomputer with WiFi and BT functions. When we use our own single-chip microcomputer to control, we only need to let the two single-chip microcomputers communicate with each other, the instructions are the same, and the corresponding operations are performed.



    ESP32 Development Kits List

    +

    =

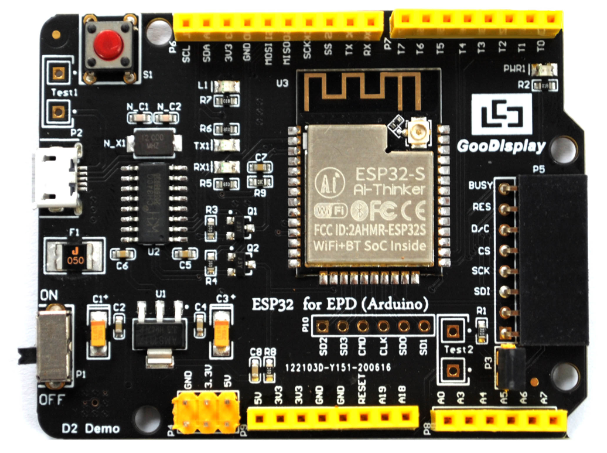

    ESP32



    DESPI-C02



    ESP32-02

    Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

    Description Language Update Date Size
    ESP32-02 Specification English 2020-08-12 1000KB
    DESPI-C02 Specification English 2018-07-12 733KB
    ESP32-SCH English 2020-08-17 209KB
    DESPI-C02-SCH English 2018-11-28 457KB

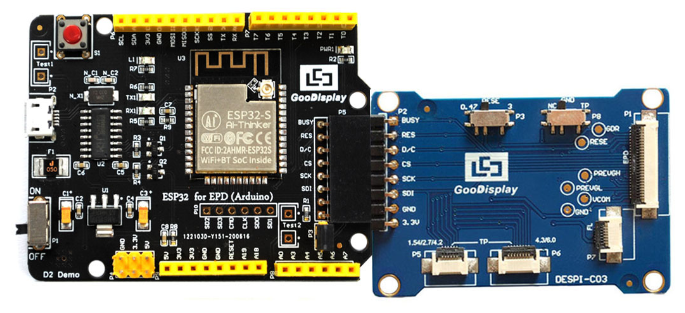

    ESP32-03

    +

    =

    ESP32

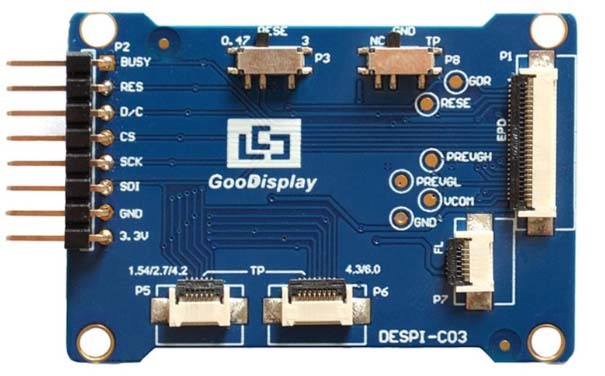

    DESPI-C03



    ESP32-03

    Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

    The difference of DESPI-C03 with DESPI-C02 : Raspberry Pi can be connected,  and Touch Screen and Frontlight can be connected.

    Description Language Update Date Size
    ESP32-03 Specification English 2020-08-12 1.2M
    DESPI-C03 Specification English 2018-07-12 835KB
    ESP32-SCH English 2020-08-17 209KB
    DESPI-C03-SCH English 2018-07-12 329KB
    Raspberry Pi User Manual English 2020-04-02 1.3M



    ESP32-102

    +

    =

    ESP32



    DESPI-C102



    ESP32-102(30P)

    Supporting 1.02 inch e-paper display.

    Description Language Update Date Size
    ESP32-102(30P) Specification English 2020-08-12 917KB
    DESPI-C102(30P) Specification English 2018-07-12 703KB
    ESP32-SCH English 2020-08-17 209KB
    DESPI-C102-SCH English 2018-07-12 363KB





    Keywords:
    • ESP32 e paper display
    • e-paper esp32 driver board
  • PARAMETERS

    PARAMETER

    SPECIFICATIONS

    PLATFORM Arduino

    FUNCTION

    Drive E-paper Display

    OUTSIDE DIMENSION (mm)

    70x54

    POWER INTERFACE

    USB Interface

    MAIN FUNCTION

    1. Learn to drive e-paper display

    2. Test and evaluate e-paper display

    3. For secondary development

    ADDITIONAL FUNCTION

    USB to serial port; Indicator light; Reset key; Current measurement.

    OPERATING TEMP.

    -20℃~70℃

    EXAMPLE CODE

    Available

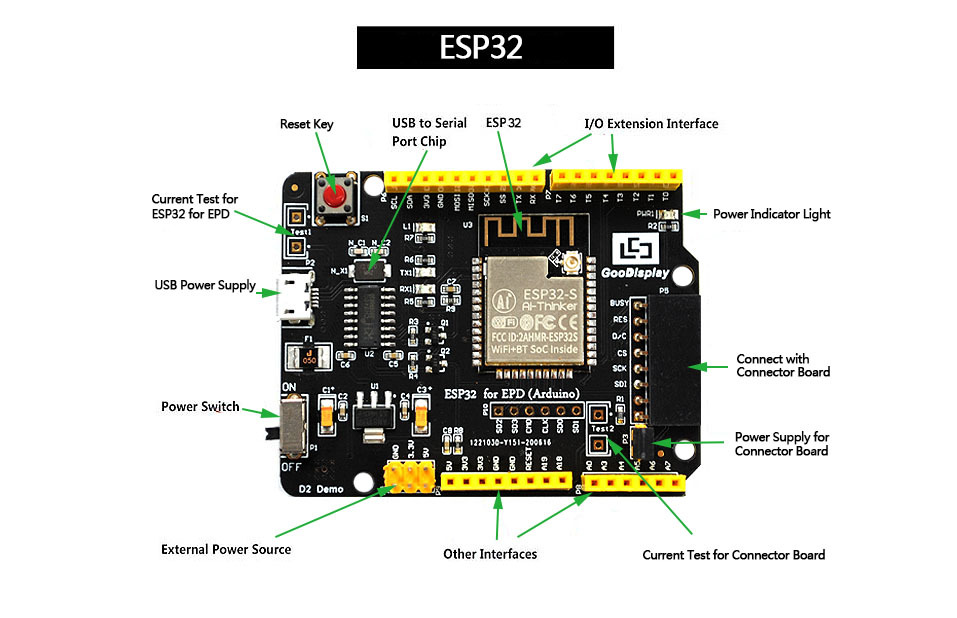

    STRUCTURE
