ESP8266 Development Kits

Categroy:

Evaluation Kit

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: ESP8266 Development Kits

    INTRODUCTION

    ESP8266 is a serial WiFi module. The internal integrated MCU can realize the serial communication between microcontrollers. This module is easy to learn, small in size, and easy for embedded development. ESP8266 is specifically designed for mobile devices, wearable electronics and IoT applications, and achieves ultra-low power consumption through a number of proprietary technologies.


    The power saving mode of ESP8266 is suitable for various low power consumption application scenarios. The ESP8266 module can be understood as a single-chip microcomputer with WiFi function. When we use our own single-chip microcomputer for control, we only need to let the two single-chip microcomputers communicate with each other with the same instructions and perform the corresponding operations.



    ESP8266 Development Kits List

    ESP8266-02

    +

    =

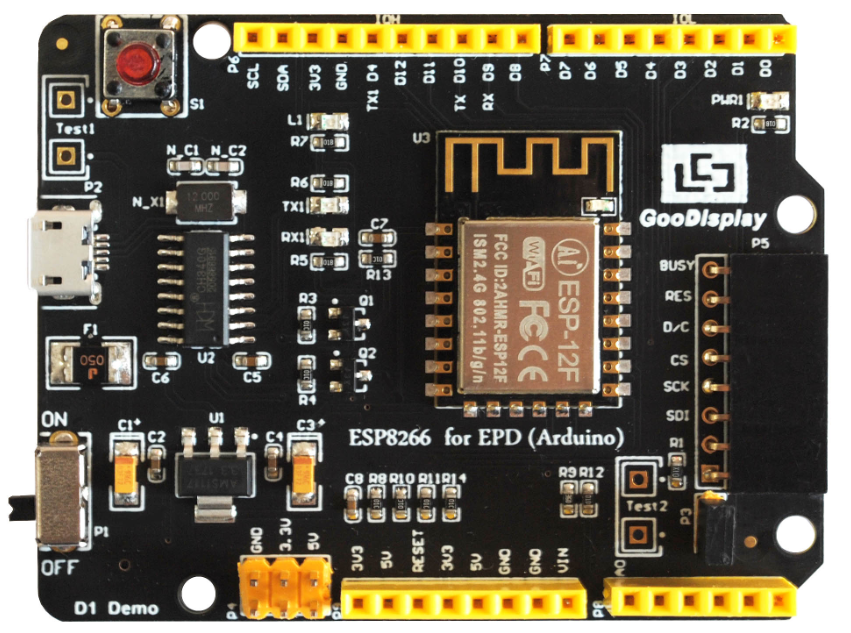

    ESP8266

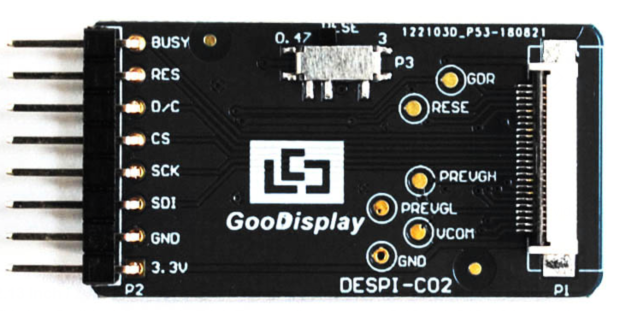

    DESPI-C02



    ESP8266-02

    Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

    Description Language Update Date Size
    ESP8266-02 Specification English 2020-04-02 939KB
    DESPI-C02 Specification English 2018-07-12 733KB
    ESP8266 for EPD-SCH English 2020-01-07 73KB
    DESPI-C02-SCH English 2018-11-28 457KB

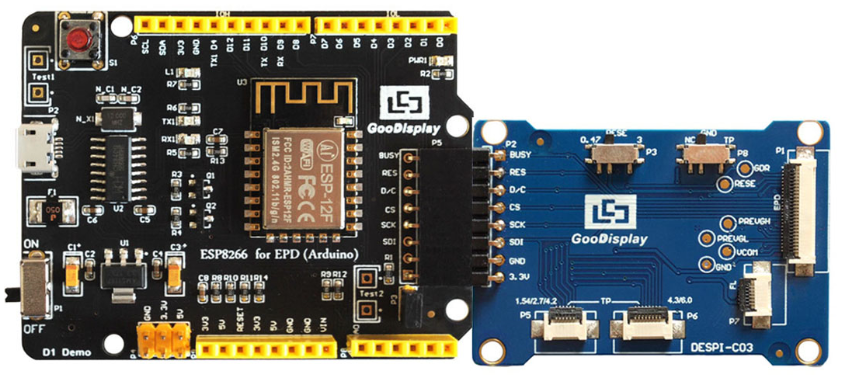

    ESP8266-03

    +

    =

    ESP8266

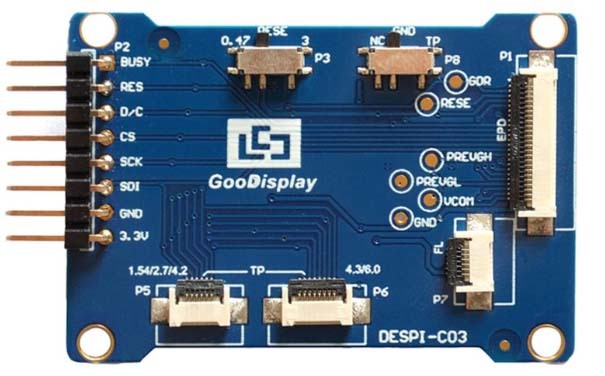

    DESPI-C03



    ESP8266-03

    Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

    The difference of DESPI-C03 with DESPI-C03 : Raspberry Pi can be connected,  and Touch Screen and Frontlight can be connected.

    Description Language Update Date Size
    ESP8266-03 Specification English 2020-04-02 1.0M
    DESPI-C03 Specification English 2018-07-12 835KB
    ESP8266 for EPD-SCH English 2020-01-07 73KB
    DESPI-C03-SCH English 2018-07-12 329KB
    Raspberry Pi User Manual English 2020-04-02 1.3M

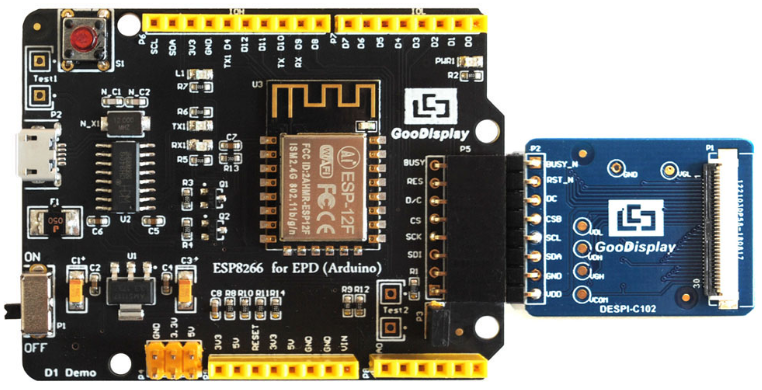

    ESP8266-102-30P

    +

    =

    ESP8266

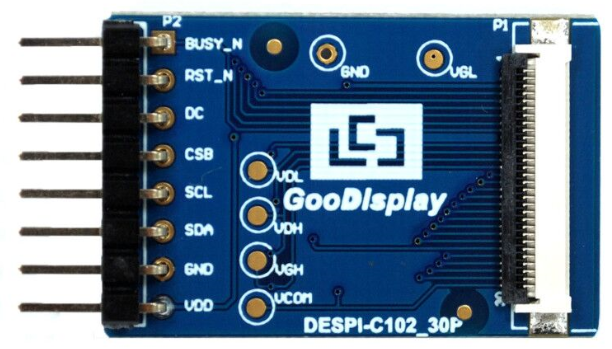

    DESPI-C102



    ESP8266-102-30P

    Supporting 1.02 inch e-paper display.

    Description Language Update Date Size
    ESP8266-102-30P Specification English 2018-07-12 932KB
    DESPI-C102(30P) Specification English 2018-07-12 703KB
    ESP8266 for EPD-SCH English 2020-01-07 73KB
    DESPI-C102-SCH English 2018-07-12 363KB
    Keywords:
    • e-paper esp32 driver board
  • PARAMETERS

    PARAMETER

    SPECIFICATIONS

    PLATFORM Arduino

    FUNCTION

    Drive E-paper Display

    OUTSIDE DIMENSION (mm)

    70x54

    POWER INTERFACE

    USB Interface

    ADDITIONAL FUNCTION

    USB to serial port, indicator light, keys, current detection and so on.

    RESERVED FUNCTION

    USB to Serial

    OPERATING TEMP.

    -20℃~70℃

    RECOMMENDED TOOL

    Keil 4

    EXAMPLE CODE

    Available

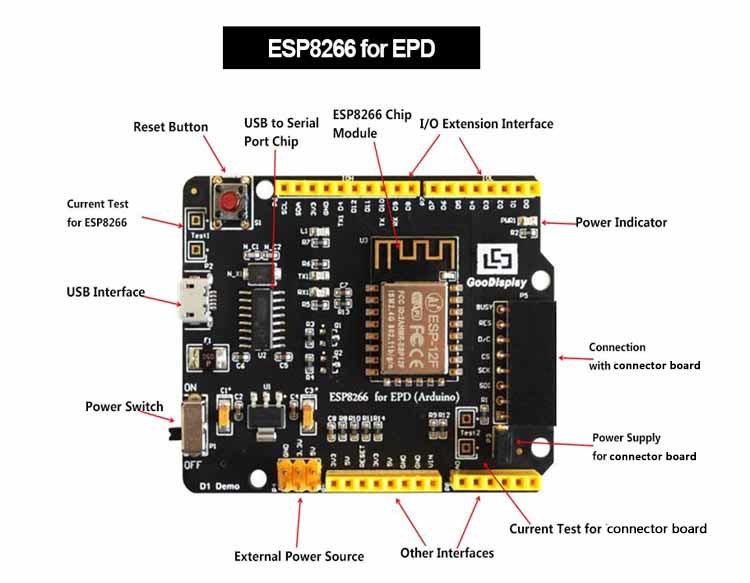

    STRUCTURE
