- Commodity name: Raspberry Pi Development Kits
INTRODUCTION

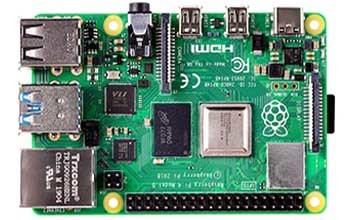

The Raspberry Pi is an ARM-based microcomputer motherboard. It uses an SD / MicroSD card as a memory hard disk. There are 1/2/4 USBports and a 10/100 Ethernet interface around the card motherboard (A type has no network port) It can be connected to a keyboard, mouse and network cable, and has a TV output interface for video analog signals and an HDMI high-definition video output interface. The above components are all integrated on a motherboard that is only slightly larger than a credit card, and can be replaced by all the basic functions of the PC. The TV and keyboard can perform many functions such as spreadsheets, word processing, playing games, playing high-definition video, and so on.
The Raspberry Pi motherboard can be connected to the DESPI-C03 adapter board or DESPI-C1248 adapter board (the latter needs to be connected with the Raspberry Pi-C1248 adapter board) to drive the e-paper. Next, we will briefly introduce how to use the Raspberry Pi for the purpose of driving e-paper.
Note: The Raspberry Pi motherboard, related accessories and tools need to be purchased by the user. Our company only provide the adapter accessories required for driving e-paper.Raspberry Pi Development Kits List
RPi-C03
+
=

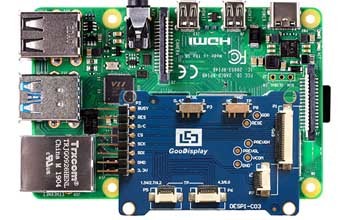

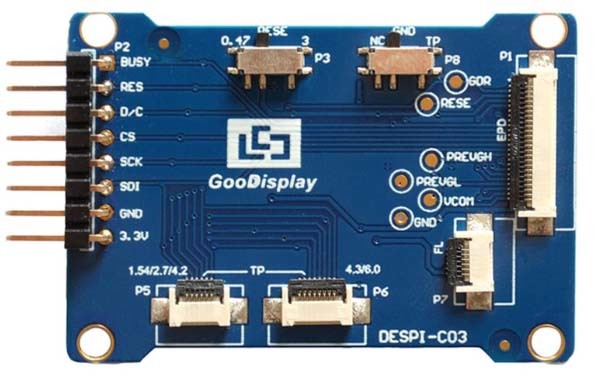

Raspberry Pi DESPI-C03 RPi-C03 Note: The Raspberry Pi motherboard needs to be purchased by the user.
Supports driving SPI e-paper display of 11.6 inch and below.Description Language Update Date Size DESPI-C03 Specification English 2018-07-12 835KB DESPI-C03-SCH English 2018-07-12 329KB RPi-C1248
+
=

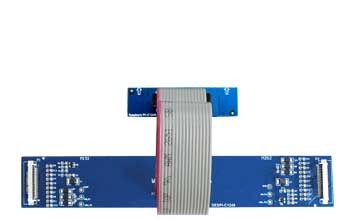

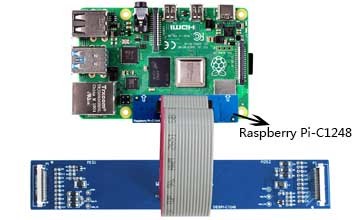

Raspberry Pi DESPI-C1248 RPi-C1248 Note: The Raspberry Pi motherboard needs to be purchased by the user.
Supports driving 12.48 inch SPI e-paper display.Description Lang Update Date Size DESPI-C1248 Specification English 2018-07-12 806KB DESPI-C1248-SCH English 2018-07-12 437KB

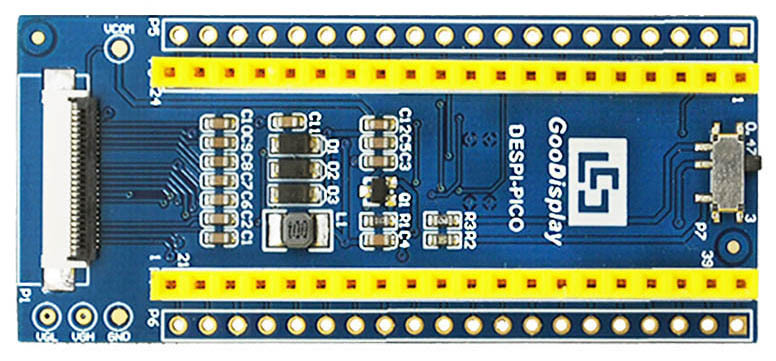

RPi-PICO
+
=

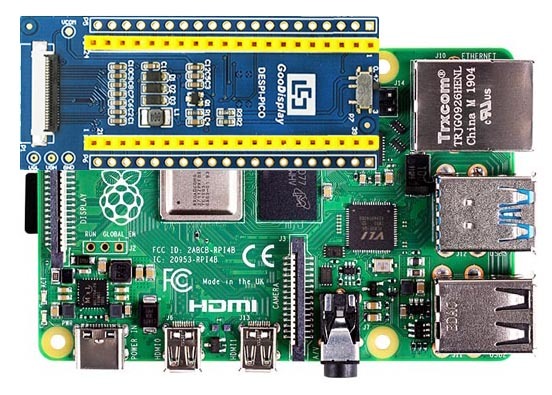

Raspberry Pi DESPI-PICO RPi-PICO Note: The Raspberry Pi motherboard needs to be purchased by the user.
Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).
DESCRIPTION LANGUAGE UPDATE DATE SIZE DESPI-PICO Specification English 2021-06-07 2.2M DESPI-PICO_SCH English 2021-06-16 33.8KB Keywords:- Raspberry Pi e paper display
- Raspberry Pi e ink screen
