Raspberry Pi Pico Development Kits

Categroy:

Evaluation Kit


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: Raspberry Pi Pico Development Kits

    INTRODUCTION

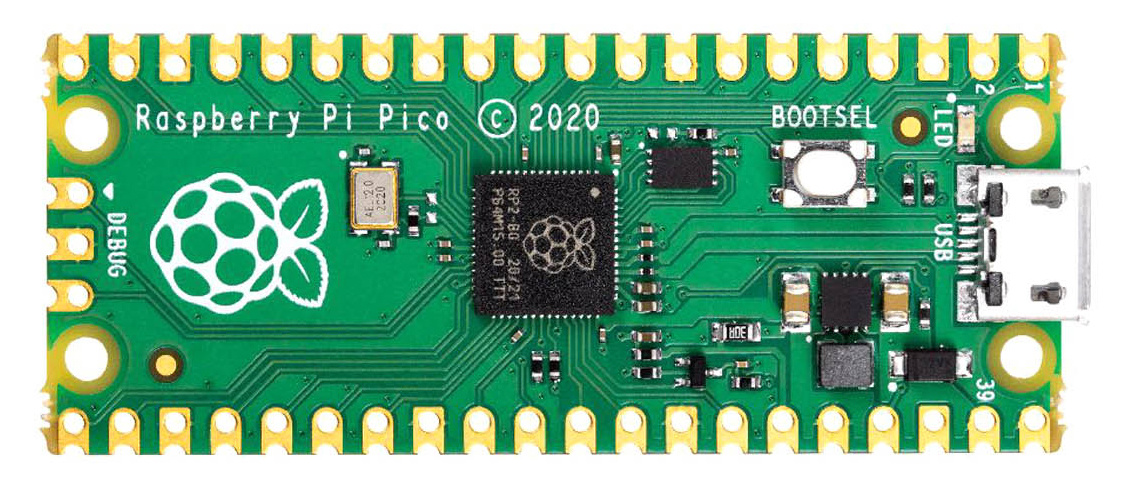

    Raspberry Pi Pico is a Cortex M0 main board for single-chip microcomputer based on ARM. It is designed to be a low-cost but flexible RP2040 platform.

    Note: The Raspberry Pi Pico motherboard, related accessories and tools need to be purchased by the user. Our company only provide the adapter accessories required for driving e-paper.





    FEATURE

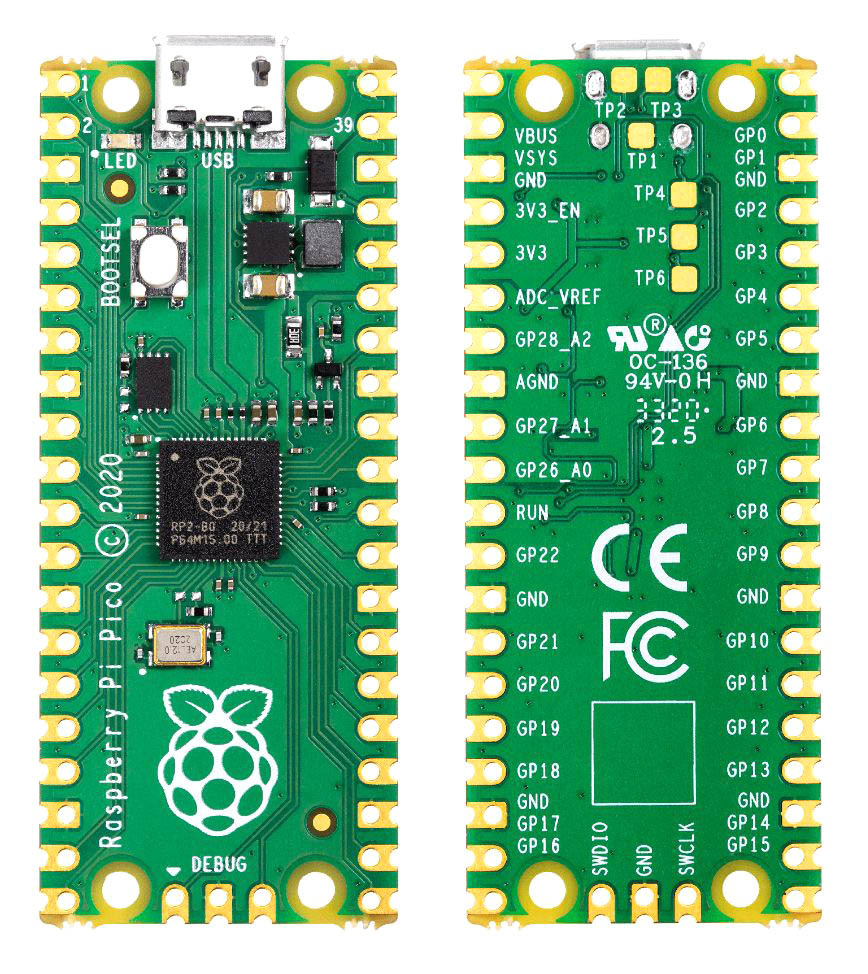

    •  RP2040 with 2MB of on-board Flash memory
    •  Micro USB B port for power supply and date
    •  40 pin 21x51 ‘DIP’ 1mm PCB with 0.1 through-hole and edge groove
    •  26 multi-functional 3.3V I/O(GPIO)are exproted
    •  23 GPIO are only for numbers, 3 GPIO supports ADC
    •  Supports suface-mount as a module
    •  3 pin ARM serial line debugging SWD interface
    •  Simple but highly flexible power supply structure
    •  Supports empowering through micro USB, external power supply or batteries
    •  High quality, low cost and high availability
    •  Complete SDK, software samples and documents

    •  Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
    •  Phase locked loop supports changeable core frequency
    •  Multiple sets of high performance 264kByte SRAM





    RPiP-PICO



    +

    =

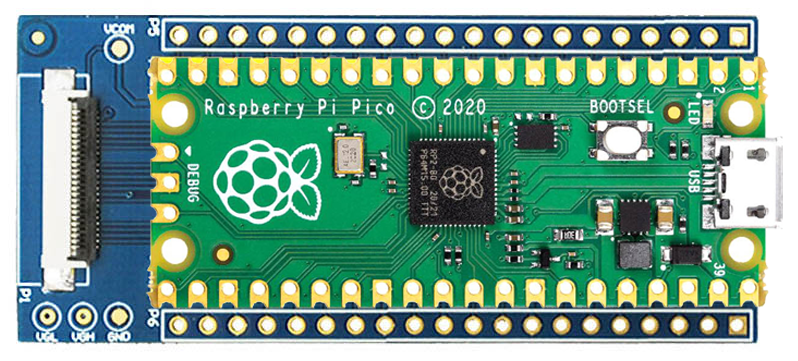

    Raspberry Pi Pico   DESPI-PICO   RPiP-Pico

    Note: The Raspberry Pi Pico motherboard needs to be purchased by the user.

    Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

    DESCRIPTION LANGUAGE UPDATE DATE SIZE
    DESPI-PICO Specification English 2021-06-07 2.2M
    DESPI-PICO_SCH English 2021-06-16 33.8KB



    Keywords:
    • e paper display Raspberry Pi Pico
  • PARAMETERS

    PARAMETER

    SPECIFICATIONS

    PARTNUMBER Raspberry Pi Pico

    PLATFORM

    Thonny (Python)

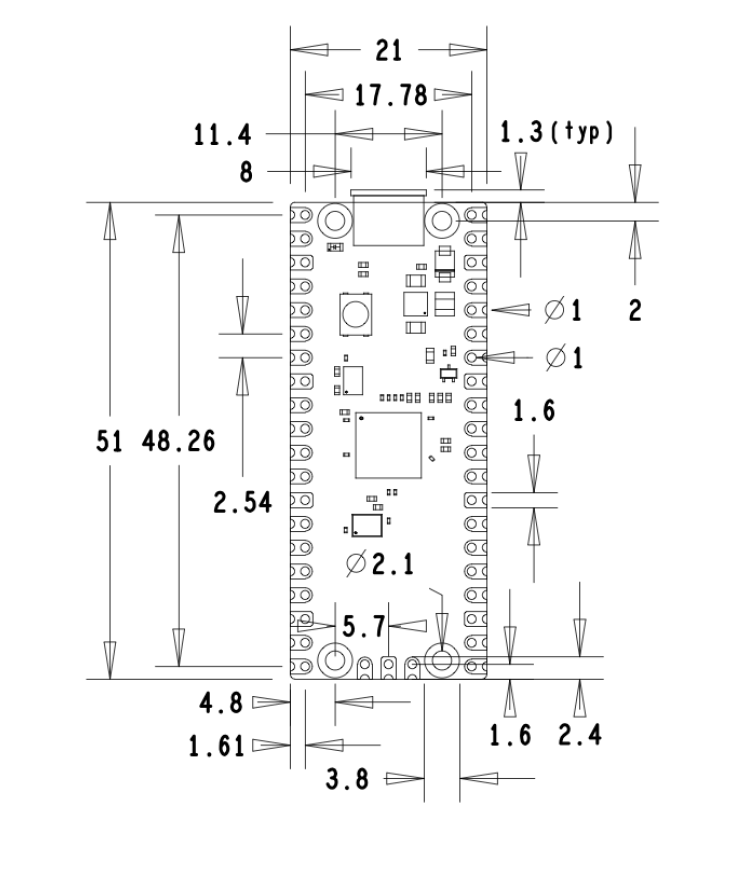

    OUTSIDE DIMENSION

    51x21mm (Raspberry Pi Pico)

    POWER INTERFACE

    USB Interface

    OPERATING TEMP.

    -20~70

    SAMPLE CODE

    Available

    MAIN FUNCTION

    1. Learn how to drive E-Paper Display based on Arduino.
    2. Test and evaluate the E-Paper Display.
    3. Secondary development based on Raspberry Pi Pico

    ADDITIONAL FUNCTION

    Indicator light






    STRUCTURE
