E-ink Display Kit for 13.3 inch Electronic Paper Display, DEXA-C133

Categroy:

Evaluation Kit

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video

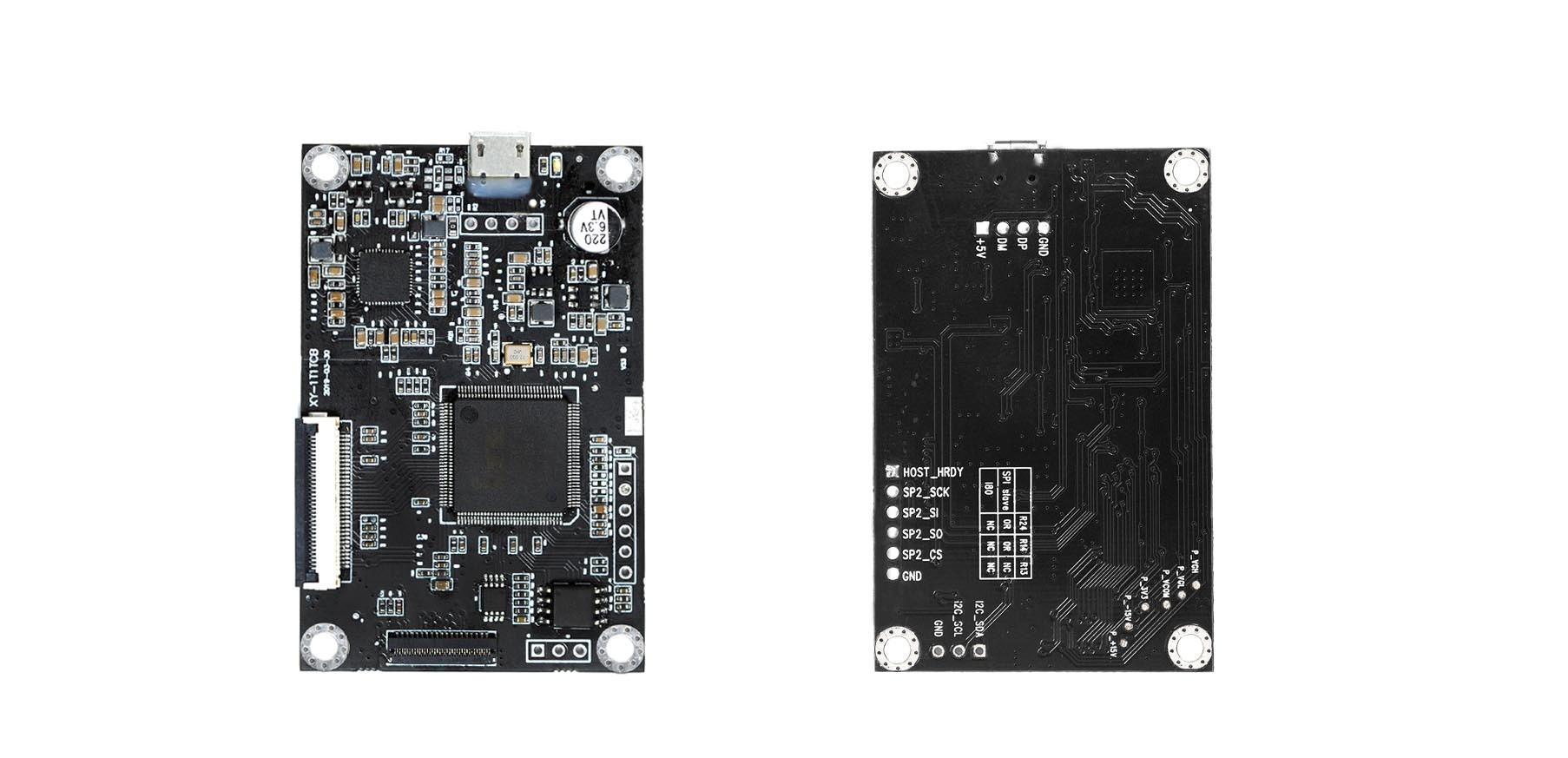

    • Commodity name: E-ink Display Kit for 13.3 inch Electronic Paper Display, DEXA-C133

    INTRODUCTION

    This e-ink display kit DEXA-C133 designed for 13.3 inch Parallel Interface e-ink display aims to help users to begin constructing our electronic paper display with provided source code to create more differentiated solutions. It supports being updated by computer directly.



    UPPER COMPUTER SOFTWARE OPERATION PROCEDURE

    1)  Connect the USB interface of driver board to the USB interface on PC.
    2)  Open the ITE_TCON_DEMOAP_V.2.5.4.

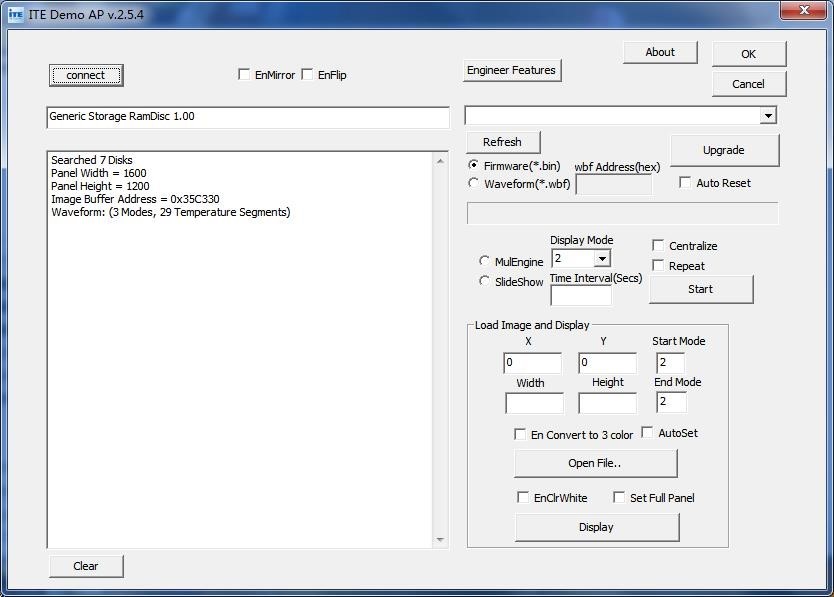

    3)  Click ‘Connect’ normal situation as shown below:

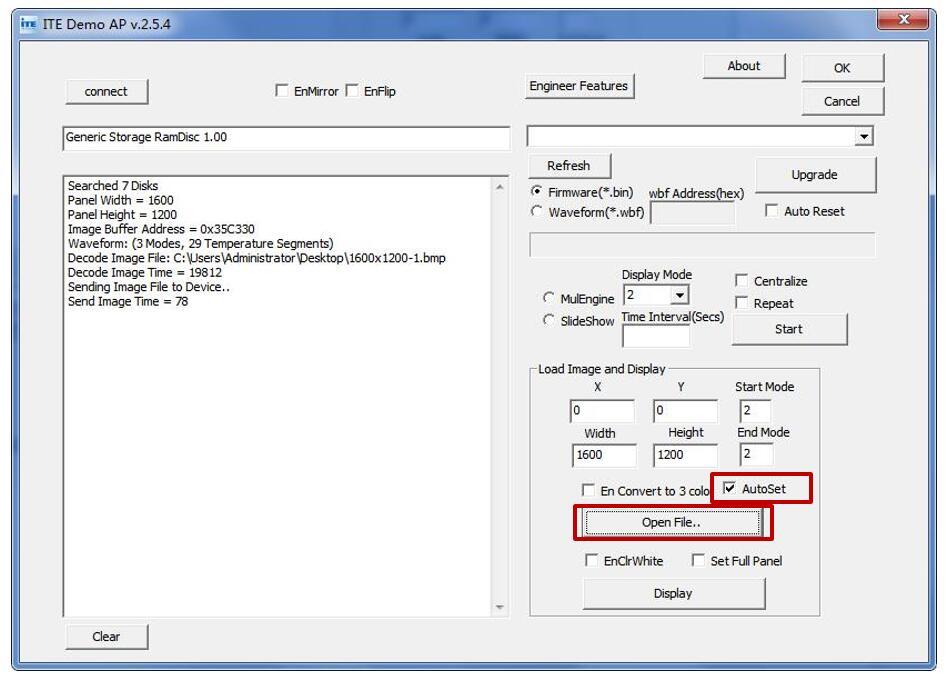

     4) Tick the‘AutoSet’box, click ‘Open File’, select the related image (the image resolution should be consistent with the screen resolution) to preview the picture and then click "OK", as shown below:

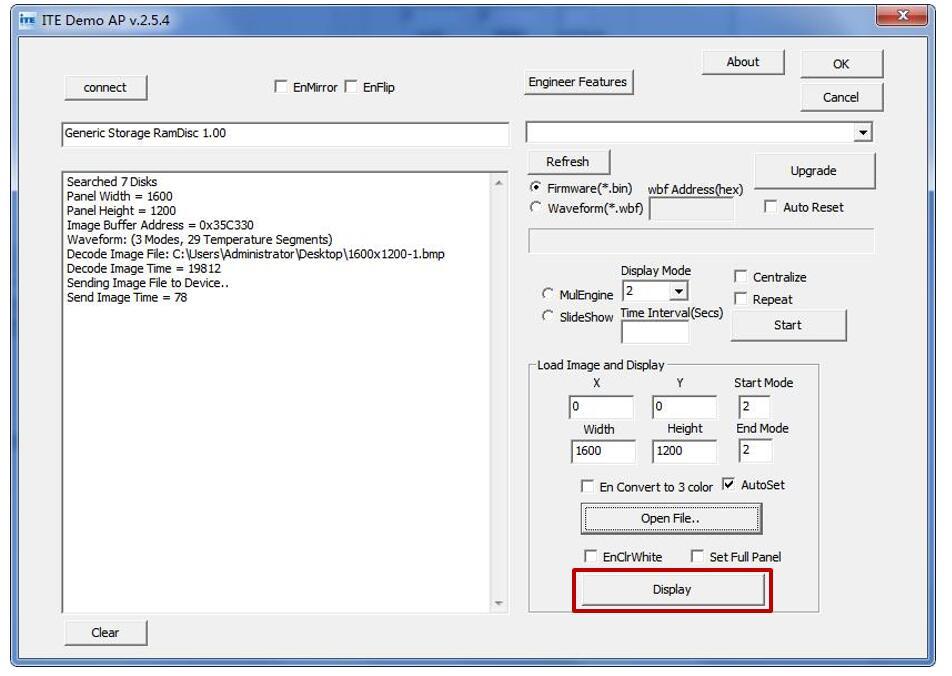

    5)  Finally, click Display, and the e-paper ink screen will display the selected image.





    Keywords:
    • 13.3 inch e-ink display
    • large e-ink display
    • e-ink display kit
  • PARAMETERS

    PART NUMBER

    DEXA-C133

    OUTSIDE DIMENSION (mm) 65x42mm

    POWER SUPPLY

    DC 5V

    INTERFACE

    USB Interface

    OPERATING TEMP.

    -20℃~70℃

    OPERATING CURRENT

    50mA

    MAIN FUNCTION

    Designed for 13.3 inch EPD, assist developers to test electronic ink screen applicaiton development faster and more smoothly. Directly through the upper computer software to transfer the images.

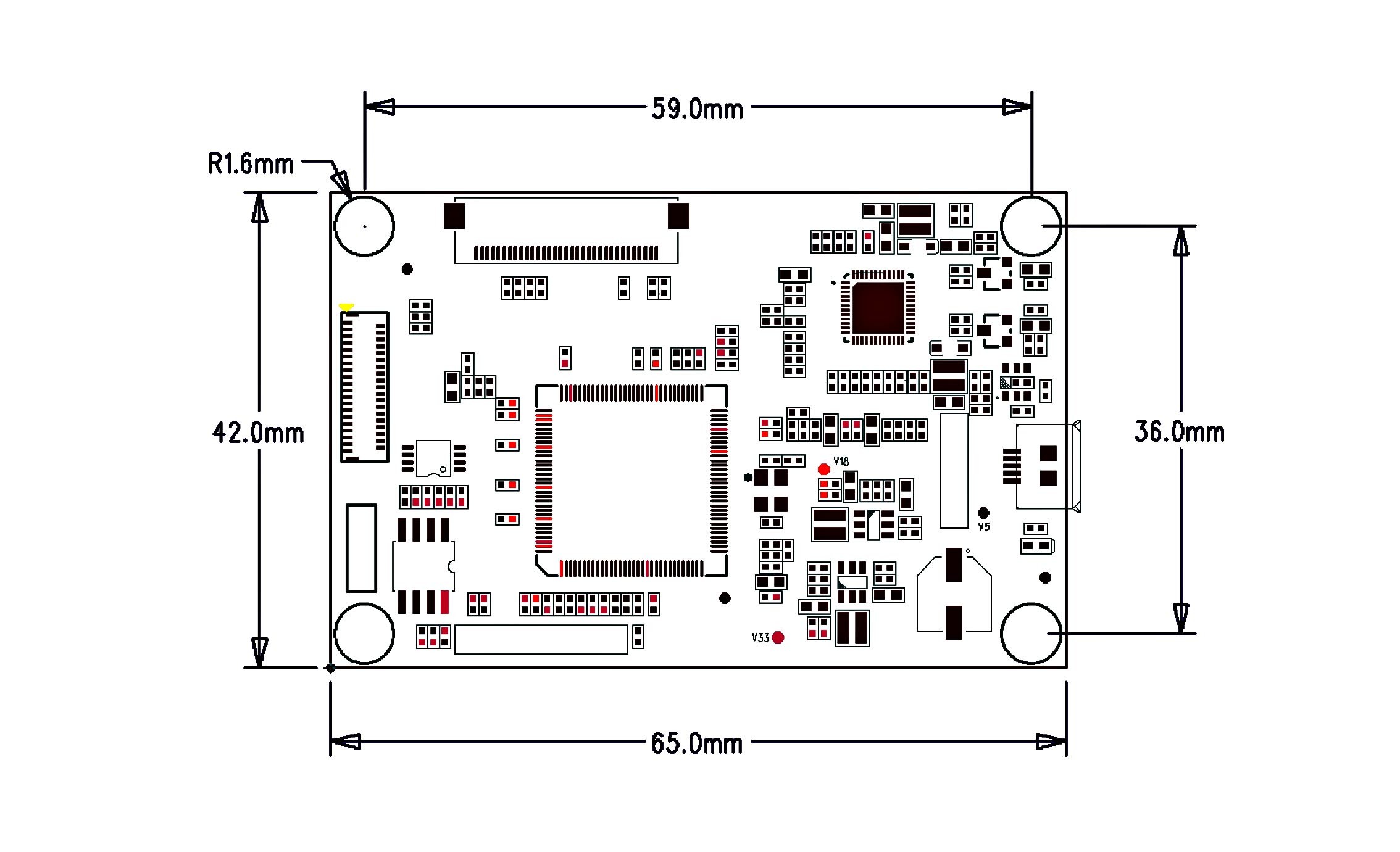

    STRUCTURE

  •
