0.75 inch round small white 128x128 dots OLED display GDOR0075W

Categroy:

OLED


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 0.75 inch round small white 128x128 dots OLED display GDOR0075W

    INTRODUCTION

    This is a white circular OLED display with small molecular organic light emitting diode, 0.75 inch with 128x128 pixels. The drive IC is SSD1327. Its operating temperature is -40℃~70℃, storage temperature is -40℃~85℃. The pixel luminance is 80(Typ) cd/m².

    This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus. Its circular design is also a good choice for other special application.





    FEATURE

    ●  Self-luminous, no backlight is required.

    ●  Circular.

    ●  Wide operating temperature: -40℃~70℃

    ●  Come with helpful manual





    Keywords:
    • 0.75 inch round small white 128x128 dots OLED display
  •

    PARAMETERS

    PART NUMBER GDOR0075W
    DIAGONAL SIZE 0.75 inch
    DISPLAY MODE Passive Matrix
    DISPLAY COLOR Monochrome (White)
    NUMBER OF PIXELS 128x128
    INTERFACE Serial Peripheral Interface, I2C Interface
    DRIVER IC SSD1327
    OUTLINE DIMENSION(mm) 23.15x40.93x1.21
    ACTIVE AREA(mm) D=19.18
    PIXEL PITCH(mm) 0.15x0.15
    PIXEL SIZE(mm) 0.13x0.13
    BRIGHTNESS(Typ) 80 cd/m²(Typ)
    OPERATING TEMP. -40℃~70℃
    STORAGE TEMP. -40℃~85℃

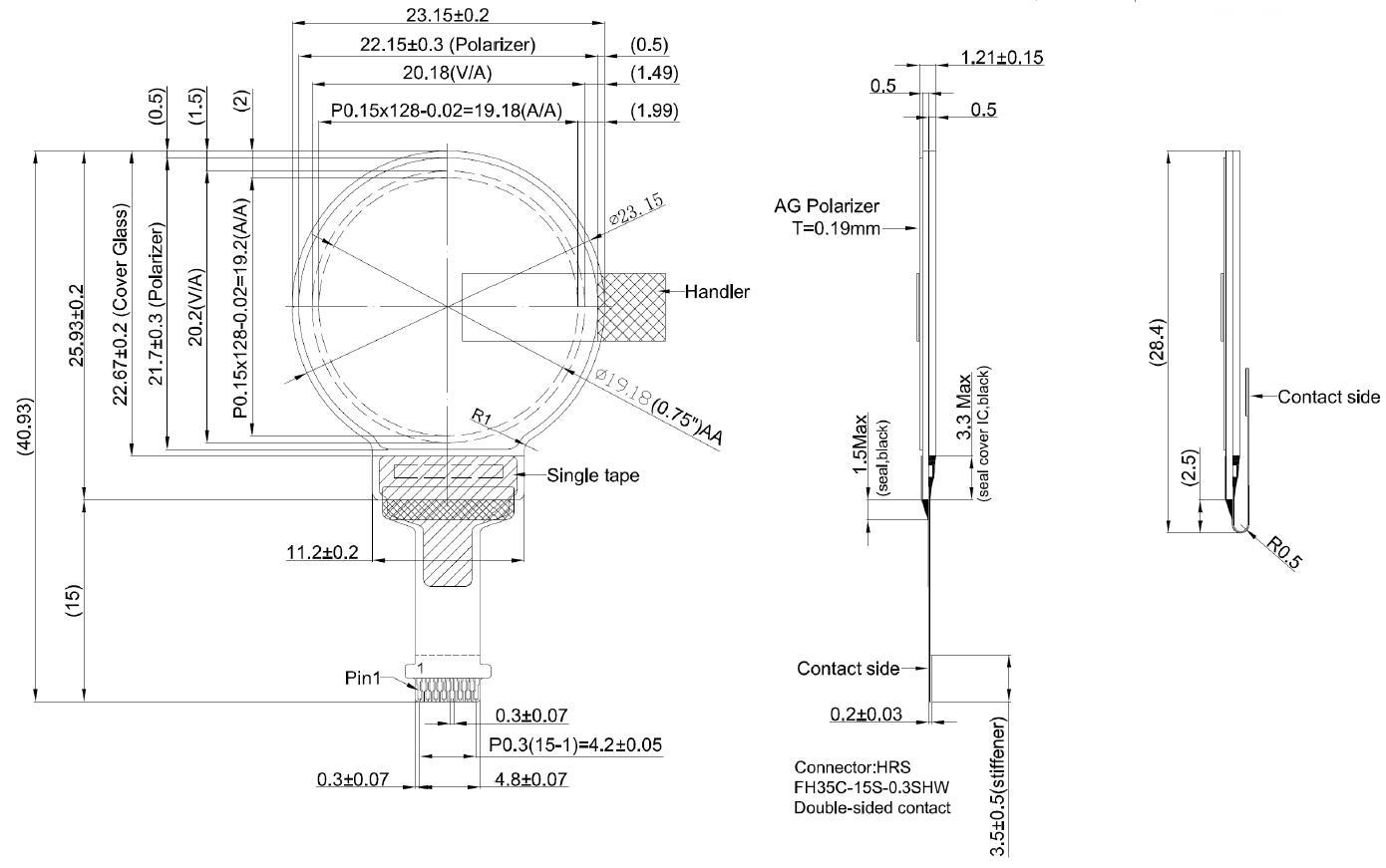

    DRAWING
