0.96 inch OLED Graphic Display Panel, GDO0096B

Categroy:

OLED


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 0.96 inch OLED Graphic Display Panel, GDO0096B

    INTRODUCTION

    GDO0096B is the graphic OLED display module made of 128x64 blue OLED pixels,diagonal is only 0.96 inch.The controller ic SSD1306, communicates via 6800/8080 8-bit parallel and I2C/3-wire/4-wire serial interface,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed.

    Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.



    FEATURE

    ● Self-luminous, no backlight is required.

    ● Ultra low power consumption.

    ● Wide operating temperature: -30℃~70℃

    ● Come with helpful manual





    Keywords:
    • 0.96 inch OLED Graphic Display Panel
  •

    PARAMETERS

    PART NUMBER GDO0096B
    DIAGONAL SIZE 0.96"
    DISPLAY MODE Passive Matrix
    DISPLAY COLOR Blue
    NUMBER OF PIXELS 128x64
    INTERFACE I2C
    Driver IC SSD1306
    OUTLINE DIMENSION(mm) 26.7x19.26x1.45
    ACTIVE AREA(mm) 21.744x10.864
    BRIGHTNESS(Typ) 120 cd/m2
    VIEW ANGLE 80/80/80/80
    OPERATING TEMP. -30℃~70℃
    STORAGE TEMP. -40℃~80℃
    POWER SUPPLY 2.8V

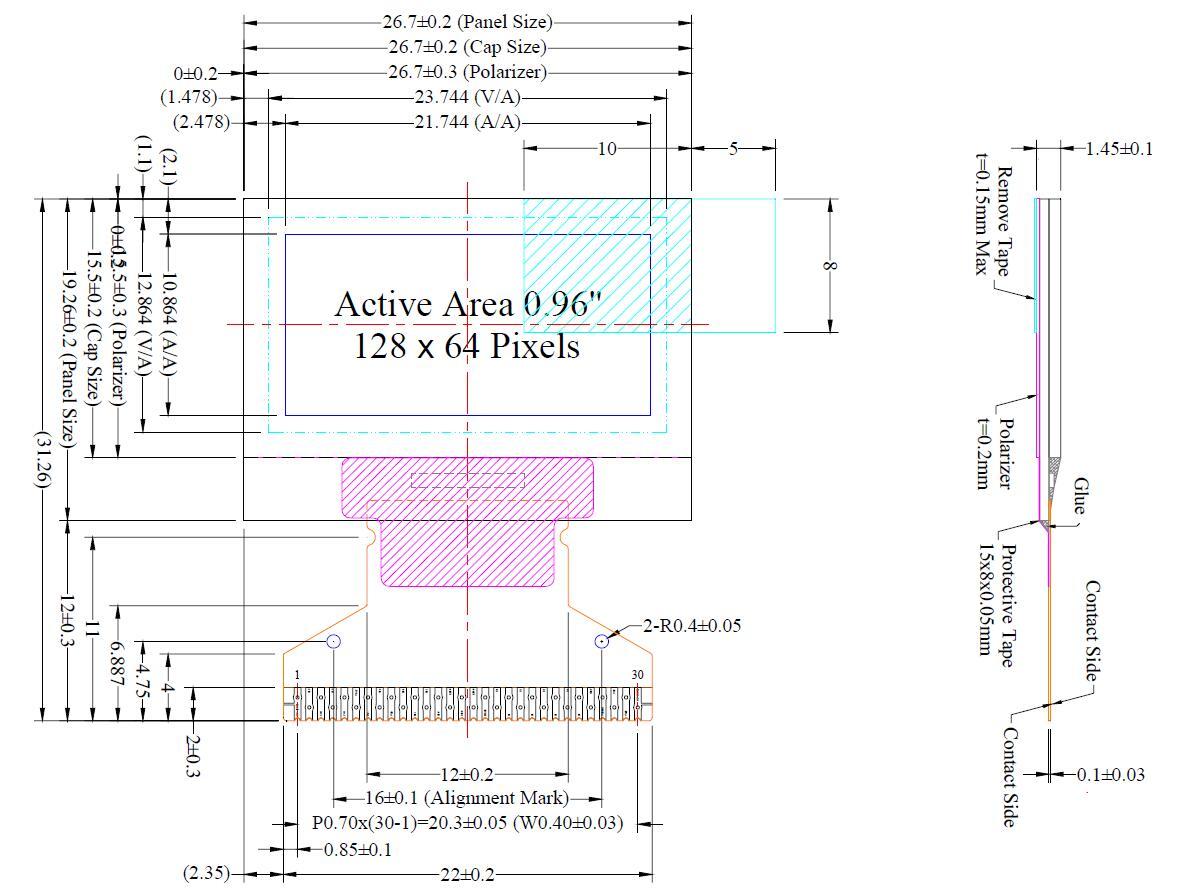

    DRAWING
