- Commodity name: 0.96 inch 128x64 OLED Display Module/ Blue and Yellow, GDO0096YB
INTRODUCTION
GDO0096YB is the graphic OLED display module made of 128x64 yellow and blue OLED pixels,diagonal is only 0.96 inch.The controller ic SSD1306, communicates via 6800/8080 8-bit parallel and I2C/3-wire/4-wire serial interface,thanks to controller's built-in voltage generation,only a single 3.3V power supply is needed.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
FEATURE
● Self-luminous, no backlight is required.
● Ultra low power consumption.
● Wide operating temperature: -30℃~70℃
● Come with helpful manual
Keywords:- 0.96 inch 128x64 OLED Display Module/ Blue and Yellow
-
PARAMETERS

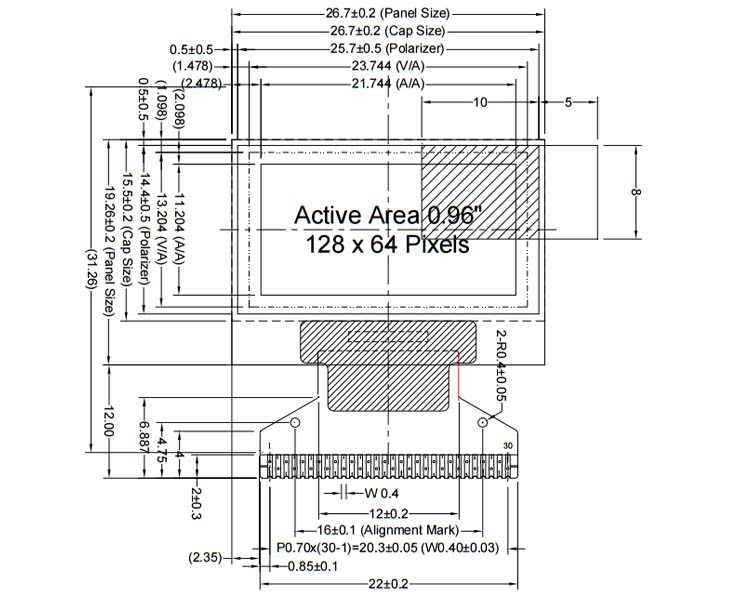

PART NUMBER GDO0096YB DIAGONAL SIZE 0.96" DISPLAY MODE Passive Matrix DISPLAY COLOR Blue+Yellow on Black NUMBER OF PIXELS 128x64 (16lines Yellow, 48lines Blue) INTERFACE I2C Driver IC SSD1306 OUTLINE DIMENSION(mm) 26.70x19.26x1.45 ACTIVE AREA(mm) 21.744x10.864 BRIGHTNESS(Typ) 120 cd/m2 VIEW ANGLE 80/80/80/80 OPERATING TEMP. -30℃~70℃ STORAGE TEMP. -40℃~80℃ POWER SUPPLY 2.8V DRAWING
