- Commodity name: 0.96 inch OLED display module with adapter board, wide temperature
INTRODUCTION
GDMN0096PGWP30 consists of a 0.96 inch OLED display and its adapter board. It suits for STM32 Platform, Arduino Platform and Raspberry Pi Platform. The adapter board's main function is to provide a communication interface and power supply for this 0.96 inch OLED display. At the same time, it is convenient for users to quickly master the use of the OLED display.
Self-luminous, no backlight required. This reduces the power required to run the OLED and it is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. It can be used in any embedded systems,industrial device,security,medical and hand-held device.FEATURE
● Self-luminous, no backlight is required.
● High contrast,extremely wide viewing angle
● It suits for STM32 Platform, Arduino Platform and Raspberry Pi Platform.
● Wide operating temperature: -40℃~85℃
Keywords:- 0.96 inch OLED display module with adapter board wide temperature
-
PARAMETERS
PART NUMBER GDMN0096PGWP30 DIAGONAL SIZE 0.96" DISPLAY MODE Passive Matrix DISPLAY COLOR White DRIVE Duty
1/64 Duty
INTERFACE 3-/ 4-wire SPI, I2C Driver IC SSD1315 OUTLINE DIMENSION(mm) Display: 31.9x23.7x4
Connector board: 39.8x27.8
ACTIVE AREA(mm) 21.74x10.86 PIXEL PITCH(mm)
0.17x0.17
PIXEL SIZE(mm)
0.15x0.15
BRIGHTNESS(Typ) 100 cd/m2 VIEW ANGLE Free OPERATING TEMP. -40℃~85℃ POWER SUPPLY 3.3V MAIN FUNCTION
1. Provide communication interface and power supply for OLED
2. It is convenient for users to quickly master the use of OLED display.
ACCESSIBILITY
1. OLED display power consumption measurement 2. OLED display working state detection

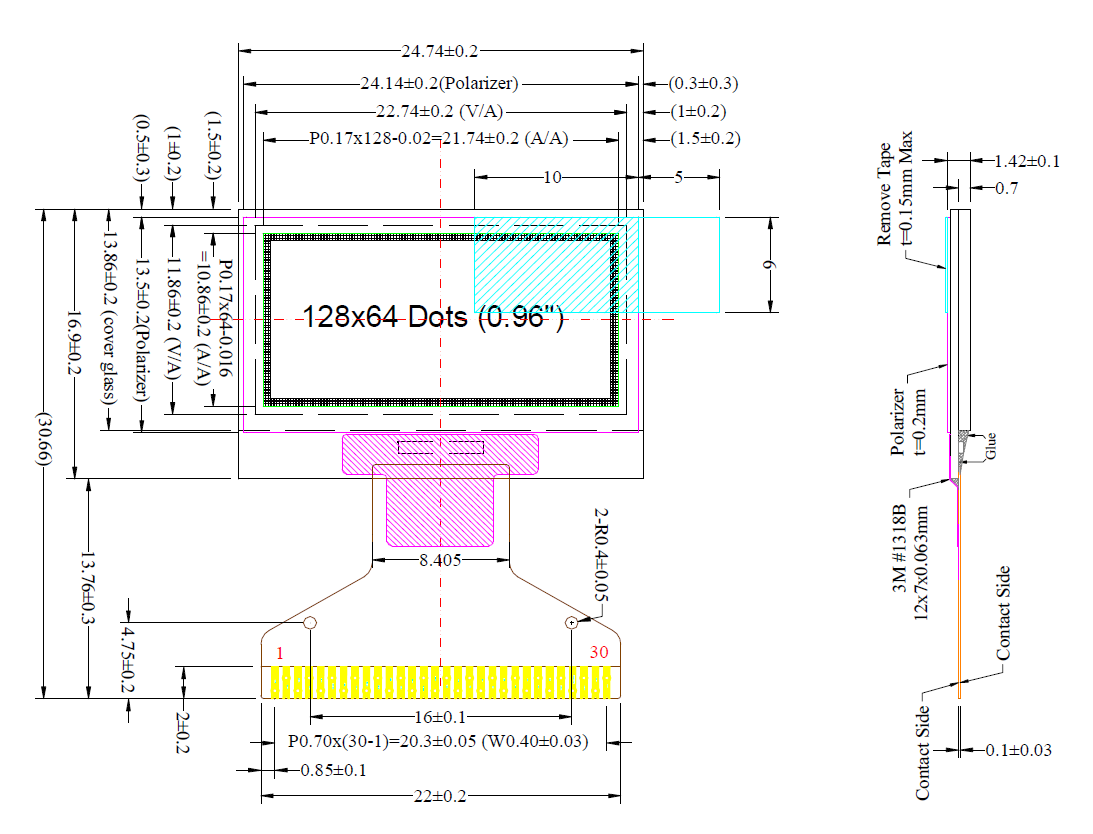

DRAWING
