1.29 inch OLED display panel wide temperature, GDON0129RGW

Categroy:

OLED


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 1.29 inch OLED display panel wide temperature, GDON0129RGW

    INTRODUCTION

    GDON0129RGW is the white graphic OLED display made of 128x64 OLED pixels,diagonal is 1.29 inch. The controller ic SSD1315, communicates via 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.

    The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.





    FEATURE

    ● Self-luminous, no backlight is required.

    ● High contrast,extremely wide viewing angle

    ● It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi

    ● Wide operating temperature: -40℃~85℃

    ● Come with helpful development resources and manual




    Keywords:
    • 1.29 inch OLED display panel wide temperature
  •

    PARAMETERS

    PART NUMBER GDON0129RGW
    DIAGONAL SIZE 1.29"
    DISPLAY MODE Passive Matrix
    DISPLAY COLOR White

    DRIVE Duty

    1/64 Duty

    NUMBER OF PIXELS 128x64
    INTERFACE 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
    Driver IC SSD1315
    OUTLINE DIMENSION(mm) 32.42x21.36x1.427
    ACTIVE AREA(mm) 29.42x14.7

    PIXEL PITCH(mm)

    0.23x0.23

    PIXEL SIZE(mm)

    0.21x0.21

    BRIGHTNESS(Typ) 110 cd/m2
    VIEW ANGLE Free
    OPERATING TEMP. -40℃~85℃
    STORAGE TEMP. -40℃~85℃

    CONNECTION

    FPC-Soldering

    POWER SUPPLY(Typ) 3.3V

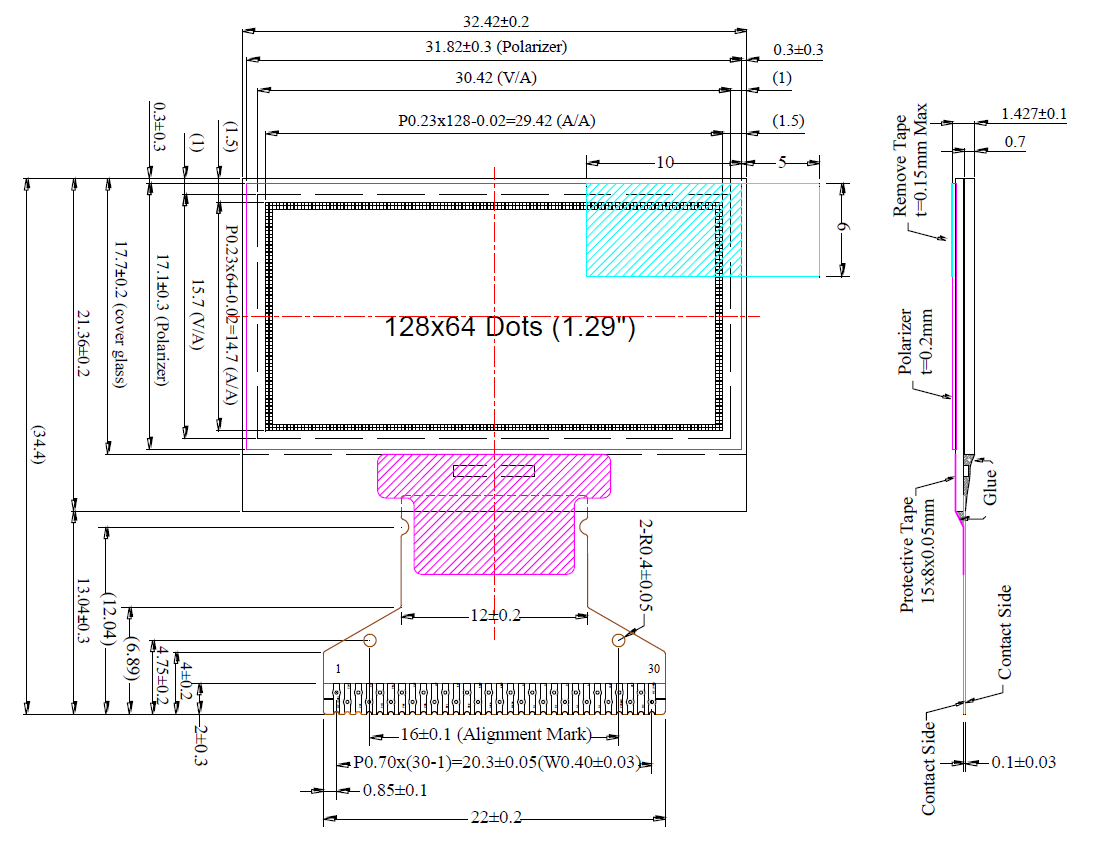

    DRAWING
