2.4 inch green 128x64 dots OLED display GDOE0240G

Categroy:

OLED

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.4 inch green 128x64 dots OLED display GDOE0240G

    INTRODUCTION

    GDOE0240G is the 128x64 green pixels OLED display, diagonal is only 2.4 inch.The controller ic is SSD1305, communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.

    It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.





    FEATURE

    ● Self-luminous, no backlight is required.

    ● 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI

    ● FPC-Soldering

     Wide operating temperature: -40℃~70℃






    Keywords:
    • 2.4 inch green 128x64 dots OLED display
  •

    PARAMETERS

    PART NUMBER GDOE0240G
    DIAGONAL SIZE 2.4"
    DISPLAY MODE Passive Matrix
    DISPLAY COLOR Green

    DRIVE Duty

    1/64 Duty

    NUMBER OF PIXELS 128x64
    INTERFACE 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI
    Driver IC SSD1305
    OUTLINE DIMENSION(mm) 60.50x37.00x2.00
    ACTIVE AREA(mm) 55.01x27.49

    PIXEL PITCH(mm)

    0.43x0.43

    PIXEL SIZE(mm)

    0.40x0.40

    BRIGHTNESS(Typ) 120 cd/m2
    VIEW ANGLE >160°
    OPERATING TEMP. -40℃~70℃
    STORAGE TEMP. -40℃~85℃

    CONNECTION

    FPC-Soldering

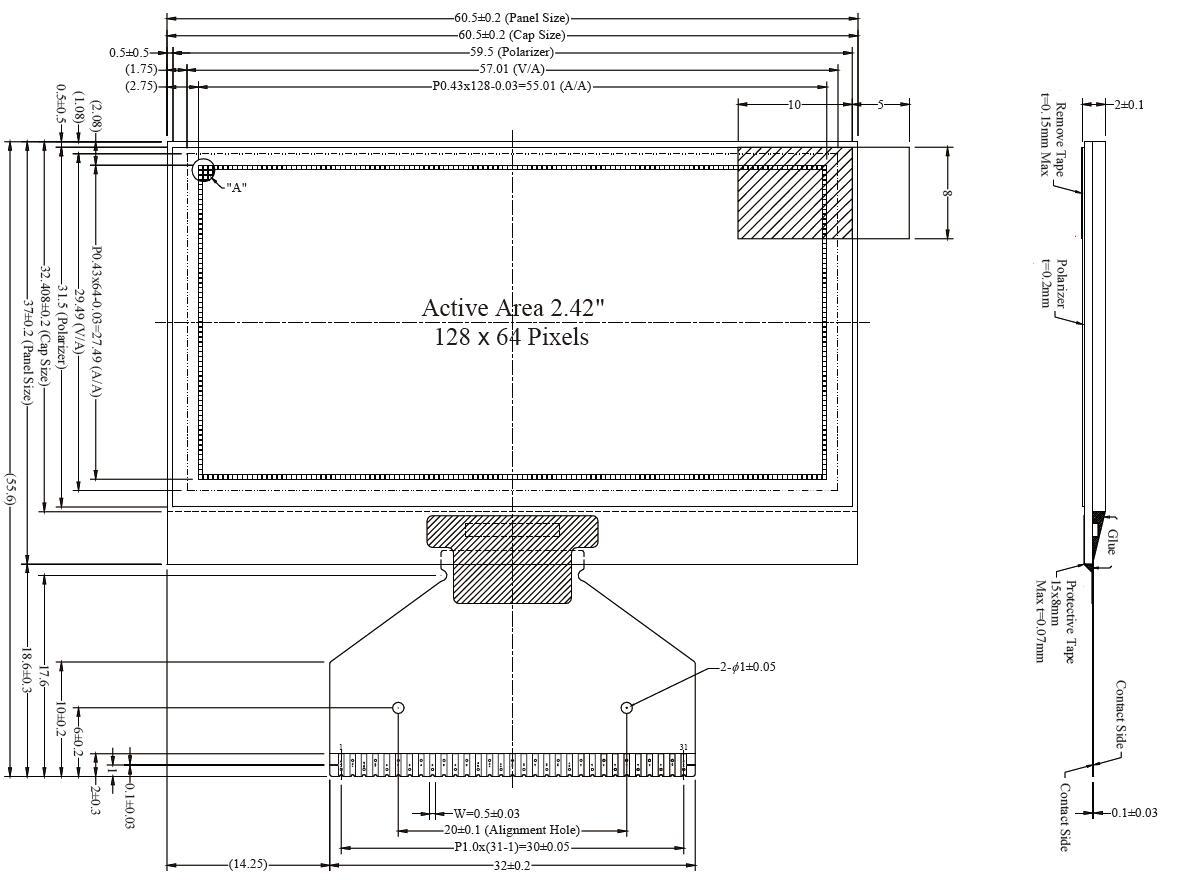

    DRAWING
