3.5 inch 320x240 Video input TFT LCD panel, GDN-D43AT-GTT035KDH03

Categroy:

TFT LCD


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 3.5 inch 320x240 Video input TFT LCD panel, GDN-D43AT-GTT035KDH03



    INTRODUCTION

    This 3.5 inch 240x320 color TFT-LCD module display, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.





    FEATURE

    ●  240x320 resolution

    ●  Video&VGA driver board

    ●  Viewing Angle 40°/60°/60°/60°(L/R/U/D)

    ●  Operating temperature -10℃~60℃

    ●  Optional touch screen

    ●  Optional 3.5 inch 4-wire resistive touch panel with USB driver board and cable

    ●  Optional capacitive touch panel with USB controller board and cable

    *If you need the optional accessories, please contact us.*



    Keywords:
    • 3.5 inch 320x240 Video input TFT LCD panel
  •

    PARAMETERS

    PART NUMBER GDN-D43AT-GTT035KDH03
    SIZE 3.5''
    RESOLUTION 320x240
    OUTSIDE DIMENSION OF LCD PANEL(mm) 76.9x63.9x3.2
    ACTIVE AREA OF LCD PANEL(mm) 70.08x52.56
    STRUCTURAL DIMENSION OF PCBA(mm) 62.0x55.2x9.0
    SIGNAL INPUT VIDEO
    VIEWING ANGLE (U/D/L/R) 40°/60°/60°/60°
    OPERATING TEMP. -10℃~60℃
    STORAGE TEMP. -20℃~70℃
    WORKING VOLTAGE DC12V(DC9~15V),DC110mA±20mA
    BRIGHTNESS 300cd/m2
    BACKLIGHT LED

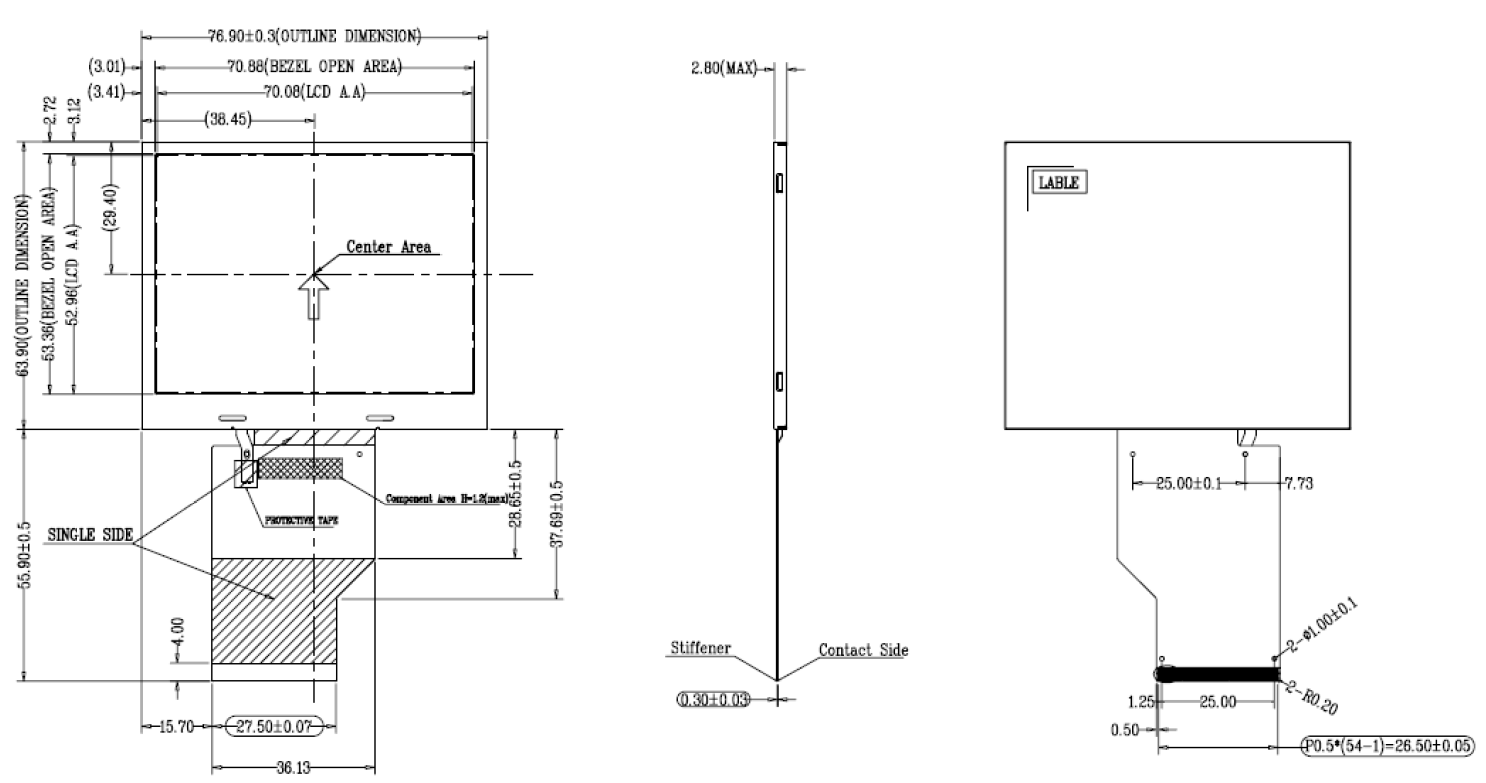

    DRAWING
