5.0 inch TFT LCD Display Module, Video VGA, GDN-D567AT-GTI050NA-08C

Categroy:

TFT LCD

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 5.0 inch TFT LCD Display Module, Video VGA, GDN-D567AT-GTI050NA-08C





    INTRODUCTION

    5.0 inch color 640x480 TFT-LCD module display, video&VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.






    FEATURE

    ●  640x480 resolution

    ●  Video&VGA driver board

    ●  Viewing Angle 50°/70°/70°/70°(L/R/U/D)

    ●  Operating temperature -10℃~60℃

    ●  Optional touch screen

    ●  Optional 5.0 inch 4-wire resistive touch panel with USB driver board and cable

    ●  Optional capacitive touch panel with USB controller board and cable

    *If you need the optional accessories, please contact us.*





    Keywords:
    • 5.0 inch TFT LCD Display Module Video VGA
  •

    PARAMETERS

    PART NUMBER GDN-D567AT-GTI050NA-08C
    SIZE 5.0''(4:3)
    RESOLUTION 640x480
    OUTSIDE DIMENSION OF LCD PANEL(mm) 117.65x88.43x5.7
    ACTIVE AREA OF LCD PANEL(mm) 101.57x76.18

    STRUCTURAL DIMENSION OF PCBA(mm)

    105.0x50.0x7.8

    VIEWING ANGLE (U/D/L/R) 50°/70°/70°/70°
    OPERATING TEMP. -10℃~60℃
    STORAGE TEMP. -20℃~70℃

    WORKING VOLTAGE

    DC12V(Typ.) (Min.9V, Max.15V)
    BRIGHTNESS 250cd/m2
    SIGNAL INPUT VGA,VIDEO

    BACKLIGHT

    LED

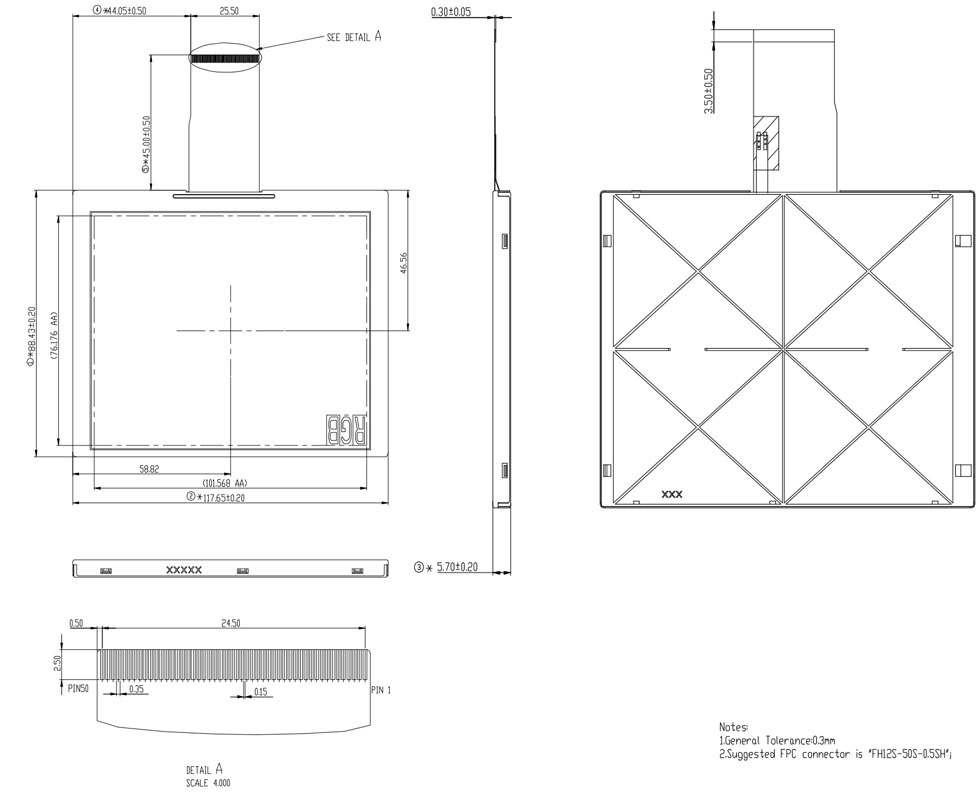

    DRAWING
