5.6 inch TFT LCD Monitor super high brightness outdoor, GDN-D567AT-GTI056TN52-U

Categroy:

TFT LCD

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 5.6 inch TFT LCD Monitor super high brightness outdoor, GDN-D567AT-GTI056TN52-U



    INTRODUCTION

    5.6 inch color TFT-LCD module display, 640x480 dots, super high brightness, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.






    FEATURE

    ● 640x480 resolution

    ● Super high brightness

     Video&VGA driver board

    ● Viewing Angle 50°/70°/70°/70°(L/R/U/D)

    ● Operating temperature -10℃~60℃

    ● Optional touch screen

    ● Optional 5.6 inch 4-wire resistive touch panel with USB driver board and cable

     Optional capacitive touch panel with USB controller board and cable

    *If you need the optional accessories, please contact us.*





    Keywords:
    • 5.6 inch TFT LCD Monitor super high brightness outdoor
  •

    PARAMETERS

    PART NUMBER GDN-D567AT-GTI056TN52-U
    SIZE 5.6''(4:3)
    RESOLUTION 640x480
    OUTSIDE DIMENSION OF LCD PANEL(mm) 126.5x100.0x8.0
    ACTIVE AREA OF LCD PANEL(mm) 112.896x84.672

    STRUCTURAL DIMENSION OF PCBA(mm)

    105.0x50.0x7.8

    VIEWING ANGLE (U/D/L/R) 50°/70°/70°/70°
    OPERATING TEMP. -10℃~60℃
    STORAGE TEMP. -20℃~70℃

    WORKING VOLTAGE

    DC12V(Typ.) (Min.9V, Max.15V)
    BRIGHTNESS 1350cd/m2(800~1600cd/m2)
    SIGNAL INPUT VGA,VIDEO

    BACKLIGHT

    LED

    CONTRAST RATIO

    500

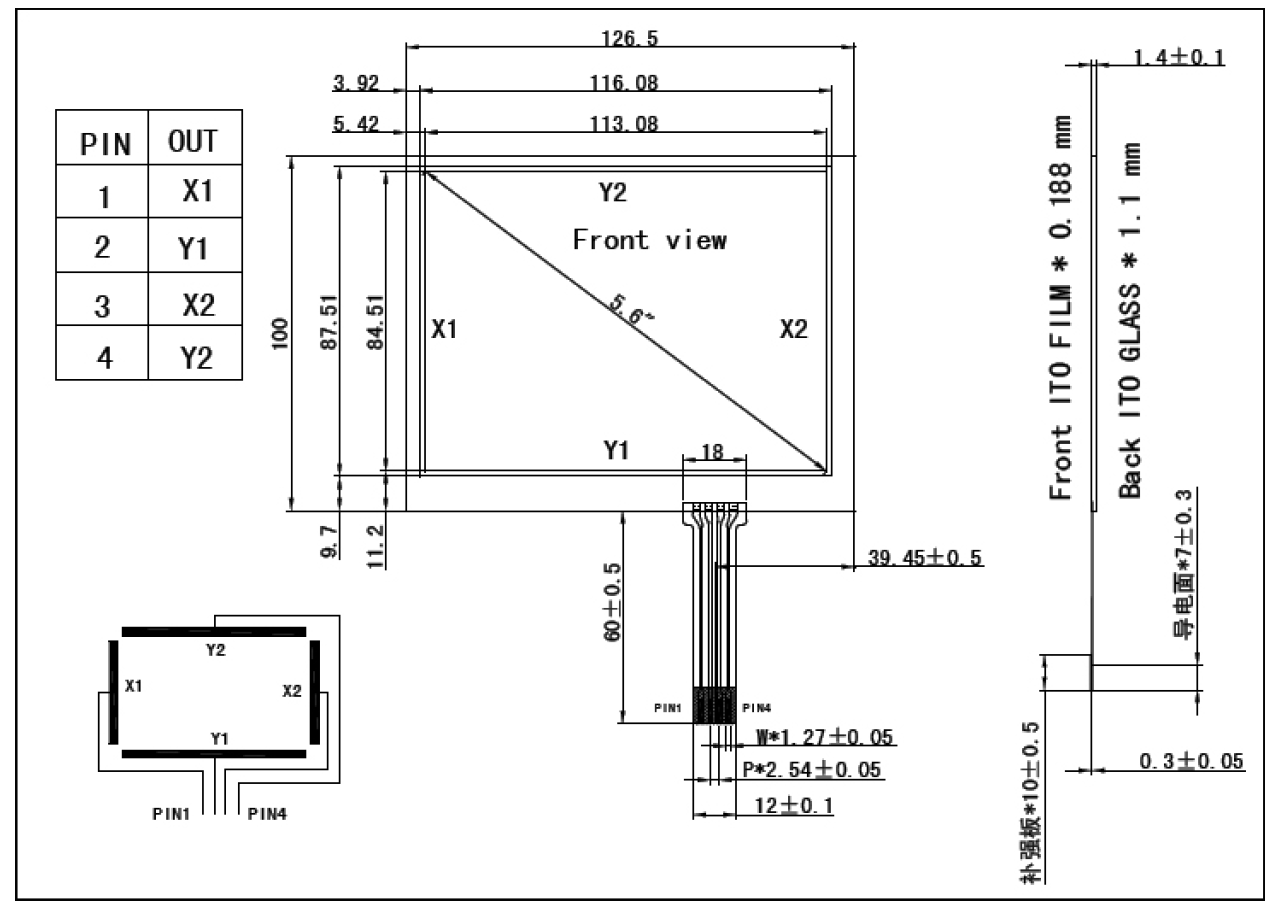

    DRAWING
