    • Commodity name: Large size 10.4 inch VGA Video input TFT LCD Monitor, GDN-D102AT-GTT104SDH01



    INTRODUCTION

    GD102M03/GDN-D102AT-GTT104SDH01 is 800 x (RGB) x 480 dots 10.4 inch color TFT-LCD module display with video & VGA driver board, 10.4” Touch Screen (Option), superior display quality, super wide view angle, and very high brightness. It can be used in any embedded systems, cars, industrial device, security and hand-held equipment which require display in high quality and colorful video.






    FEATURE

    ●  800x480 resolution

    ●  Video&VGA driver board

    ●  Viewing Angle 45°/65°/65°/65°(L/R/U/D)

    ●  Operating temperature -10℃~60℃

    ●  Optional touch screen

    ●  Optional 10.4 inch 4-wire resistive touch panel with USB driver board and cable

    ●  Optional capacitive touch panel with USB controller board and cable

    *If you need the optional accessories, please contact us.*







    Keywords:
    • 10.4 inch High Brightness VGA Video input TFT LCD Monitor
  •



    PARAMETERS

    PART NUMBER GD102M03/GDN-D102AT-GTT104SDH01
    SIZE 10.4''
    RESOLUTION 800 x 600
    OUTSIDE DIMENSION OF LCD PANEL(mm) 236.0x176.9x5.6
    ACTIVE AREA OF LCD PANEL(mm) 211.2x158.4

    STRUCTURAL DIMENSION OF PCBA(mm)

    128.8x85.4x16.0

    VIEWING ANGLE (U/D/L/R) 45°/65°/65°/65°
    OPERATING TEMP. -10℃~60℃
    STORAGE TEMP. -20℃~70℃

    CONTRAST RATIO(Typ)

    400:1
    BRIGHTNESS 400cd/m2
    SIGNAL INPUT Video&VGA

    WORKING VOLTAGE

    DC12V(Typ.) (Min.9V, Max.15V)

    BACKLIGHT

    LED

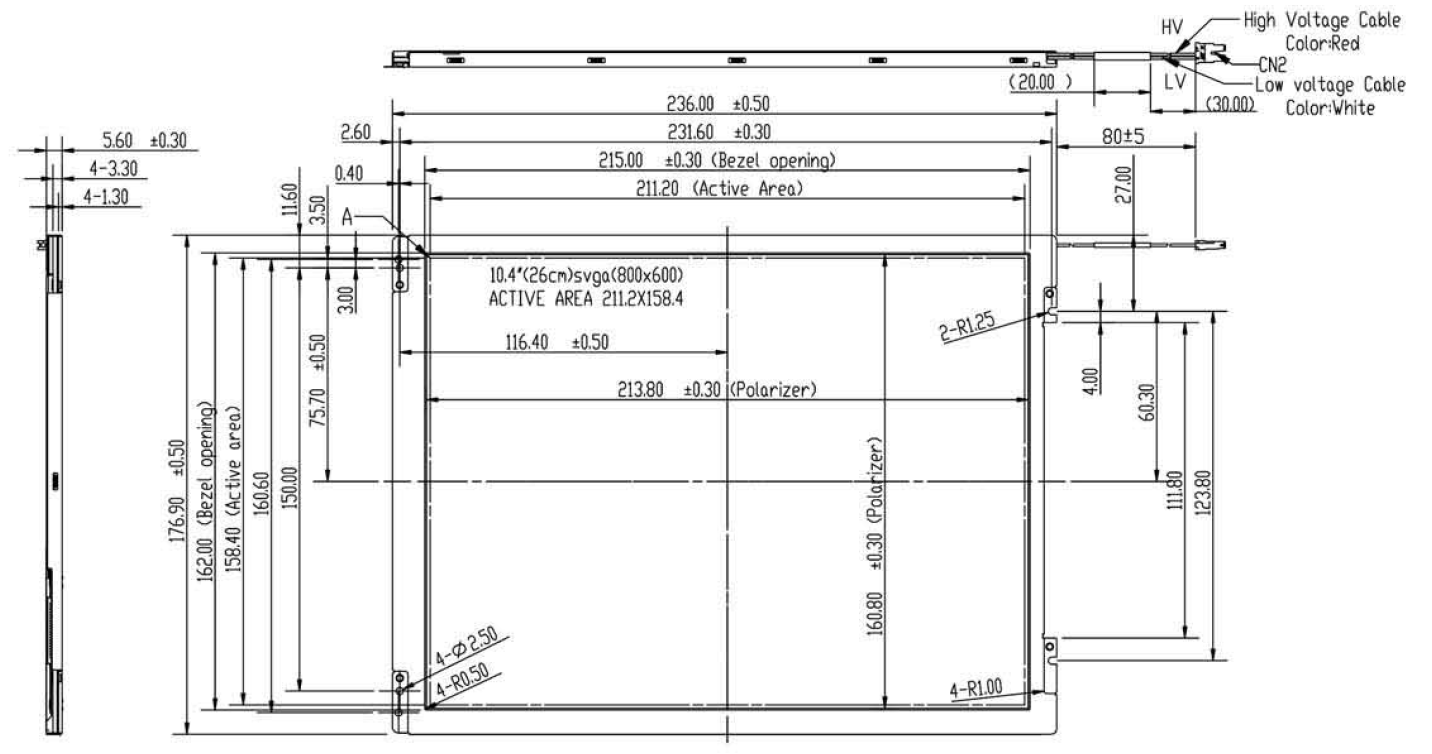

    DRAWING
