2.7 inch touch screen, for 2.7 inch e-paper display

Categroy:

Touch Screen

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.7 inch touch screen, for 2.7 inch e-paper display

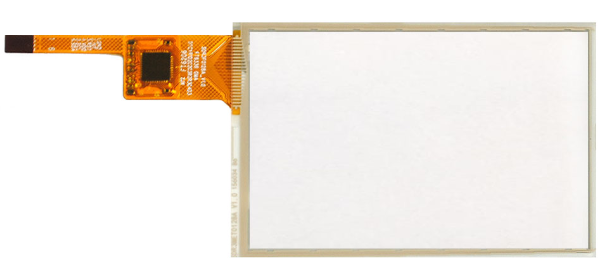

    TOUCH SCREEN FOR 2.7 INCH E-PAPER DISPLAY

    Outline Size(mm) 65.5x44.5
    Connector 6 pin FPC
    Touch IC FT6336G
    Number of Channels S20
    Operating Voltage 2.8V-3.3V
    Operating Current ≤5mA
    Operating Temperature 0℃~+45℃，≤90%RH

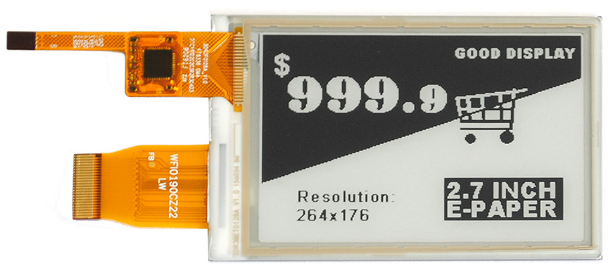

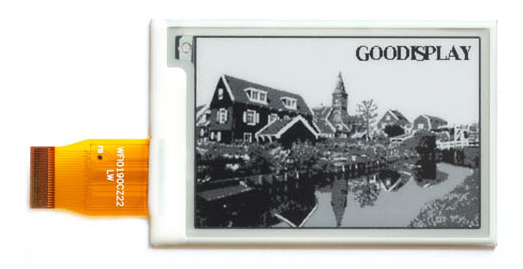

    MATCHED E-PAPER DISPLAY

    		 +

    		=

    2.7 inch Touch Screen



    GDEW027W3



    GDEW027W3-T











    Keywords:
    • Touch screen for 2.7 inch e-paper display

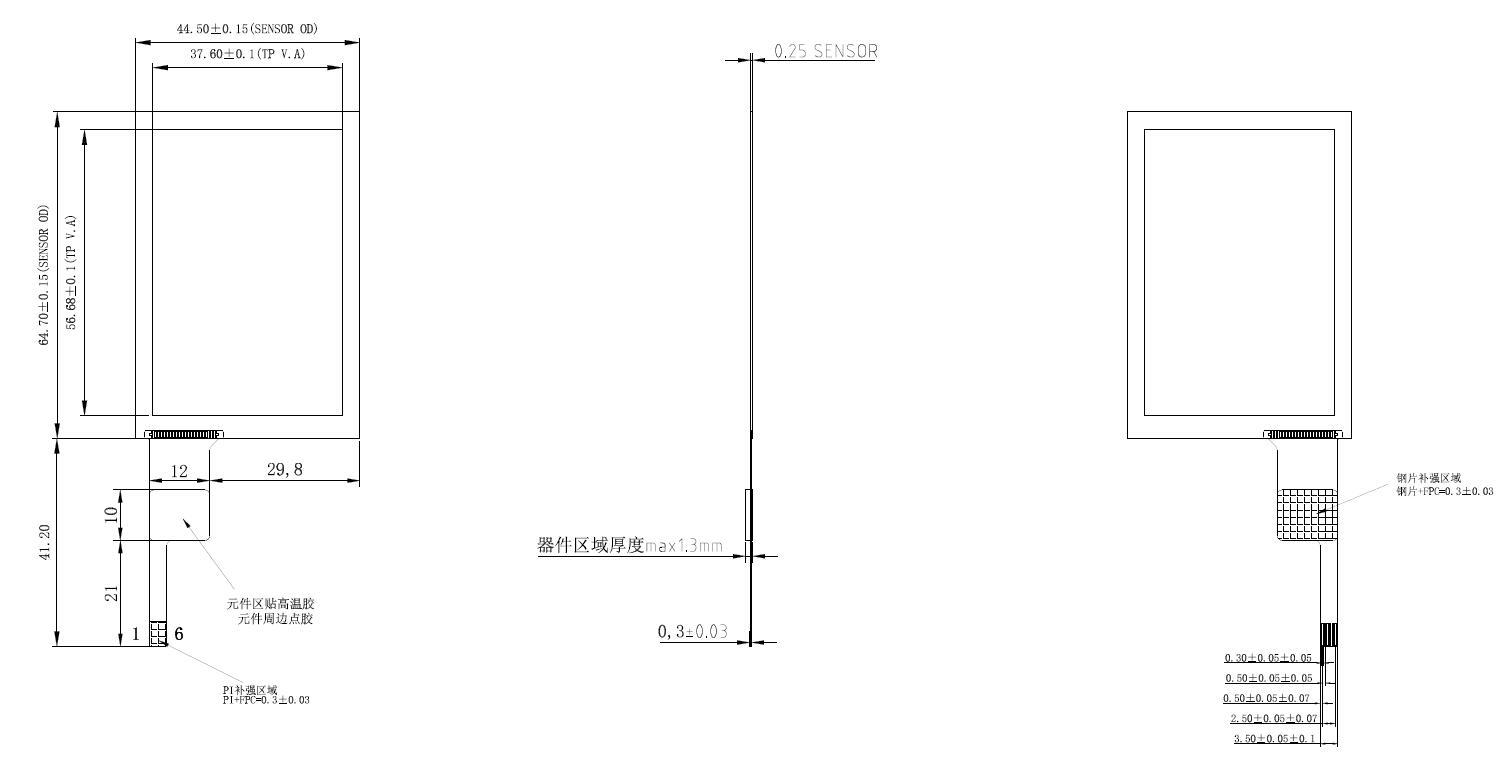

  • DRAWING









  •
