60G Millimeter Wave Radar non-contact Human Perception and motion tracking Radar, IR60TR1A

Categroy:

mmWave Radar Sensor

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 60G Millimeter Wave Radar non-contact Human Perception and motion tracking Radar, IR60TR1A

    INTRODUCTION

    IR60TR1A radar module is a radar module that uses 60G millimeter wave radar technology to realize the functions of moving human body perception, position detection and track tracking. This module is based on FMCW radar system to realize wireless perception of personnel status in specific places. It can be tested with our radar test board.(DERADAR-24G)

    If you want to learn more about how to choose the Radar Product, please Click Here.

    For up-to-date information on Millimeter Wave Radar Sensor, please visit IFLABEL website





    FEATURE

    ● Realize the function of position detection and track tracking of moving personnel;

    ● Limit the detection object to people with biological characteristics (moving or stationary), and eliminate the interference of other inanimate objects in the environment;

    ● This module can effectively eliminate the interference of non living objects, and can also realize the detection of non living moving objects;

    ● The product supports secondary development and adapts to a variety of scenarios;

    ● General UART communication interface, providing general protocol;

    ● Four groups of I \ O are reserved, which can be input and output according to user-defined or simple interface simulation;

    ● The output power is small and does no harm to human body;

    ● The module is not affected by temperature, light, dust and other factors, with high sensitivity and wide application fields.







    OPERATING MODE

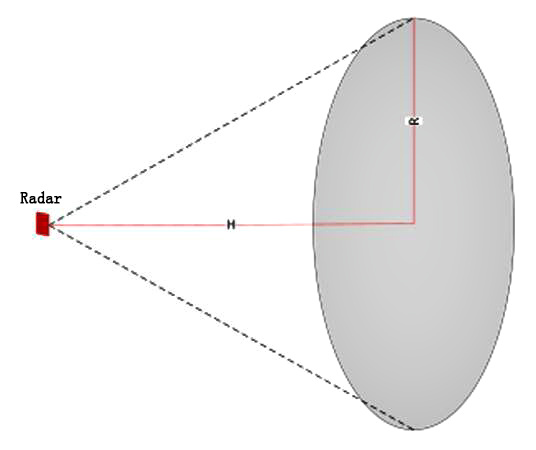

    The beam coverage of radar module is shown in. The radar coverage is a three-dimensional sector area with 100 ° horizontal and 100 ° pitch.



    Due to the influence of radar beam characteristics, the radar operates far in the normal direction of the antenna surface, but the operating distance deviates from the normal direction of the antenna will become shorter.





    INSTALLATION METHOD

    There commended installation method of this radar module is horizontal installation.

    Horizontal-mounted

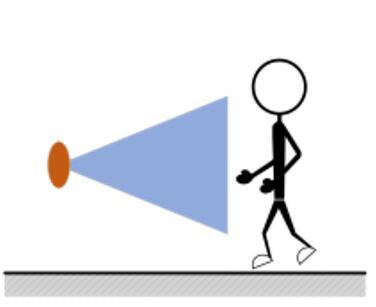

    The radar is installed horizontally (as shown in the Figure), and the radar is fixed on the wall or placed on the desktop, and the radar beam irradiates the human body in a positive direction.








    MAIN FUNCTION

    1. MainFunctions

    1) Moving target detection;

    2) Slight motion target detection;

    3) Statistics function for counting people number;



    2. Main Parameters for Performance

    1) Max Detection Range:  ≤12m;(moving objects, limited to adults)

    2) Stationary Detection Range:≤8m;(sitting, radial direction)

    3) Ranging Accuracy:≤0.5m;

    4) Angle Measurement Accuracy:≤5°;(object ≥2m)

    5) Refresh Rate for Motion Detection:≥10Hz;

    6) Response Time for Stationary Detection:≤30s;

    7) Maximum of Counting Personnel Number:10;

    8) Maximum of Tracking of Personnel:3;





  • ELECTRICAL PARAMETERS

    1. Detection Angle and Distance



    Parameters

    Min Typ Max Unit
    Detection Range of Moving Personnel - 12  - m
    Perception Distance of Static/ Slight-moving Personnel   6 m
    Radar Detection Angle(Horizontal) - 100 - °
    Radar Detection Angle(Pitch) - 100 - °







    2. Electrical Characteristics



    Operating Parameters

    Min Typ Max Unit
    Operating Voltage(VCC) 4.5 5.0  6 V
    Operating Current(ICC) 90 93 100 mA
    Operating Temperature(TOP) -20 - +60
    Storage Temperature(TST) -40 - +80







    3. RF Performance



    Transmit Parameters

    Min Typ Max Unit
    Operating Frequency(fTX) 58 - 63.5 GHz
    Transmitting Power(Pout) - - 6 dBm











    EXTERNAL DIMENSION AND I/O PIN ASSIGNMENT

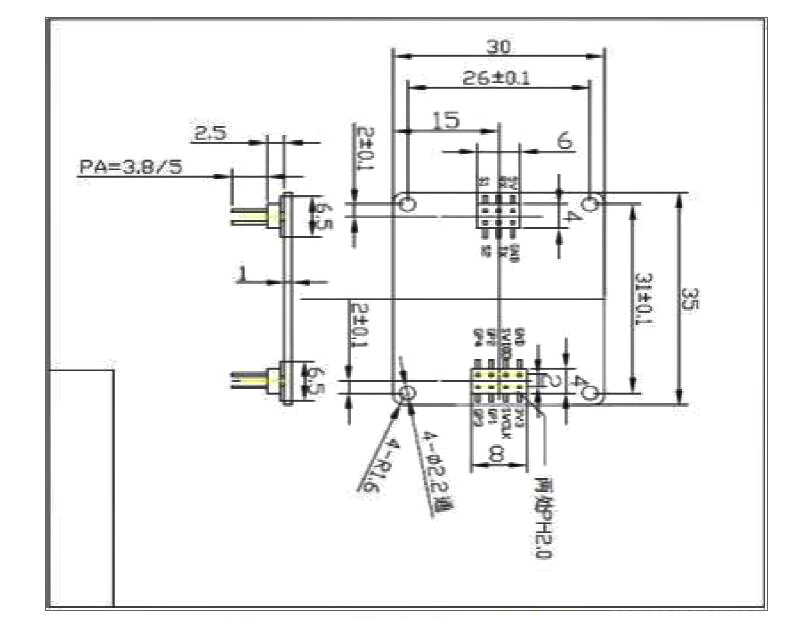

    1. Outline Dimension





    2. Pin Definition

    Interface

    Pin

    DESC

    Typical

    Remark

    Interface 1

    1

    5V

    5.0V

    Positive end of power input

    2 GDN

    Ground
    3 RX

    Serial port receive
    4 TX

    Serial port send
    5 S1 3.3V/0V

    6 S2 3.3V/0V

    Interface 2

    1

    3V3

    3.3V

    Output power supply

    2 GND

    Ground
    3 SL

    Reserve
    4 SD

    Reserve
    5 GP1

    Spare extension pin
    6 GP2

    Spare extension pin
    7 GP3

    Spare extension pin
    8 GP4

    Spare extension pin
