Millimeter wave Radar Sensor for Fall Detection, IR24FDA

Categroy:

mmWave Radar Sensor


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: Millimeter wave Radar Sensor for Fall Detection, IR24FDA

    INTRODUCTION

    The IR24FDA radar module is a radar detection module based on the millimeter wave Doppler radar theory, which realizes human biological motion perception and human biological perception. This module is based on the enhanced Doppler radar signal processing theory, and realizes wireless perception of the status of personnel in a specific place through the synchronous sensing technology of Doppler parameters of personnel movement and physiological parameters of personnel. It can be tested with our radar test board.(DERADAR-24G)

    If you want to learn more about how to choose the Radar Product, please Click Here.

    For up-to-date information on Millimeter Wave Radar Sensor, please visit IFLABEL website

    This module has the following working characteristics:

    1.  This module limits the detection object to people (moving or stationary), and eliminates the interference of other inanimate objects in the environment;

    2.  This module realizes real-time monitoring and early warning of falling movements;

    3.  This module realizes the synchronous perception function of moving personnel and stationary personnel;

    4.  This module effectively eliminates the interference of non-living objects, and can also detect non-living moving objects;

    5.  The output power is small, which does not cause harm to the human body;

    6.  The module is not affected by temperature, light, dust and other environmental factors, has high sensitivity and a wide range of applications.






    FEATURE

    ●  Detection of stationary human body;

    ●  24GHz millimeter wave radar sensor;

    ●  Based on the frequency modulated continuous wave FMCW radar technology, it realizes the two-dimensional area personnel perception function

    ●  Realize the synchronous perception function of moving and stationary people;

    ●  Maximum distance of motion perception: ≤13m;

    ●  Maximum distance of slight motion perception: ≤5m;

    ●  Maximum distance of human perception: ≤3m;

    ●  Antenna beam width: horizontal 90°/vertical 60° Fan-shaped beam;

    ●  The maximum distance of fall detection: 1.5 meters (radius)

    ●  Nobody to someone: within 0.5 seconds;

    ●  Someone to nobody: more than 1 minute.







    INSTALLATION METHOD

    The suggested installation method of this radar module is top installation, as shown below.

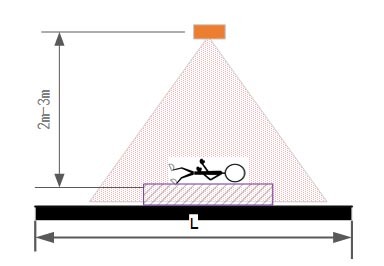

    Top installation





    MAIN FUNCTION

    1.  Motion detection

    2.  Slight motion detection

    3.  Fall detection

    4.  Action status evaluation

    5.  Early warning



    Human body abnormality judgment method

    1)  Record the starting point of the person entering the bathroom and record the stay time;

    2)  If there is a rapid fall action, the radar will output an alarm signal for a suspected fall;

    3)  After the radar judges the fall, it will continuously output the motion sign parameter signal, if the sign signal is always low, the radar will output a signal confirming the fall.

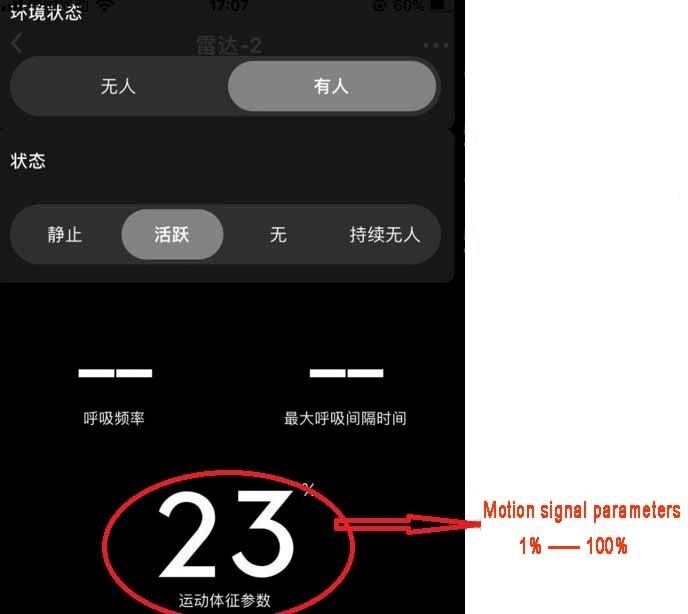

    Movement sign parameter description

    Static (only breathing but no limb movement): output value: 1%-5%

    Micro-action (only limb movement): output value: 5%-20%

    Walk around: output value 15%-60%

    Running: output value 50%-100%








    APPLICATION

    The respiration and sleeping monitor radar IR24BDA

    * The sleep monitoring function requires the sleep monitoring radar IR24SMA.

    * The human presence detection function requires the human presence detection radar IR24VDA

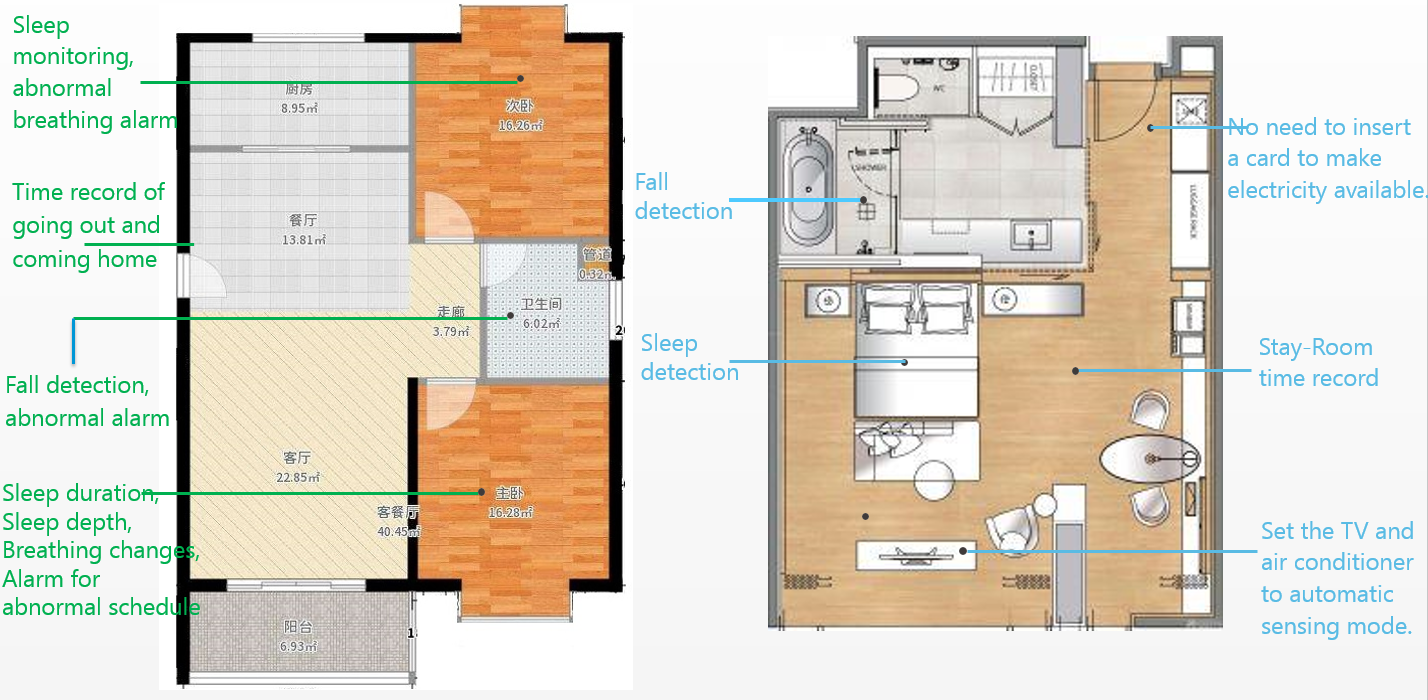

    Typical application scenario 1 — Home & Hotel

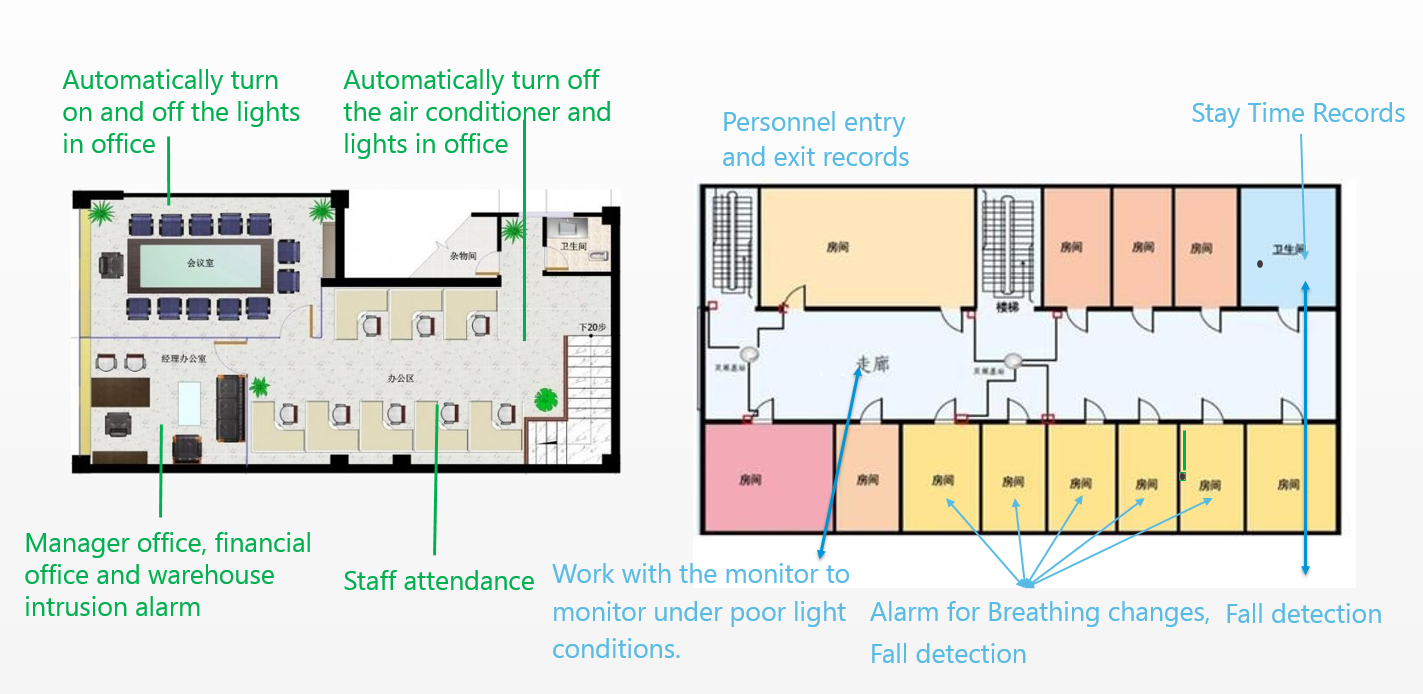

    Typical application scenario 2 — Office & Hospitals & Nursing homes





  •

    ELECTRICAL PARAMETERS

    1. Detection Angle and Distance


    Parameters Min Typ Max Unit
    IR24FDA (8 points narrow beam antenna)
    Detecting Distance of active Personnel - - 13 m
    Perception Distance of Static/Active Personnel - - 5 m
    Fall detection distance - - 1.5(radius) m
    Radar Detection Angle(Horizontal) - 90 - degree
    Radar Detection Angle(Pitch Angular) - 60 - degree






    2. Electrical Parameters


    Parameters Min Typ Max Unit
    Voltage(VCC) 4.5 5.0 6 V
    Current(ICC) 90 93 100 mA
    Operating IO Input/Output Current (IIO) - 8 20 mA
    Operating Temperature(TOP) -20 - +60
    Storage Temperature(TST) -40 - +80






    3. RF Performance


    Transmission Parameters
    Parameters Min Typ Max Unit
    Working Frequency(fTX 24.0 - 24.25 GHz
    Transmit Power(Pout - - 6 dBm

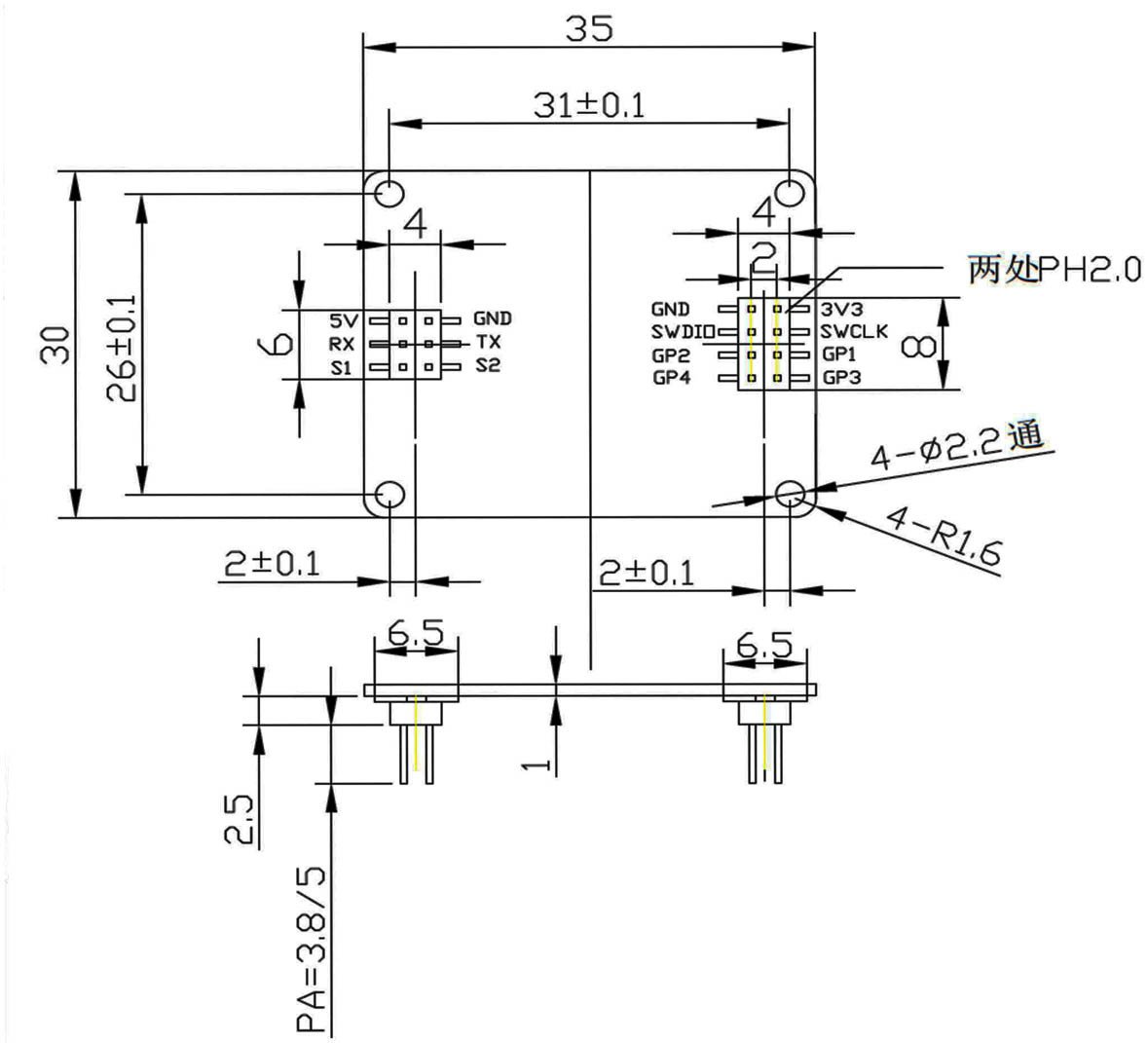

    DRAWING
