Millimeter Wave 24GHz Radar Sensor for Sleep Monitoring, ST-SMB1W

Categroy:

mmWave Radar Sensor

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: Millimeter Wave 24GHz Radar Sensor for Sleep Monitoring, ST-SMB1W

    INTRODUCTION

    Human sleep monitoring radar is based on millimeter wave Doppler frequency modulated continuous wave radar system to realize the static perception of human biological movement and human biological perception, realize the wireless perception of personnel status in specific places through the synchronous perception technology of personnel movement Doppler parameters and personnel physiological parameters, and realize the scene linkage through the wireless signal notification gateway; suitable for home, hotel, office and other places. (not affected by temperature, humidity, noise, airflow, dust, light and other factors)

    Search “TuyaSmart”in APP store,install, register with phone number and log in, then you could use the radar through this APP.

    For up-to-date information on Millimeter Wave Radar Sensor, please visit IFLABEL website







    SENSING RANGE

    Millimeter wave radar can sense the existence of human body through large action or micro action during human sitting. When the radar detects the existence of human body, it will trigger somebody command to report, and the indicator light is always on; When the human body is not sensed, the nobody command will be triggered and the indicator light will go out.

    The sleep monitoring radar will monitor within the coverage the states of personnel including in/out of bed, sleep state and will output sleep report.


    Diagram of Sleep Monitoring Range:



    The detection range of sleep monitoring for top-mounted radar is 2m*2m and it should cover the whole bed. It is recommended to be installed right above the bed and no higher than 2.75m.








    INSTRUCTION

    (1) Radar scanning will penetrate objects with low density such as glass, veneer and gypsum board partition wall, but cannot penetrate conductive media such as human body, liquid and metal objects. Please confirm the installation position according to the room layout before installation;

    (2) The installation method is top mounted. It is recommended that the installation height be within 3 M. The installation scene is recommended to be in slippery areas such as kitchen and toilet;

    (3) Power supply via USB interface (Type-C)

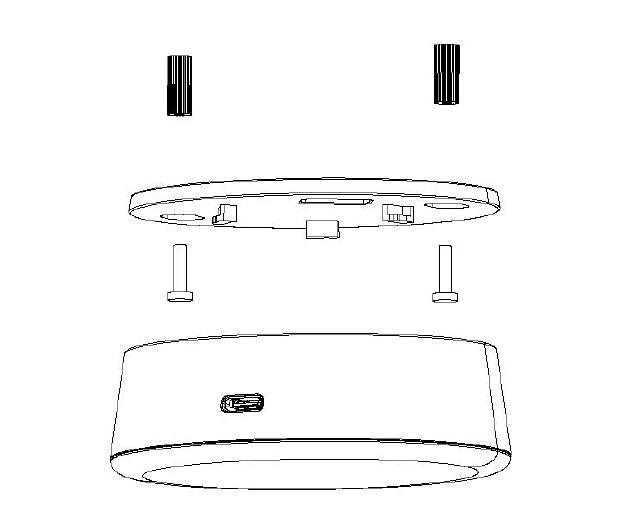

    (4) Use the upper wall mounting bracket to drill the wall and push in the capsule;

    (5) Push in the expansion screw to secure the mounting bracket;

    (6) Align the radar base with the snap of the mounting bracket and fix the radar in the direction of rotation;

    (7) Power-on the device;










  • PARAMETERS

    PART NUMBER

    ST-SMB1W

    COMMUNICATION

    WIFI (2.4G)

    OUTLINE DIMENSION

    29.5x73x86mm

    POWER INPUT

    5V==1A

    RADAR FREQUENCY

    24.05~24.25GHz

    MEASURING PRINCIPLE

    Doppler

    TRANSMITTING POWER

    6dBm

    HORIZONTAL DETECTING ANGLE

    90°

    VERTICAL DETECTING ANGLE

    60°

    SITTING DETECTING RANGE

    Max 4m

    MOVEMENT DETECTING RANGE

    Max 12m

    OPREATING TEMPERATURE

    -10℃~50℃

    OPERATING HUMIDITY

    20%-85%(non-condensing)

    INSTALLATION

    Top-mounted



    EXTERNAL APPEARANCE





Related information download

  • File size: 3.2MB

Related information download
