2.9 inch shell case accessories for electronic shelf label (one battery), EW029F2

Categroy:

Plastic Enclosure

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.9 inch shell case accessories for electronic shelf label (one battery), EW029F2

    INTRODUCTION

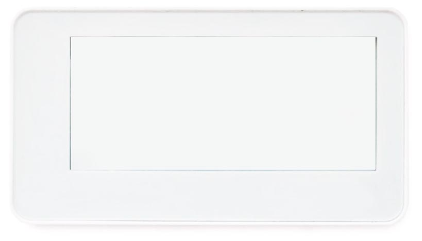

    This is a 2.9 inch enclosure shell matching 2.9 inch esl tag, single battery version, suitable for all 2.9 inch black/white, black/white/red and black/white/yellow e-paper display(Click here to see the same size e-paper list). The shell is made of ABS, and it is equipped with a transparent panel.

    2.9 inch esl tag has a wide range of applications: such as supermarkets, warehouses, convenience stores, hospital wards, etc.






    FEATURES

    The shell is made of ABS, which has good strength and toughness. It reserves enough space for users to DIY the drive board.
    Equipped with transparent panel.
    Single battery version(If you need dual battery version, please click here).

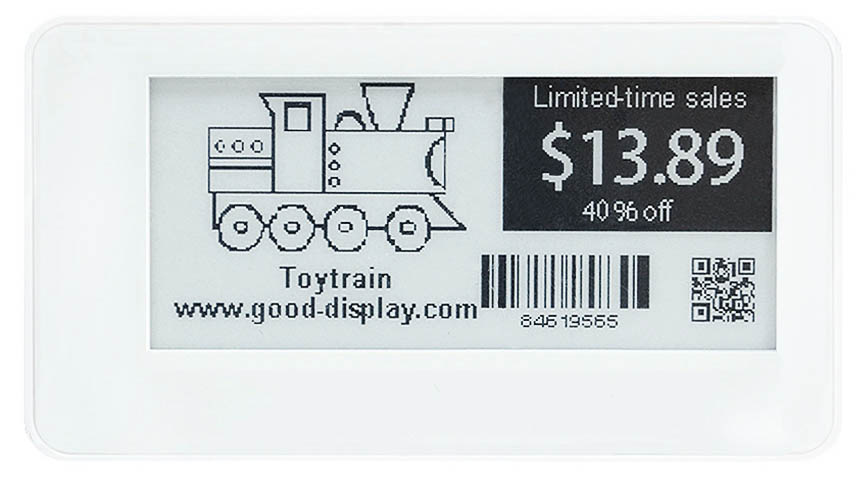

    EXAMPLE OF MATCHING WITH E-PAPER



    +

    =

    EW029F2(Enclosure for esl tag)

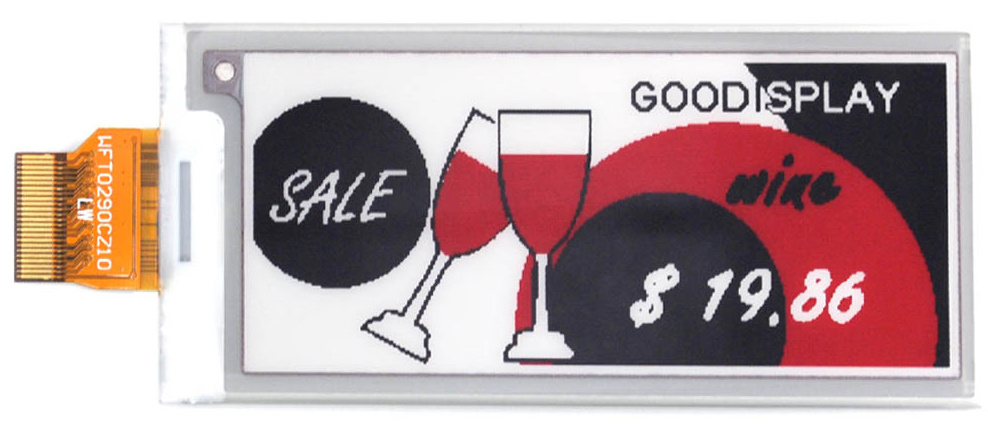

    GDEW029Z13



    GDN029R(NFC Label)

    +

    =

    EW029F2(Enclosure for esl tag)



    GDEY029T94



    GDN029W(NFC Label)







  •

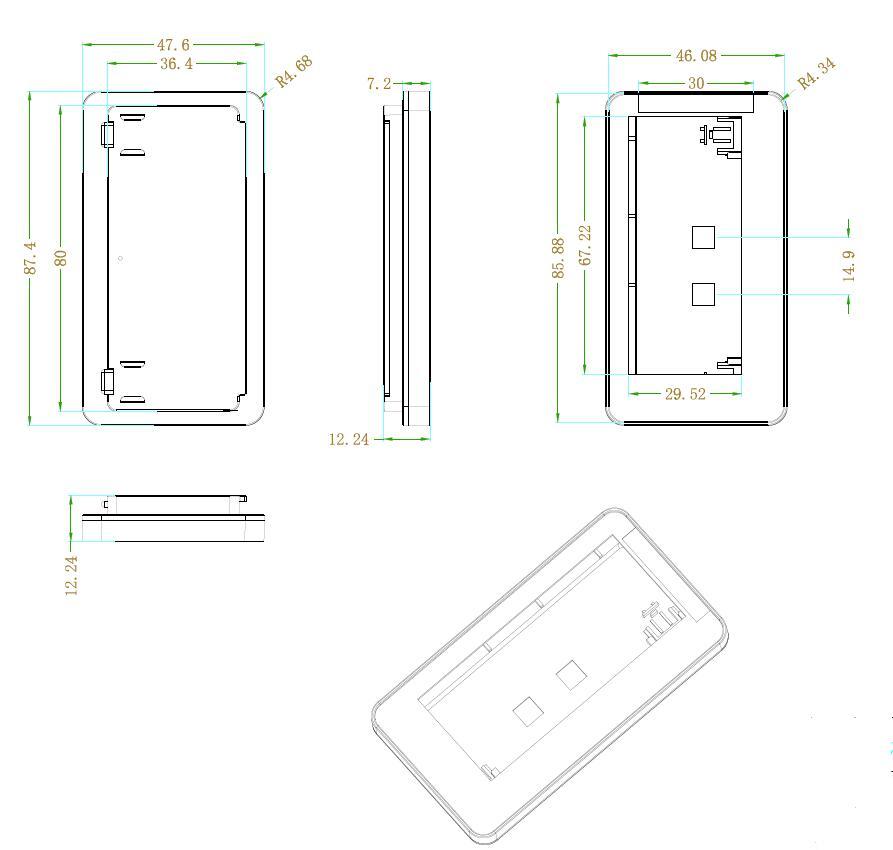

    SHELL DRAWING
