STM32 Development Kits For Parallel E-paper displays

Categroy:

Evaluation Kit


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: STM32 Development Kits For Parallel E-paper displays

    INTRODUCTION

    This Demo Kit is aim to help the developers quickly and smoothly to use Good Display's electronic paper display. It is specially designed for the development of electronic paper display with parallel port such as the refresh function of 4.3 inch, 6 inch and 8 inch.The USB serial port functioan added to be convenient to the used Online debugging.

    DESTM32-T development board including the mainboard DESTM32 L1-11 and adapter board DESTM32-Tcon-11 two parts. This pinboard DESTM32 -T is used for 4.3 inch ,6 inch and 8 inch E-paper display.



    SMT Development Kits for Parallel EPDs

    DESTM32-T

    +

    =

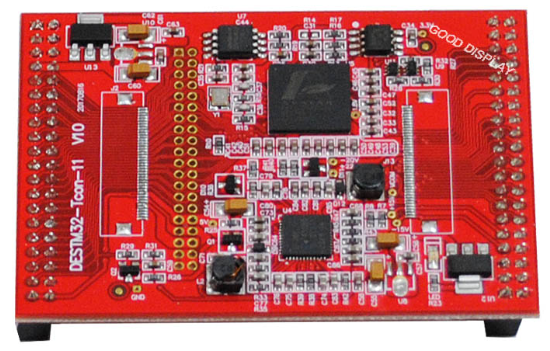

    DESTM32-Tcon-11



    DESTM32 L1-11

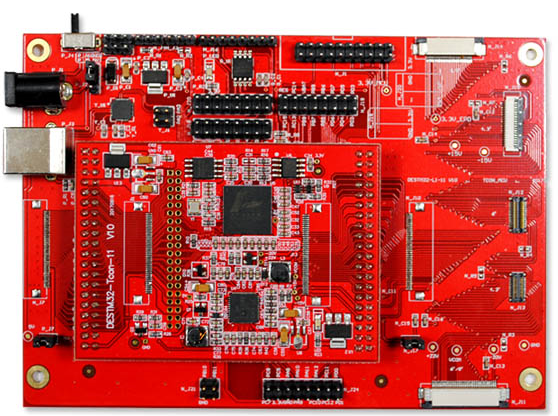

    DESTM32-T



  • PARAMETERS

    PARAMETER

    SPECIFICATIONS

    PLATFORM STM32

    FUNCTION

    Drive E-paper Display

    SUITABLE SIZE

    4.3''/6''

    INTERFACE

    USB

    POWER INPUT

    DC5V

    FEATURE

    Fully Refresh/ Partial Refresh

    GRAYSCALE LEVEL

    Max 16 Grayscale

    OPERATING TEMP.

    -20℃~70℃

    RESERVED FUNCTION

    USB to Serial

    RECOMMENDED TOOL

    Keil 4

    EXAMPLE CODE

    Available

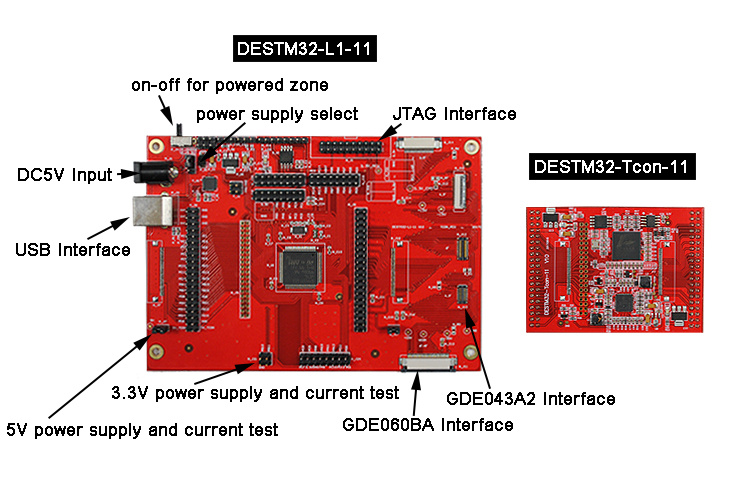

    STRUCTURE
