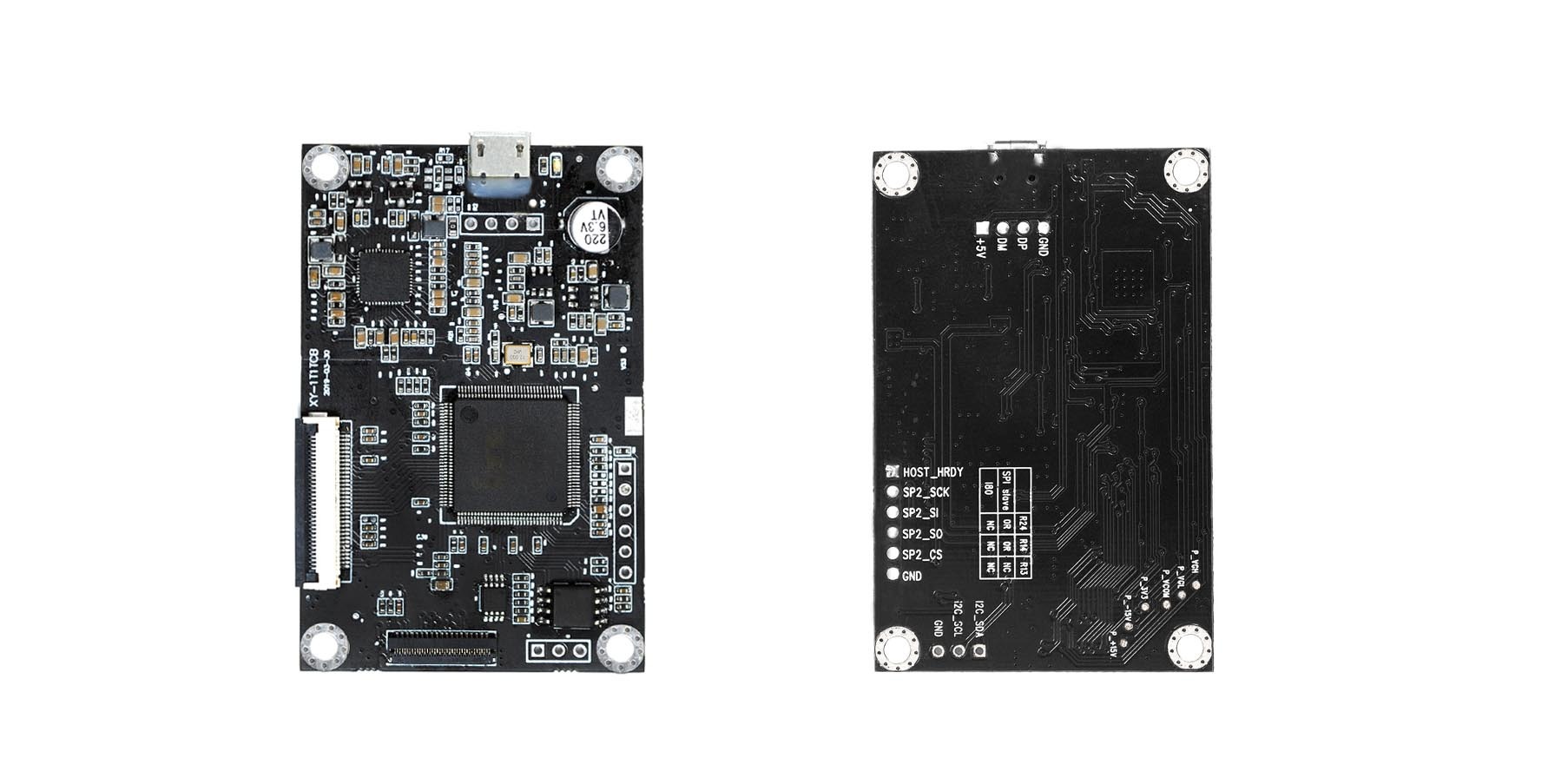

- Commodity name: E-ink Display Kit for 9.7 inch E-Paper Display, DEXA-C097
INTRODUCTION
This e-paper display kit DEXA-C097 designed for 9.7 inch Parallel Interface e-ink display aims to help users to begin constructing our electronic paper display with provided source code to create more differentiated solutions. It supports being updated by computer directly.
UPPER COMPUTER SOFTWARE OPERATION PROCEDURE
1) Connect the USB interface of driver board to the USB interface on PC.
2) Open the ITE_TCON_DEMOAP_V.2.5.4.

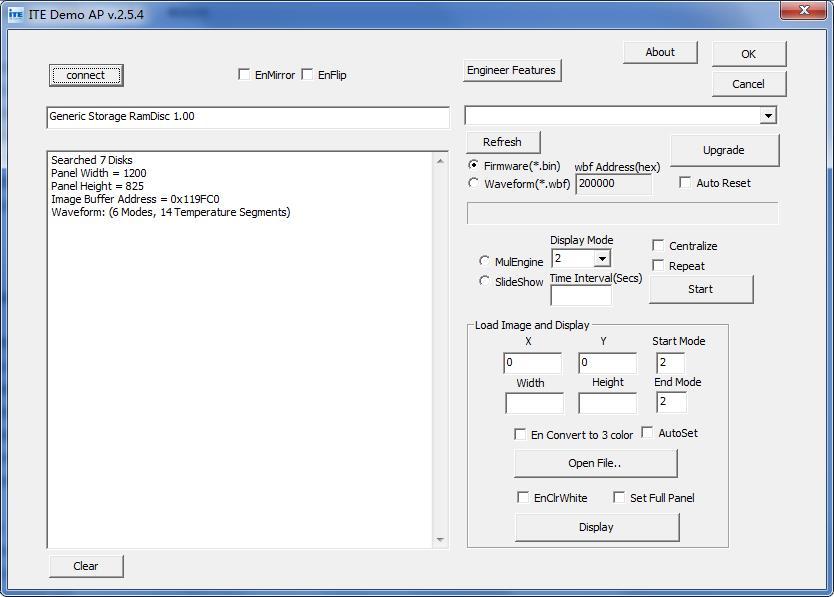

3) Click ‘Connect’ normal situation as shown below:

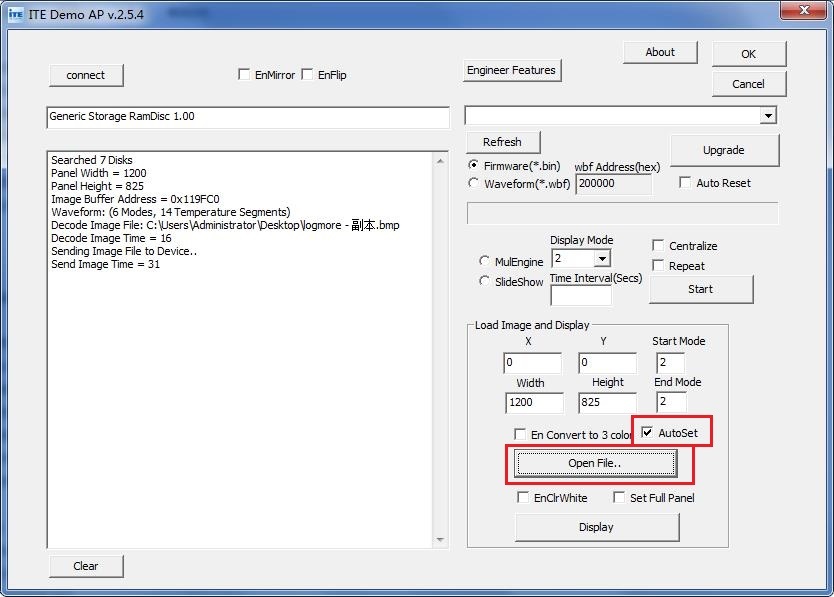

4) Tick the‘AutoSet’box, click ‘Open File’, select the related image (the image resolution should be consistent with the screen resolution) to preview the picture and then click "OK", as shown below:

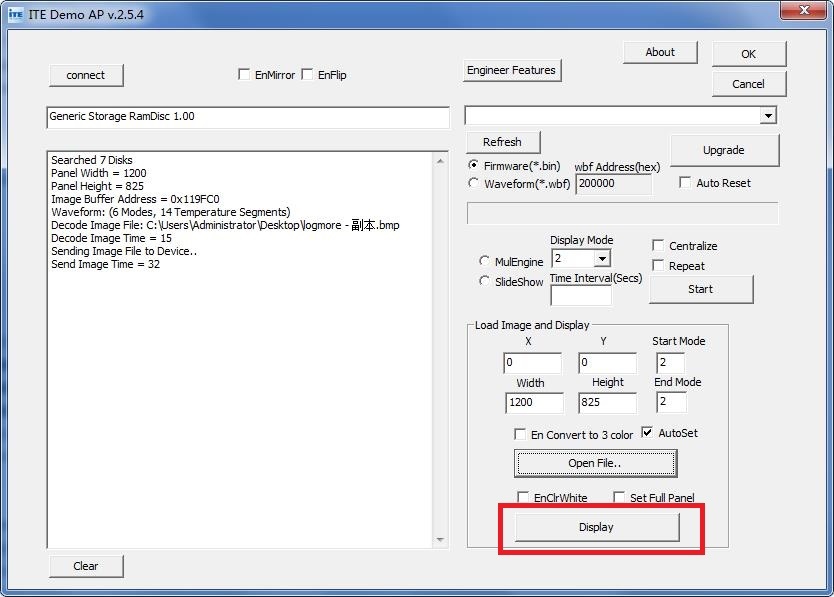

5) Finally, click Display, and the e-paper ink screen will display the selected image.
-
PARAMETERS
PART NUMBER
DEXA-C097

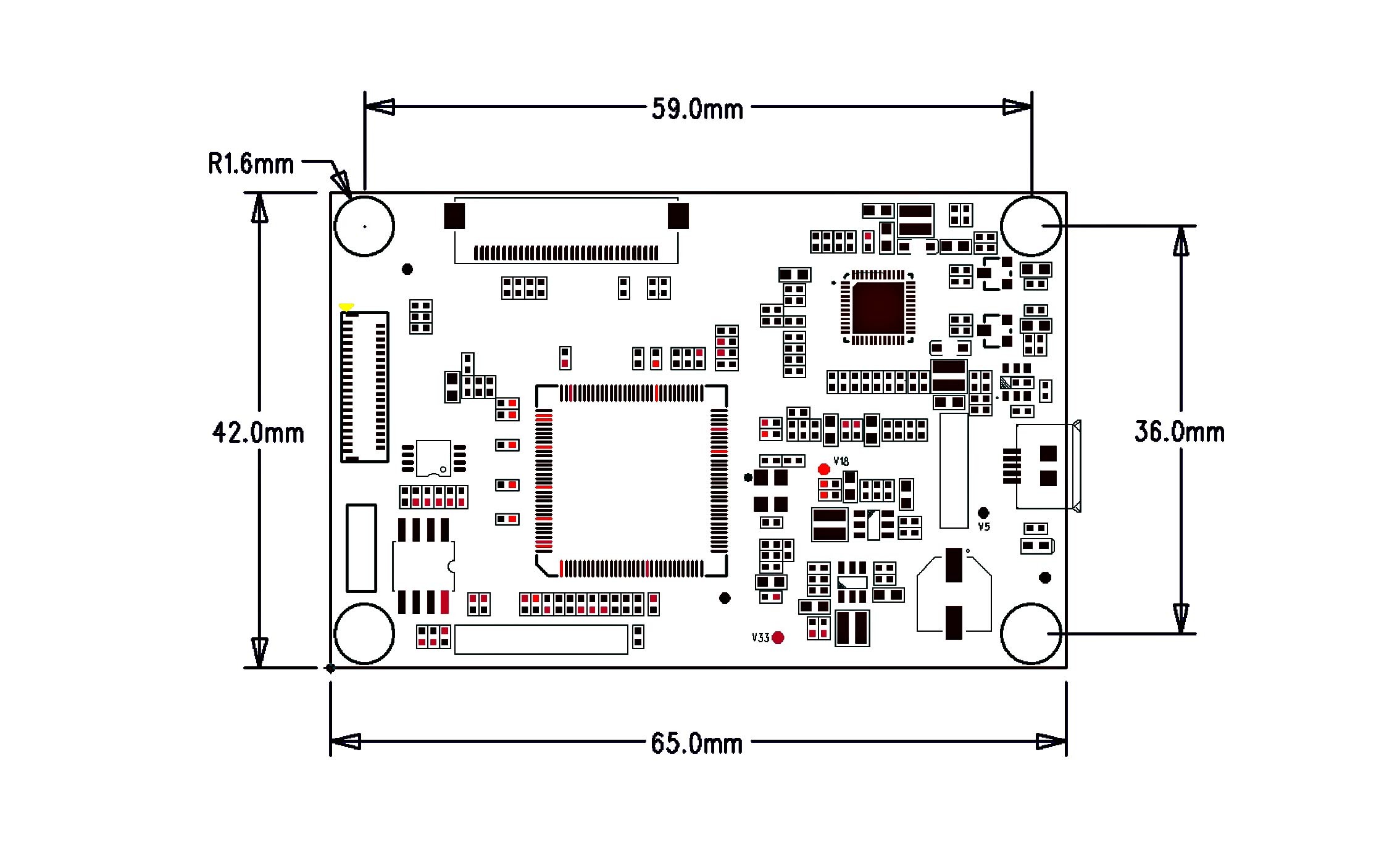

OUTSIDE DIMENSION (mm) 65x42mm POWER SUPPLY
DC 5V
INTERFACE
USB Interface
OPERATING TEMP.
-20℃~70℃
OPERATING CURRENT
50mA
MAIN FUNCTION
Designed for 9.7 inch EPD, assist developers to test electronic ink screen applicaiton development faster and more smoothly. Directly through the upper computer software to transfer the images.

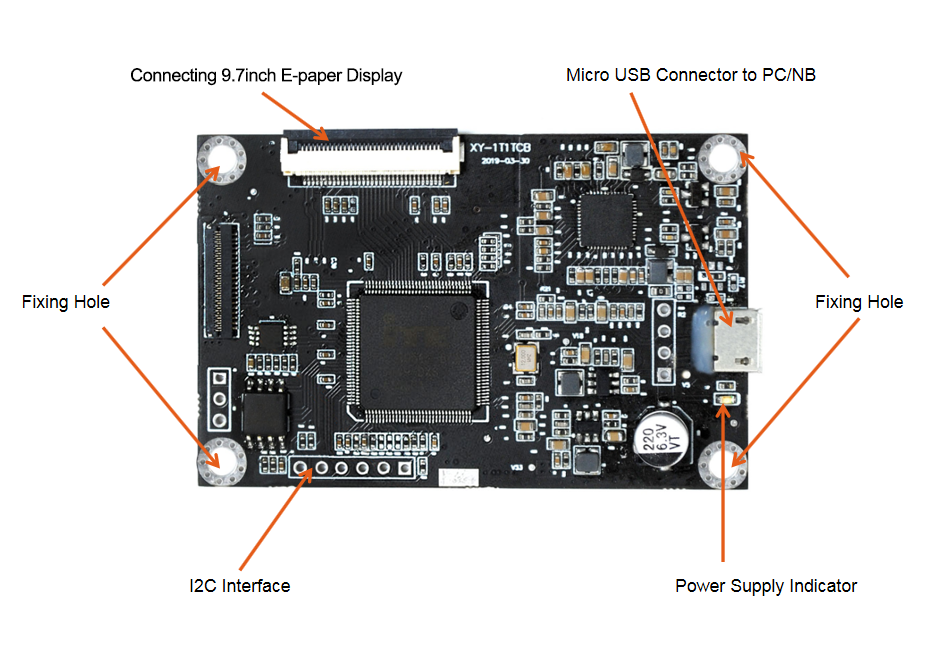

STRUCTURE
