8 Digit LCD Panel, EDS806

Categroy:

Monochrome LCD


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 8 Digit LCD Panel, EDS806



    Customizable Segment LCD, VA LCD/ Graphic Dot Matrix LCD/ Backlight Optional

    PARAMETERS



    PART NUMBER

    EDS806

    DISPLAY CONTENT

    8-digits

    OUTLINE DIMENSION(mm)

    93.85x30.48x2.8

    VIEWING DIRECTION

    6:00/12:00 o'clock

    BACKLIGHT COLOR

    White ,(Optional)

    OPERATING VOLTAGE

    3V/5V

    OPERATING TEMP.

    Normal temp LCD:-10℃~60℃

    Extended temp LCD: -20℃~70℃

    Super-extended temp LCD: -40℃~80℃

    STORAGE TEMP.

    Normal temp LCD:-20℃~70℃

    Extended temp LCD: -30℃~80℃

    Super-extended temp LCD: -45℃~85℃

    DRIVE METHOD

    Static

    DISPLAY TYPE

    TN Positive

    POLARIZER MODE

    Reflective/Transflective/Transmissive

    CONNECTOR

    Pin (68 Pins) Pin Length is optional

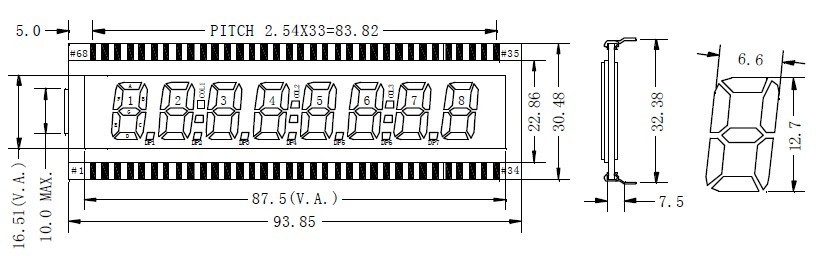

    DRAWING











  •

    PRODUCT LIST

    PART NUMBER DIGIT OUTLINE DIMENSION(mm)
    EDC004 1 Digit 50x33x2.8
    EDC006 1 Digit 76.2x55.88x2.8
    GDC02693 2 Digits 7.5x10x2.8
    EDS819 2 1/2 Digits 30x26.17x2.8
    EDS812 3 Digits 30.7x16.2x2.8
    EDS801 3 1/2 Digits 50.8x22.86x2.8
    EDS803 3 1/2 Digits 50.8x30.48x2.8
    GDC04212 4 Digits 42x23x2.8
    GDC0209 4 Digits 23x10x2.8
    EDC190 4 Digits 50.8x30.48x2.8
    EDS815 4 Digits 69.85x38.1x2.8
    EDS805 4 Digits 50.8x30.48x2.8
    EDS808 4 1/2 Digits 50.8x22.86x2.8
    GDC03828 5 Digits 81x30.5x1.1
    ED139 6 Digits 137.16x46.38x2.8
    EDS810 6 Digits 93.85x38.1x2.8
    GD46532 6 Digits 37x25.6x2.8
    EDS825 6 Digits 140x46x2.8
    GDC0689 6 Digits 42x25x2.8
    GDC1156 6 Digits 253x65.5x2.8
    EDC0103 8 Digits 64x22x2.8
    EDS806 8 Digits 93.85x30.48x2.8
    GDC9188 12 Digits 156x99x2.8
    GDC8811D -- 36x36x0.5
