128x64 dots LCD Display Module low temperature -40℃~80℃, YM12864J-7

Categroy:

Monochrome LCD

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 128x64 dots LCD Display Module low temperature -40℃~80℃, YM12864J-7



    Customizable Segment LCD, VA LCD/ Graphic Dot Matrix LCD/ Backlight Optional

    PARAMETERS

    PART NUMBER

    YM12864J-7

    DOT FORMAT

    128X64

    OUTLINE DIMENSION(mm)

    93.0x70.0x13.5

    VIEW AREA(mm)

    72.0x40.0

    DOT SIZE(mm)

    0.48x0.48

    OPERATING TEMP.

    Extended temp LCD:-40℃~80℃

    STORAGE TEMP.

    Normal temp LCD:-40℃~85℃

    DOT PITCH(mm)

    0.52x0.52

    CONTROLLER

    S6B0108

    OPERATING VOLTAGE

    5.0V

    BACKLIGHT

    LED

    IC PACKAGING

    COB

    NET WEIGHT

    35g

    FEATURE

    Built-in ITO Heater, Auto-bootting up at -20℃











  •

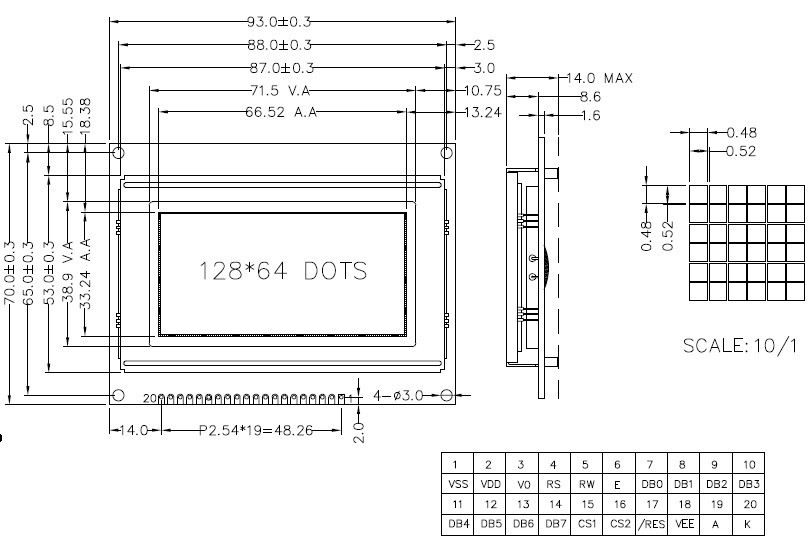

    DRAWING
