Custom LCD for Laser Range Finder

Categroy:

Monochrome LCD

Keywords:

paper


messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: Custom LCD for Laser Range Finder



    Customizable Segment LCD, VA LCD/ Graphic Dot Matrix LCD/ Backlight Optional

    INTRODUCTION

    This customized LCD is mainly used in a precision laser rangefinder. This kind of laser rangefinder is often used in hunting, golf, field investigation and construction. It can also measure small wires and other objects.

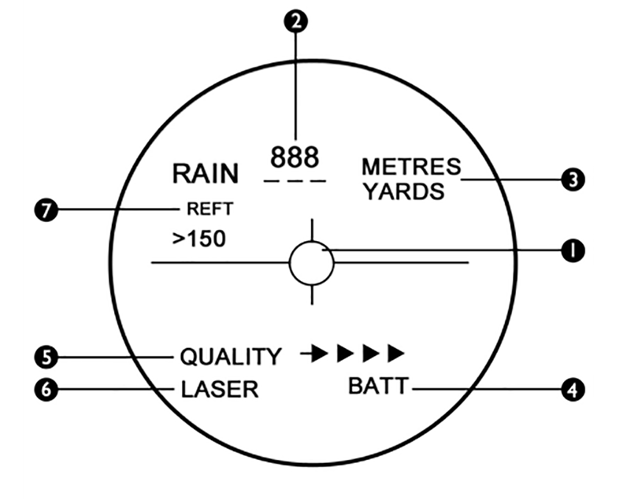

    SCREEN PARAMETER

    1. Centre aim point

    2. Distance display

    3. Distance unit

    4. Low battery indicator

    5. Distance measuring quality

    6. Laser emission, pulses when in use

    7. Modes:

    • RAIN - eliminates rain interference

    • REFL - for use in foggy conditions

    • > I 50 - eliminates interfering objects within 150m ego electrical wires and branches








    APPLICATION







  •

    JUDGMENT STANDARD

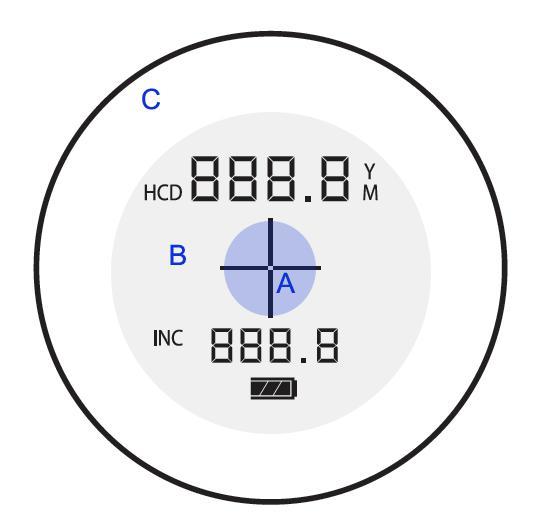

    Schematic diagram of regional division:





    White/black dots

    No.

    Dot area

    Area A

    Area B

    Area C

    Edge of Area C




    1

    0.03mm²

    5

    10

    10

    Ignorable

    Point shape

    2

    0.05mm²

    3

    0.08mm²

    0

    5

    5

    Ignorable

    4

    0.1mm²

    0

    2

    2

    5

    5

    0.2mm²

    0

    0

    1

    2

    6

    0.3mm²

    0

    0

    0

    1

    7

    0.5mm²

    0

    0

    0

    0

    8

    0.7mm²

    0

    0

    0

    0

    9

    1.0mm²

    0

    0

    0

    0

    Immovable linear shape

    10




    No

    No

    The wire diameter is within 0.15mm, the length is within 1.5mm, and 2 wires are allowed

    The wire diameter is within 0.2mm, the length is within 1.5mm, and 5 wires are allowed

    Movable linear shape

    11




    No

    No

    No

    No



    Note:
    1. The above dimensions are the actual viewing dimensions after magnification. When measuring, use an eye gauge to measure or compare visually with the attached drawings;
    2. The edge of zone C refers to the area within 3mm of the extreme edge of the field of view.
