    • Commodity name: 0.66 inch Small OLED Display Panel 64x48 Dots, GDO0066B (EOL)

    INTRODUCTION

    GDO0066B is the graphic OLED display module made of 64x48 individual blue OLED pixels,diagonal is only 0.66 inch.The controller ic SSD1306, communicates via 8080 4-bit/8-bit parallel and I2C/4-wire serial interface,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed.

    Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.





    FEATURE

    ●  Self-luminous, no backlight is required.

    ●  Ultra low power consumption.

    ●   Wide operating temperature: -40℃~70℃

    ●  Come with helpful manual





  •

    PARAMETERS

    PART NUMBER GDO0066B
    OUTLINE DIMENSION(mm) 18.46x18.10x1.45
    VISUAL AREA(mm) 15.42x12.06
    ACTIVE AREA(mm) 13.42x10.06
    DISPLAY FORMAT 64x48
    INTERFACE I2C
    APPEARANCE White on Black
    VIEWING ANGLE RANGE Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree
    OPERATING TEMP. -40℃~70℃
    STORAGE TEMP. -40℃~80℃
    POWER SUPPLY 2.8V
    IC SSD1306
    TOUCH PANEL OPTIONAL NO
    SUNLIGHT READABLE NO

    * OLED Display Product List (Click it)

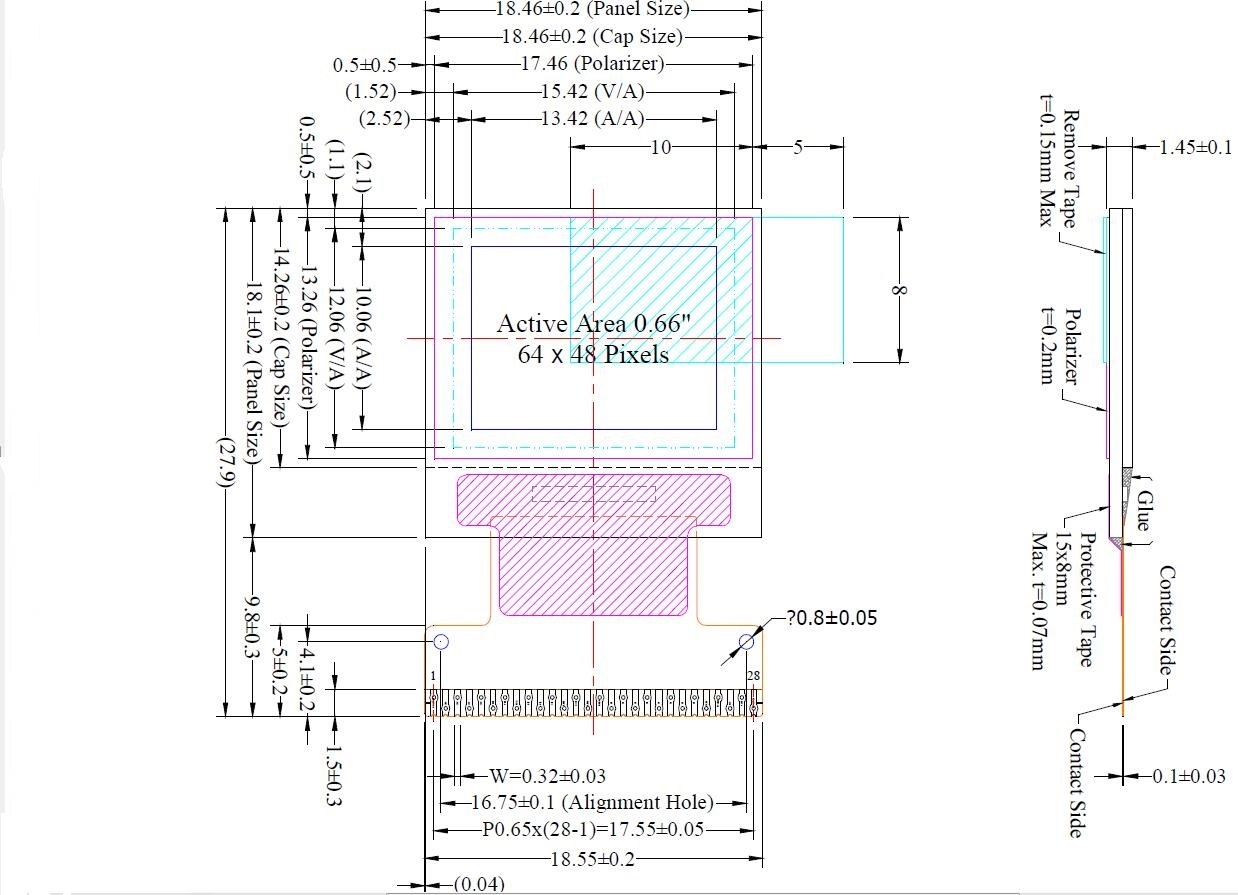

    DRAWING
