10.1 inch epaper display DES full color electronic paper large 2232x1680 eink display, GDEW101C01 (PRESALE)

Categroy:

Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 10.1 inch epaper display DES full color electronic paper large 2232x1680 eink display, GDEW101C01 (PRESALE)

    INTRODUCTION

    This is a DES (what is DES?) 10.1 inch paper display full color electronic paper large 2232x1680 eink display , and the display is capable to display images with 4096 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries.

    We could provide electronic paper display accessories for you.

    Datasheet is under the Datasheets & Files section.





    FEATURE

    ● Versatile. Use in portrait or landscape format

    ● It is manufactured using a new process: DES

    ● Contrast Ratio is higher than normal e-paper display

    ● Power consumption is lower than normal e-paper display

    ● With color filter, it supports a full color model with 4096 colors display.

    ● Wide working temperature range: -10℃~60℃

  • PARAMETERS

    PART NUMBER

    GDEW101C01

    SIZE

    10.1 inch

    TECHNOLOGY

    DES

    RESOLUTION

    2232x1680

    OUTLINE SIZE(mm)

    218.9x160x1.05

    ACTIVE SIZE(mm)

    203.2013x152.4096

    PIXEL PITCH(mm)

    0.09104x0.09072

    OPERATING TEMP.

    -10℃~60℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    40 Pin FPC

    MAX GRAYSCALE

    16

    COLOR

    Full Color

    INTERFACE

    Parallel

    FULL REFRESH(s)

    1

    POWER CONSUMPTION OF THE REFRESH(mW)

    285

    STANDBY POWER CONSUMPTION (mW)

    1.3

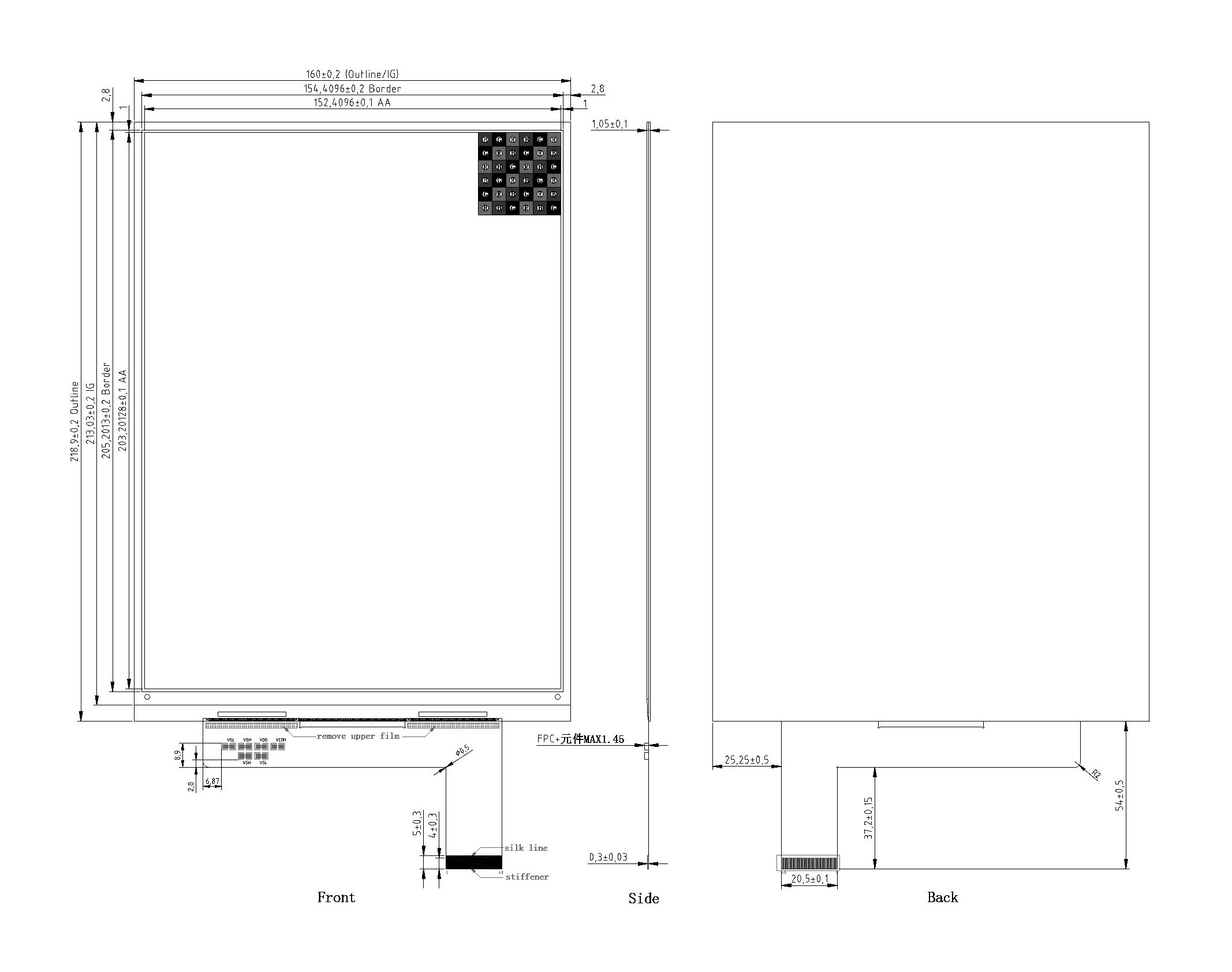

    DRAWING
