Large size 12.48 inch color red e-paper screen panel, GDEW1248Z95(EOL)

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: Large size 12.48 inch color red e-paper screen panel, GDEW1248Z95(EOL)

    INTRODUCTION



    This is a 12.48 inch color e ink display with two FPC interfaces, 1304x984 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

    This 12.48 inch e-ink display GDEW1248Z95 is perfect for low power devices powered by solar or batteries. or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

    We could provide front light, touch screen and other accessories for you.

    Sample code and datasheet are under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display.

    * This e-ink display module DOES NOT support partial updates




    FEATURE

    ● Versatile. Use in portrait or landscape format

    ● Bistable. (Will continue to display with no power source)

    ● I2C Signal Master Interface to read external temperature sensor

    ● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful





    DEVELOPMENT PLATFORM AVAILABEL

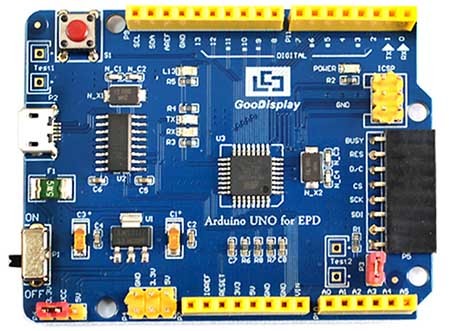

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

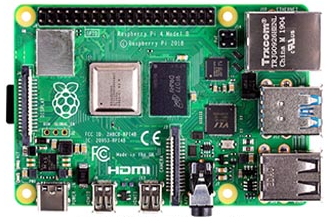

    STM32 Raspberry Pi









  • PARAMETERS

    PART NUMBER

    GDEW1248Z95

    SIZE

    12.48 inch

    TYPE

    Dot Matrix

    IC

    UC8179

    RESOLUTION

    1304x984

    OUTLINE SIZE(mm)

    261.5x211x1.18

    ACTIVE SIZE(mm)

    252.976x190.896

    PIXEL PITCH(mm)

    0.194x0.194

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    20

    POWER CONSUMPTION OF THE REFRESH(mW)

    82.5

    STANDBY POWER CONSUMPTION (mW)

    0.71

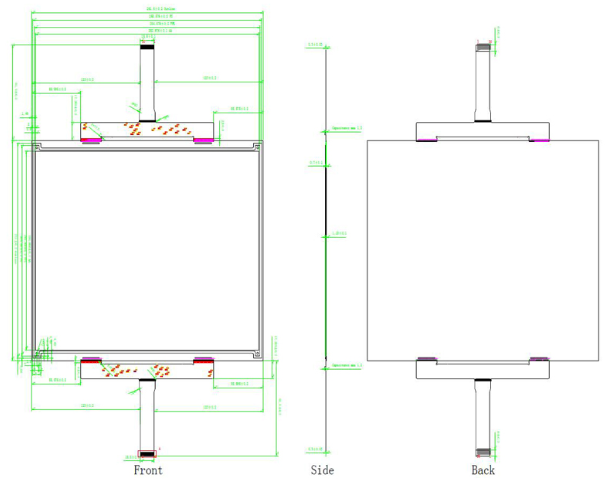

    DRAWING











  •
