7.5 inch colorful red e-paper display 880x528 resolution large screen, GDEH075Z90R(EOL)

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 7.5 inch colorful red e-paper display 880x528 resolution large screen, GDEH075Z90R(EOL)

    * This 7.5 inch colorful e-paper display is out of stock currently, you could choose the similar product: GDEY075Z08 (7.5 inch, 800x480 resolution, UC8179.)



    INTRODUCTION



    This is a 7.5 inch color epd display with 880x528 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

    This 7.5 inch e-ink display GDEH075Z90R is perfect for low power devices powered by solar or batteries. or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

    We could provide front light, touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This e-ink display module DOES NOT support partial updates




    FEATURE

    ● Versatile. Use in portrait or landscape format

    ● Bistable. (Will continue to display with no power source)

    ● I2C Signal Master Interface to read external temperature sensor

    ● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32









  • PARAMETERS

    PART NUMBER

    GDEH075Z90R

    SIZE

    7.5 inch

    TYPE

    Dot Matrix

    IC

    SSD1677

    RESOLUTION

    880x528

    OUTLINE SIZE(mm)

    170.2x111.2x1.25

    ACTIVE SIZE(mm)

    163.24x97.94

    PIXEL PITCH(mm)

    0.1855x0.1855

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    0℃~40℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    22

    POWER CONSUMPTION OF THE REFRESH(mW)

    40

    STANDBY POWER CONSUMPTION Pc(mW)

    0.006

    Related Product List >>

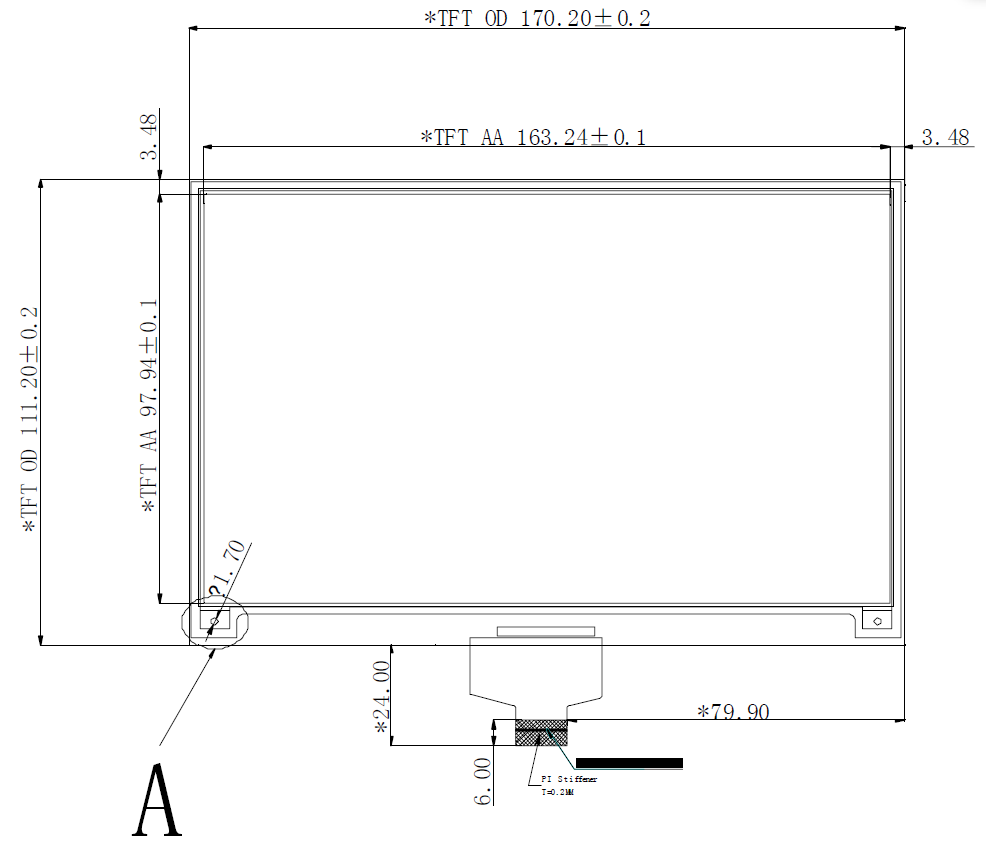

    DRAWING







  •
