3.71 inch Three colors red e-paper display module, GDEW0371Z80(EOL)

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 3.71 inch Three colors red e-paper display module, GDEW0371Z80(EOL)

    INTRODUCTION

    This is a 3.71 inch e-paper display with 416x240 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0371Z80 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, touch screen or other accessories, please contact us.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This e-ink display module DOES NOT support partial updates




    FEATURE

    ●  Versatile. Use in portrait or landscape format.

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.



    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEW0371Z80

    SIZE

    3.71 inch

    TYPE

    Dot Matrix

    IC

    UC8171

    RESOLUTION

    416x240

    OUTLINE SIZE(mm)

    92.99x53x1.18

    ACTIVE SIZE(mm)

    81.536x47.04

    PIXEL PITCH(mm)

    0.196x0.196

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    15

    POWER CONSUMPTION OF THE REFRESH(mW)

    26.4

    STANDBY POWER CONSUMPTION (mW)

    0.09

    3.71 Inch E-paper Display Related Products List >>

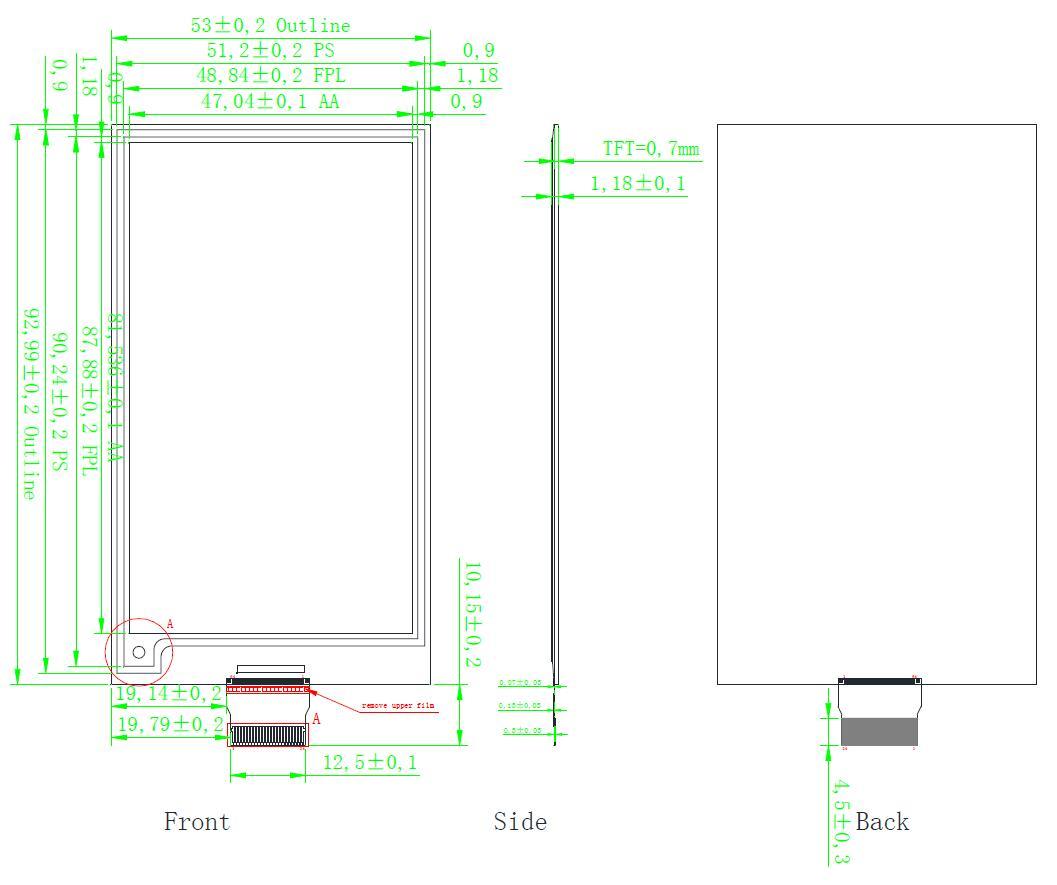

    DRAWING







  •
