2.7 inch color e-paper display three color electronic paper screen, GDEW027C44 (EOL)

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.7 inch color e-paper display three color electronic paper screen, GDEW027C44 (EOL)

    INTRODUCTION

    This is a 2.7 inch color e-paper display with 264x176 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027C44 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Sample code and datasheet are under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This e-paper display DOES NOT support partial updates




    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful.





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEW027C44

    TYPE

    Dot Matrix

    SIZE

    2.7 inch

    IC

    EK79652

    RESOLUTION

    264x176

    OUTLINE SIZE(mm)

    70.42x45.8x0.98

    ACTIVE SIZE(mm)

    57.288x38.192

    PIXEL PITCH(mm)

    0.217x0.217

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    16

    POWER CONSUMPTION OF THE REFRESH(mW)

    26.4

    STANDBY POWER CONSUMPTION (mW)

    0.0165

    FRONT LIGHT , TOUCH SCREEN

    Optional

    Related Product List >>

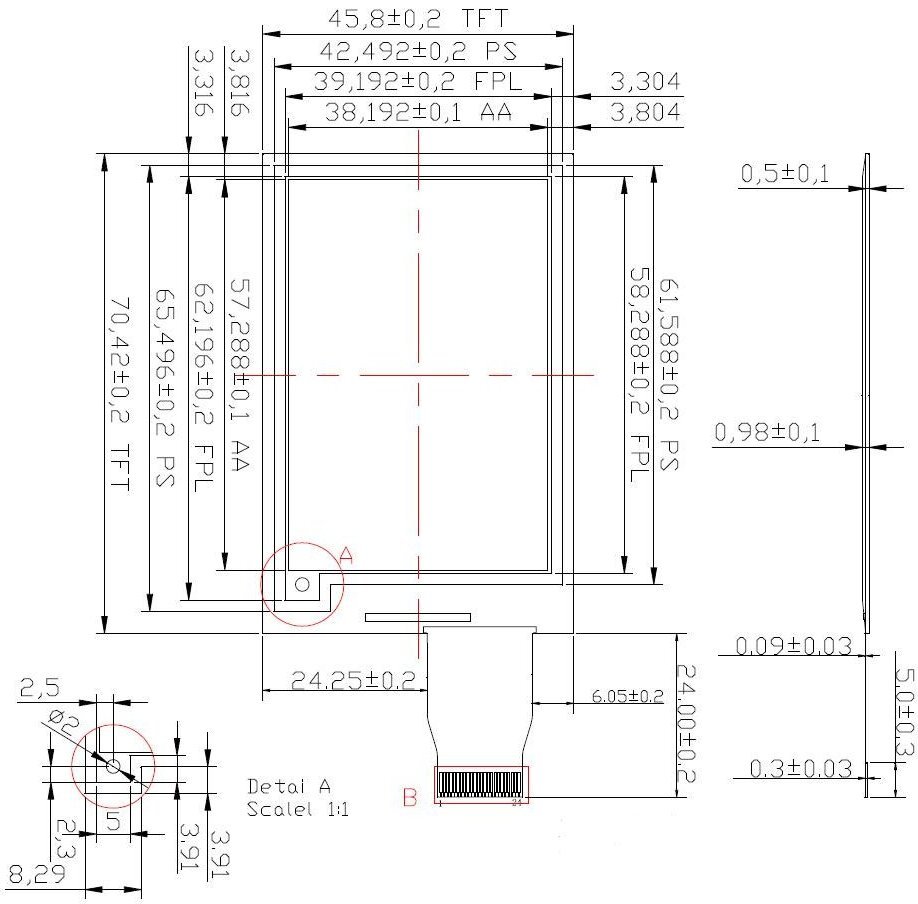

    DRAWING











  •
