4.2 inch color e-ink epd display for electronic price tag, GDEY042Z98

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 4.2 inch color e-ink epd display for electronic price tag, GDEY042Z98

    * This 4.2 inch color e-ink display is out of stock currently, you could choose the similar product: GDEQ042Z21 (4.2 inch, 400x300 resolution, UC8276.)



    INTRODUCTION



    This is a 4.2 inch color e-ink epd display with 400x300 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

    This 4.2 inch e-ink display GDEY042Z98 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

    We could provide front light, touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This e-ink display module DOES NOT support partial updates

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software




    FEATURE

    ● Versatile. Use in portrait or landscape format

    ● Bistable. (Will continue to display with no power source)

    ● I2C Signal Master Interface to read external temperature sensor

    ● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEY042Z98

    SIZE

    4.2 inch

    TYPE

    Dot Matrix

    IC

    SSD1683

    RESOLUTION

    400x300 (DPI:120)

    OUTLINE SIZE(mm)

    91x77x1.2

    ACTIVE SIZE(mm)

    84.8x63.6

    PIXEL PITCH(mm)

    0.212x0.212

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black,White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    16

    POWER CONSUMPTION OF THE REFRESH(mW)

    24.75

    STANDBY POWER CONSUMPTION (mW)

    0.0165

    Related Product List >>

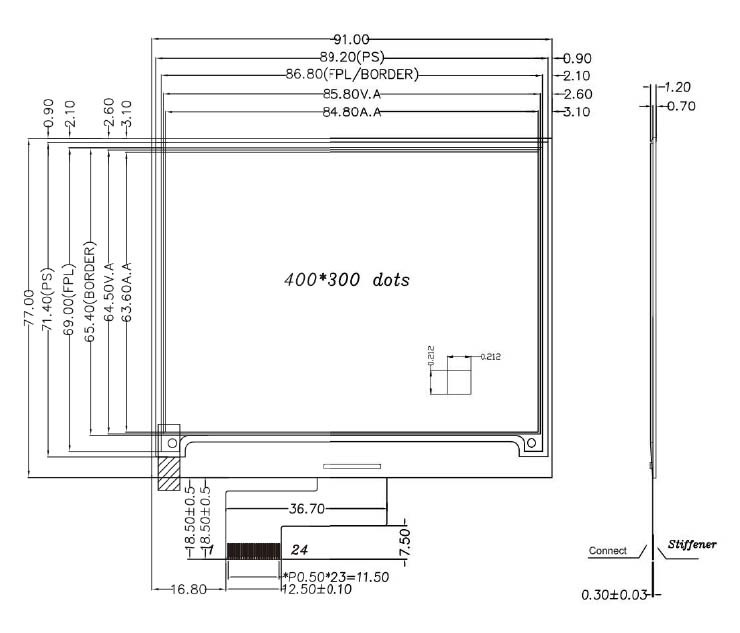

    DRAWING



  •
