2.9 inch colorful e-paper display, black, white and red, GDEH029Z92 (SOLD OUT)

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.9 inch colorful e-paper display, black, white and red, GDEH029Z92 (SOLD OUT)

    * This 2.9 inch colorful e-paper display is out of stock currently, you could choose the similar product: GDEY029Z94 (2.9 inch, 296x128 resolution, SSD1680A)

    INTRODUCTION

    This is a 2.9 inch color e ink e paper with 296x128 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEH029Z92 is perfect for low power devices powered by solar or batteries.

    We could provide Front light for you, if you need touch screen or other accessories, please contact us.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This e-ink display module DOES NOT support partial updates

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software




    FEATURE

    ●  Versatile. Use in portrait or landscape format.

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEH029Z92

    SIZE

    2.9 inch

    TYPE

    Dot Matrix

    IC

    SSD1680

    RESOLUTION

    296x128

    OUTLINE SIZE(mm)

    79x36.7x1.08

    ACTIVE SIZE(mm)

    66.9x29.06

    PIXEL PITCH(mm)

    0.227x0.226

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    0℃~40℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    13

    POWER CONSUMPTION OF THE REFRESH(mW)

    9.9

    STANDBY POWER CONSUMPTION (mW)

    0.0099

    FRONT LIGHT

    Optional

    2.9 Inch E-paper Display Related Products List >>

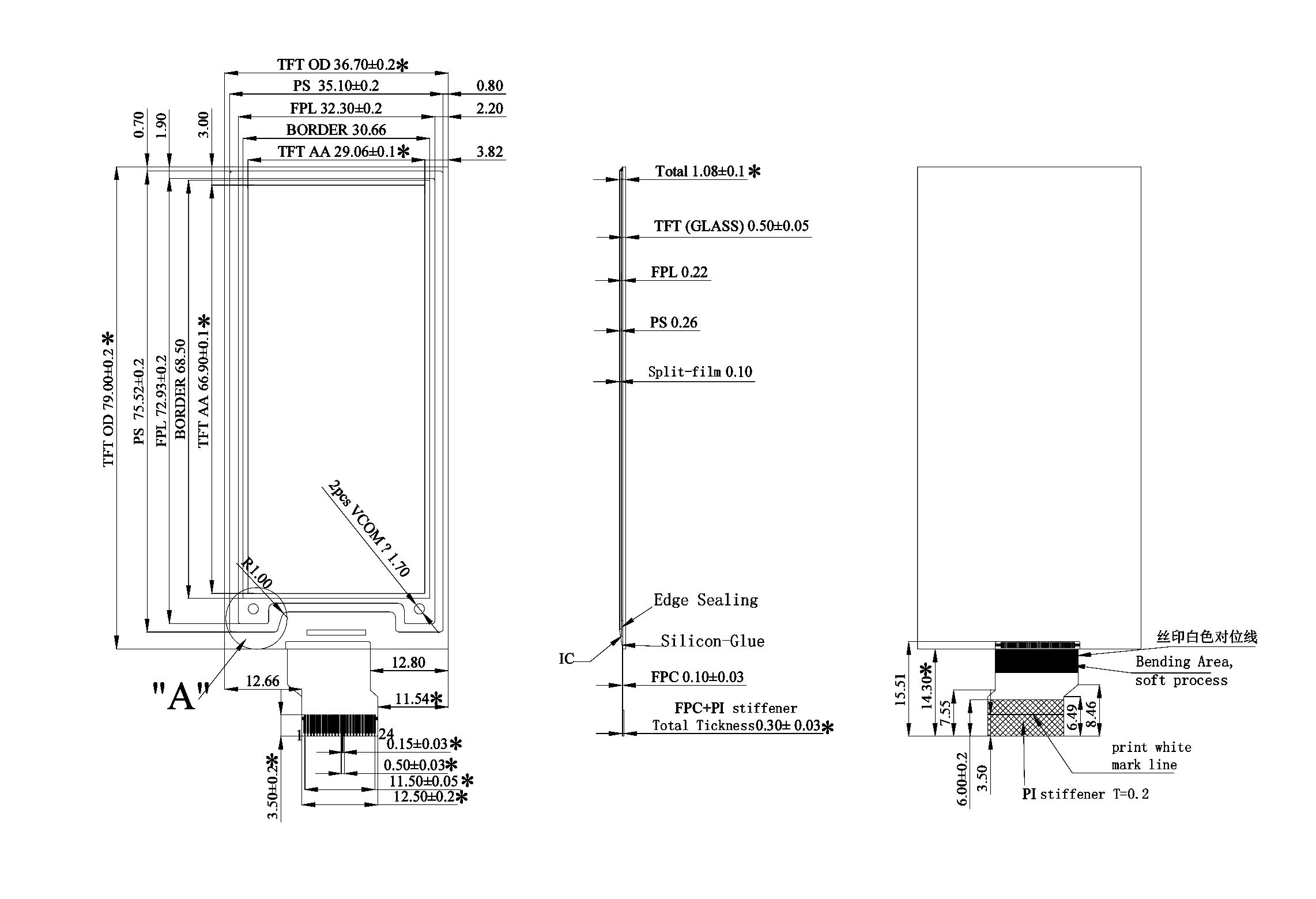

    DRAWING





  •
