2.7 inch three color red e-paper display , GDEH027Z70

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.7 inch three color red e-paper display , GDEH027Z70

    INTRODUCTION

    This is a 2.7 inch color e-paper display with 264x176 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEH027Z70 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This e-paper display DOES NOT support partial updates

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software




    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful.





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEH027Z70

    TYPE

    Dot Matrix

    SIZE

    2.7 inch

    IC

    EK79651AB

    RESOLUTION

    264x176

    OUTLINE SIZE(mm)

    70.42x45.8x0.95

    ACTIVE SIZE(mm)

    57.288x38.192

    PIXEL PITCH(mm)

    0.217x0.217

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    16

    POWER CONSUMPTION OF THE REFRESH(mW)

    8.58

    STANDBY POWER CONSUMPTION (mW)

    0.00066

    FRONT LIGHT , TOUCH SCREEN

    Optional

    Related Product List >>

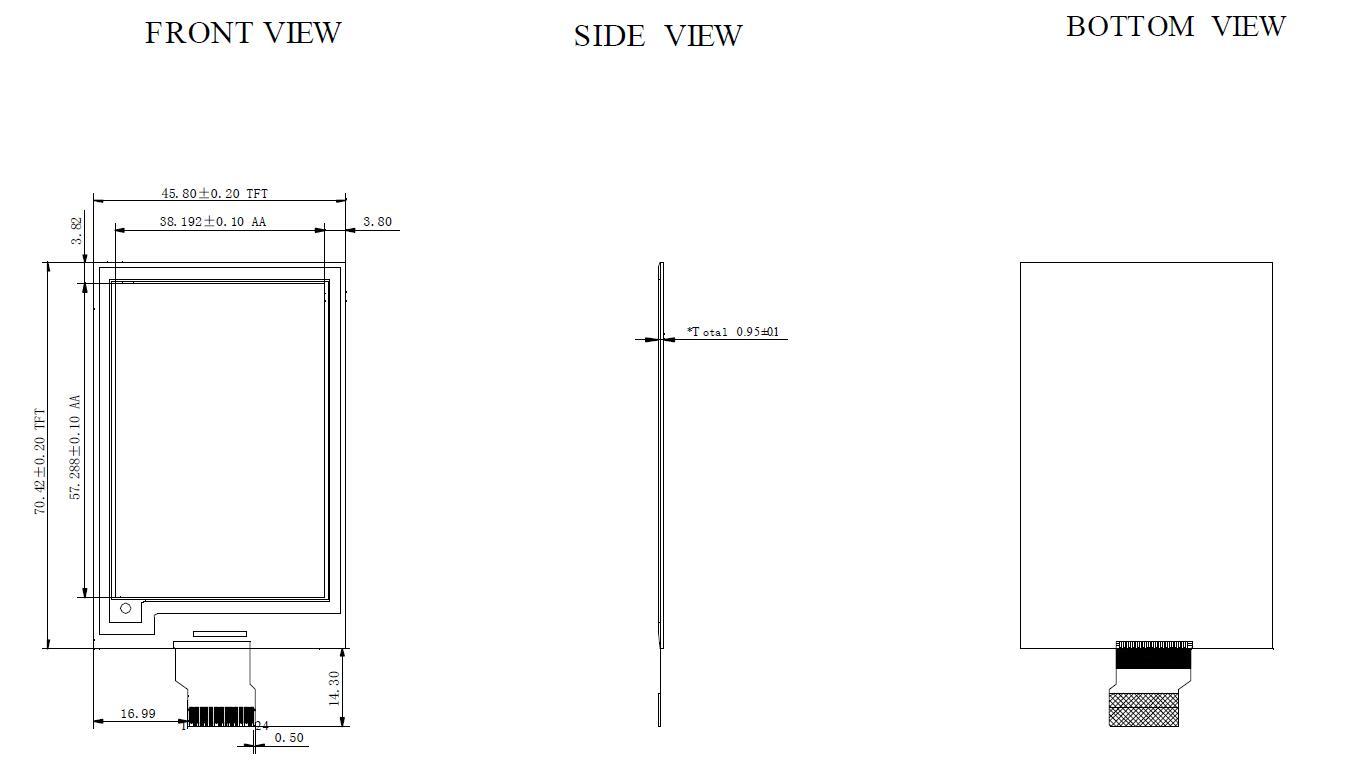

    DRAWING









  •
