1.54 inch tri-color Yellow e-paper display three colors, GDEM0154C90

Categroy:

Tri-Color E-Paper


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 1.54 inch tri-color Yellow e-paper display three colors, GDEM0154C90

    INTRODUCTION

    This is a 1.54 inch color e-paper display with 152x152 resolution, SPI interface, and the e-paper display is capable to display images with black, white and yellow content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the e paper display indefinitely. This e-paper display GDEM0154C90 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html


    * This e-ink display module DOES NOT support partial updates

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software



    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and yellow. Compared with monochrome electronic paper display, it is more beautiful





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

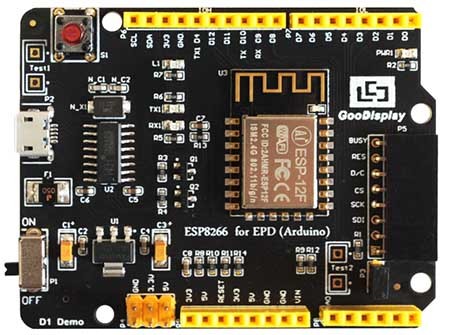

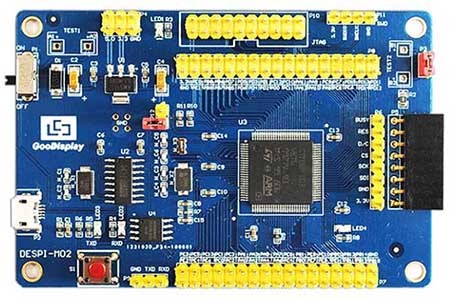

    STM32 Arduino UNO ESP8266

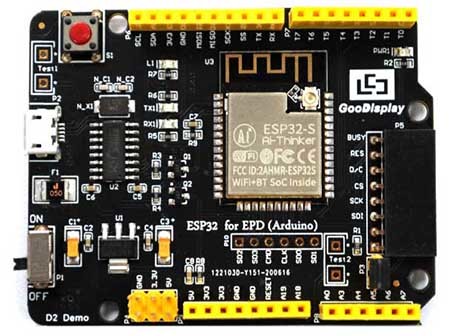

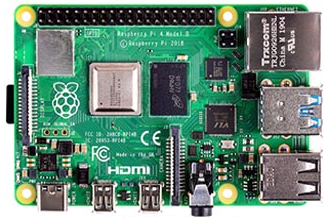

    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEM0154C90

    TYPE

    Dot Matrix

    SIZE

    1.54 inch

    IC

    SSD1680

    RESOLUTION

    152x152

    OUTLINE SIZE(mm)

    31.8x37.32x1.0

    ACTIVE SIZE(mm)

    27.512x27.512

    PIXEL PITCH(mm)

    0.181x0.181

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~40℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Yellow

    INTERFACE

    SPI

    FULL REFRESH(s)

    30

    POWER CONSUMPTION OF THE REFRESH(mW)

    8.4

    STANDBY POWER CONSUMPTION (mW)

    0.003

    FRONT LIGHT, TOUCH SCREEN

    Optional

    1.54 Inch E-paper Display Related Products List >>

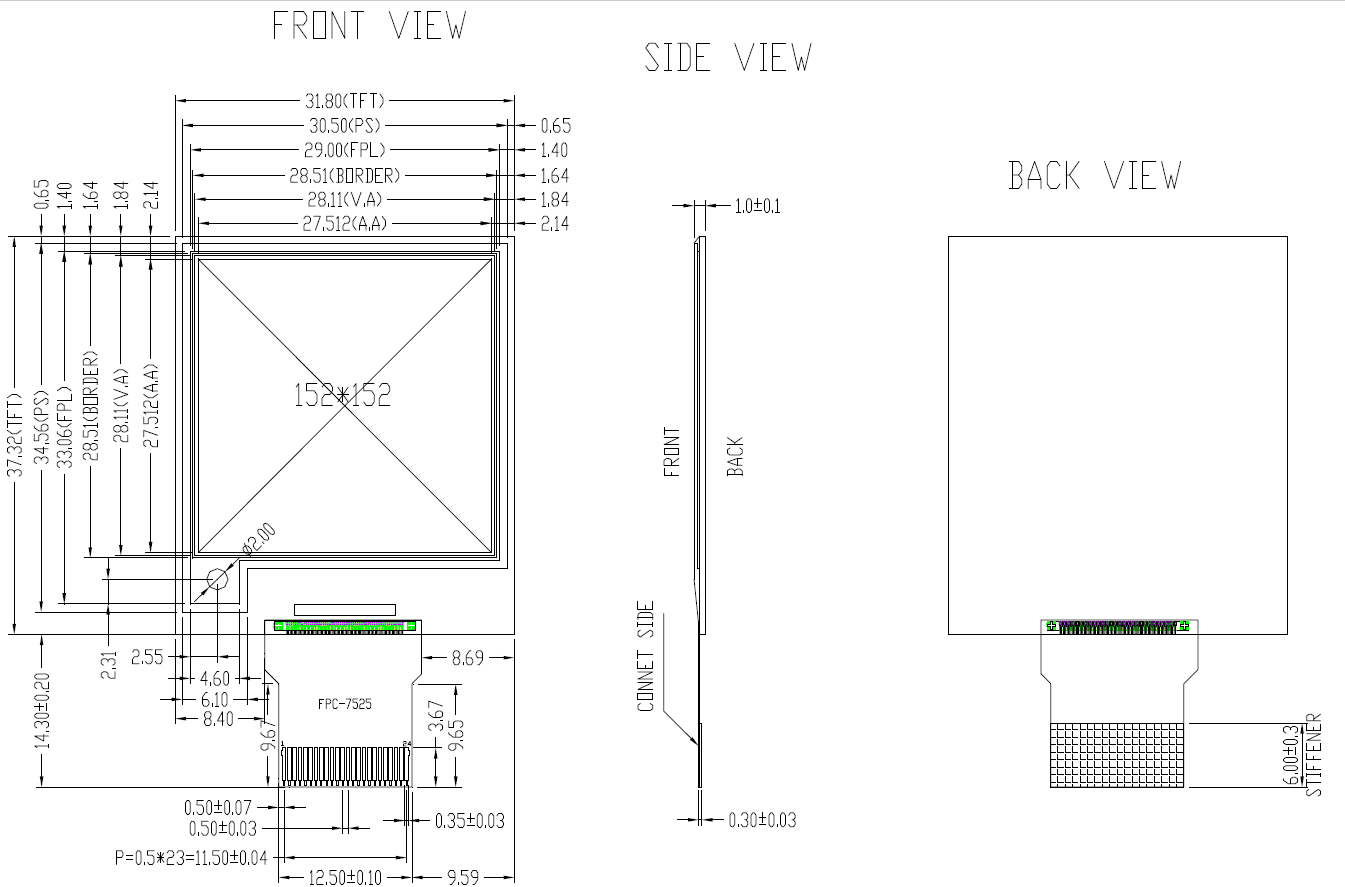

    DRAWING
