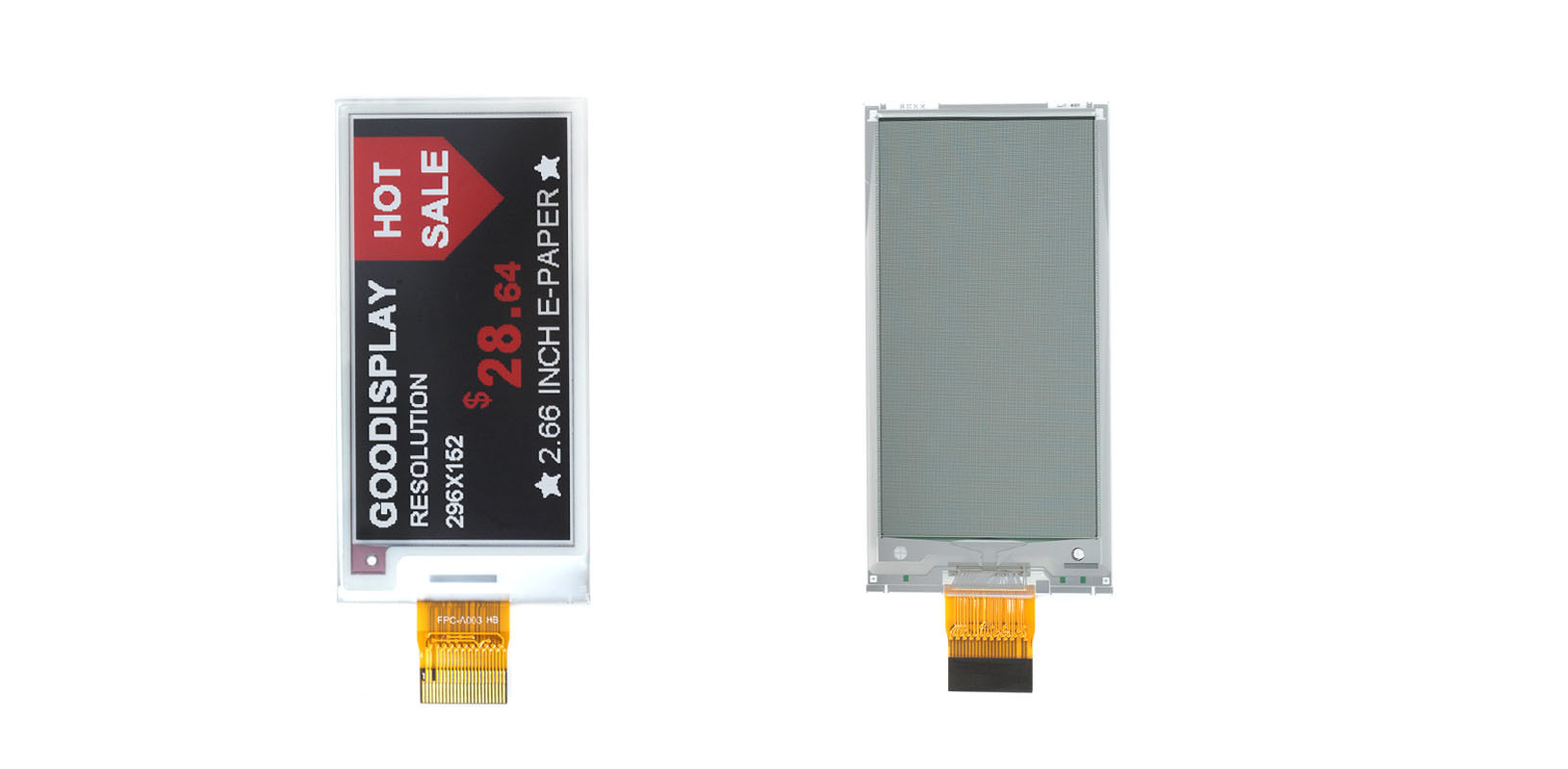

2.66 inch E-Paper Tri-color Display SSD1680 296x152 Small E Paper, GDEY0266Z90

Categroy:

Tri-Color E-Paper

This is a 2.66 inch e-paper display SSD1680 e paper screen with 296x152 resolution, SPI interface, and the display is capable to display images with black, white and red content.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.66 inch E-Paper Tri-color Display SSD1680 296x152 Small E Paper, GDEY0266Z90

    This is a 2.66 inch e-paper display SSD1680 e paper screen with 296x152 resolution, SPI interface, and the display is capable to display images with black, white and red content.

    COLOR 2.66 INCH E-PAPER

    Red, SSD1680, 296x152 Resolution, Paper-Like Displaying, Low Power





    INTRODUCTION

    This is a 2.66 inch e-paper display SSD1680 e paper screen with 296x152 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEY0266Z90 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-ink software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software

    * This 2.66 inch color e-ink display does not support partial refresh






    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display , it is more beautiful

    ●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays









    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  •

    PARAMETERS

    PART NUMBER

    GDEY0266Z90

    TYPE

    Dot Matrix

    SIZE

    2.66 inch

    IC

    SSD1680

    RESOLUTION

    296x152

    OUTLINE SIZE(mm)

    71.82x36.30x1.0

    ACTIVE SIZE(mm)

    60.088x30.704

    PIXEL PITCH(mm)

    0.203x0.202

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    4

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    12

    POWER CONSUMPTION OF THE REFRESH(mW)

    12.9

    STANDBY POWER CONSUMPTION (mW)

    0.003

    2.66 Inch E-paper Display Related Products List >>







    DRAWING



  •
