Mini E-paper Display 0.97 inch Electornic E-Paper Display Color SPI Screen, GDEW0097C50

Categroy:

Tri-Color E-Paper

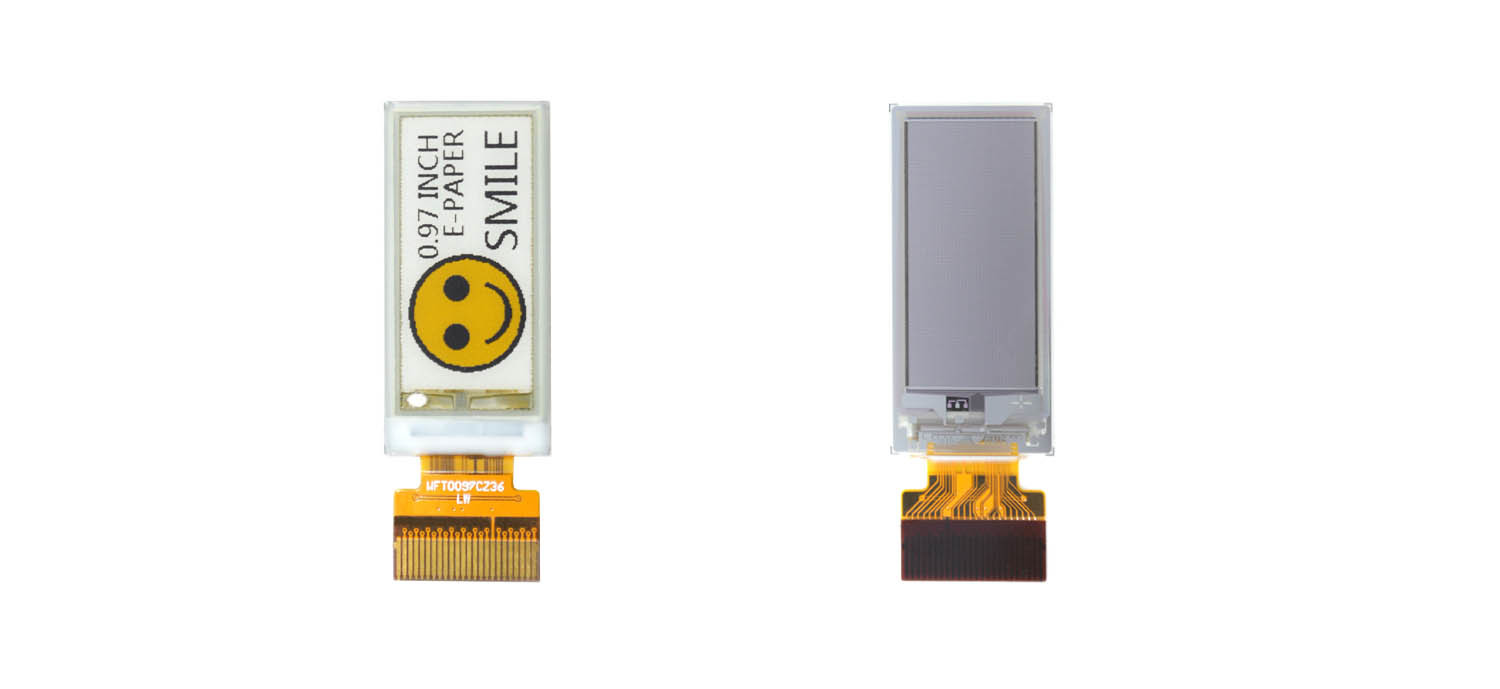

This is a mini electronic paper screen, 0.97 inch, color e-ink display, 184x88 resolution, SPI interface, and the display is capable to display images with black, white and yellow content.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: Mini E-paper Display 0.97 inch Electornic E-Paper Display Color SPI Screen, GDEW0097C50

    This is a mini electronic paper screen, 0.97 inch, color e-ink display, 184x88 resolution, SPI interface, and the display is capable to display images with black, white and yellow content.

    COLOR 0.97 INCH E-PAPER

    Yellow, JD79651, 184x88 Resolution, Paper-Like Displaying, Low Power





    INTRODUCTION

    This is a mini electronic paper screen, 0.97 inch, color e-ink display, 184x88 resolution, SPI interface, and the display is capable to display images with black, white and yellow content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink screen GDEW0097C50 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software







    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and yellow. Compared with monochrome electronic paper display, it is more beautiful

    ●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays








    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.



    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  •

    PARAMETERS

    PART NUMBER

    GDEW0097C50

    SIZE

    0.97 inch

    TYPE

    Dot Matrix

    IC

    JD79651

    RESOLUTION

    184x88

    OUTLINE SIZE(mm)

    30.15x14.3x0.98

    ACTIVE SIZE(mm)

    22.264x10.648

    PIXEL PITCH(mm)

    0.121x0.121

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black,White, Yellow

    INTERFACE

    SPI

    FULL REFRESH(s)

    22

    POWER CONSUMPTION OF THE REFRESH(mW)

    26.4

    STANDBY POWER CONSUMPTION (mW)

    0.0165

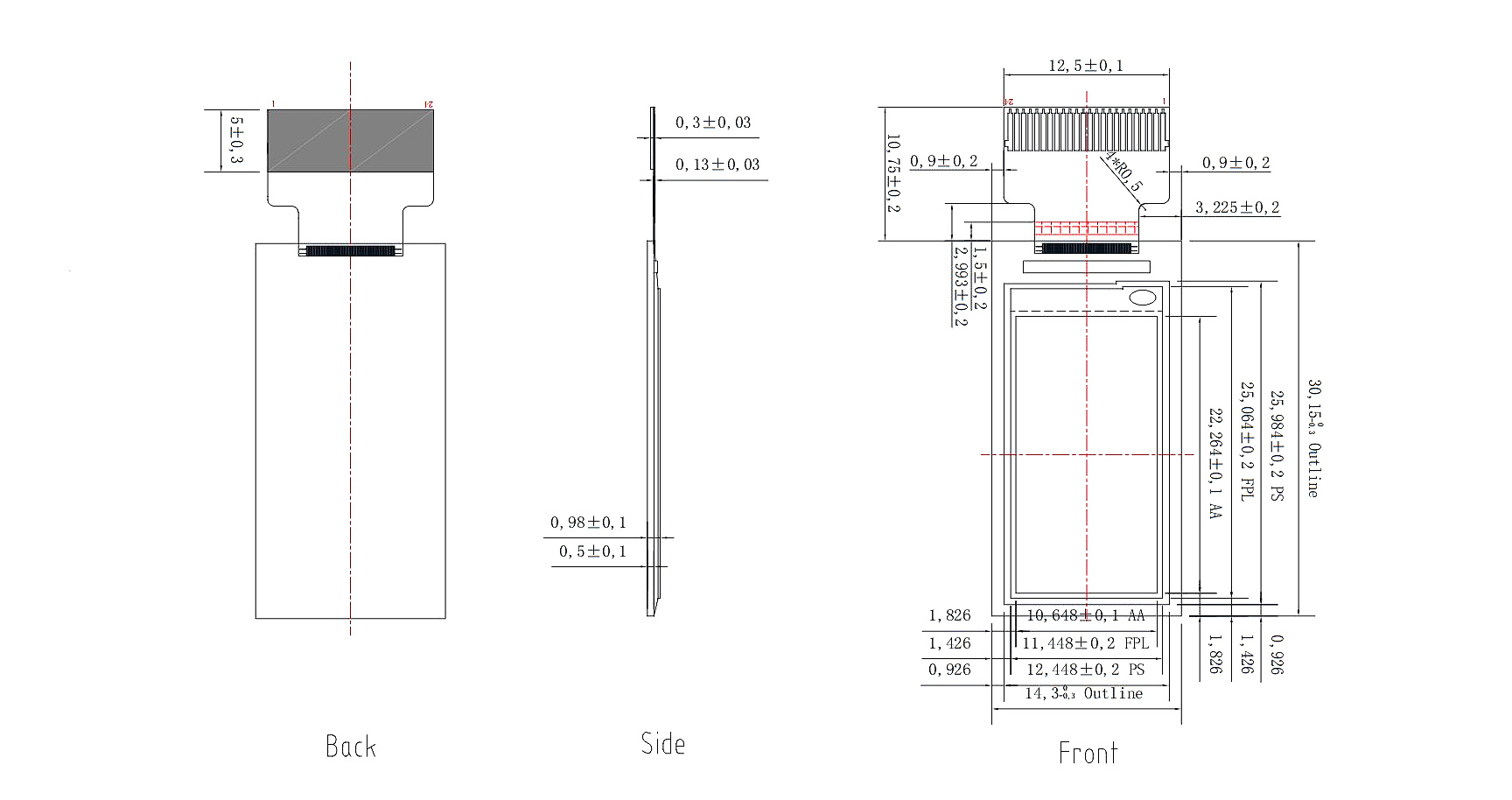

    DRAWING
